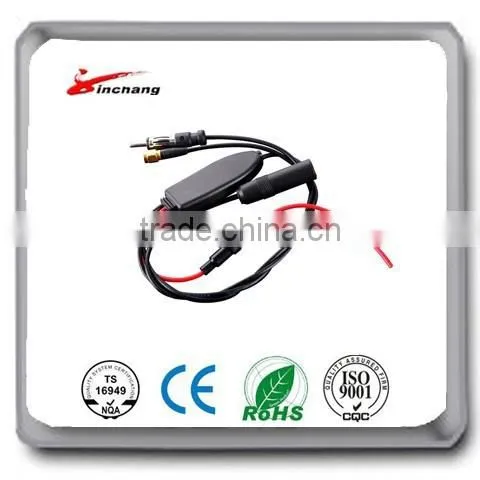

Help Center(Manufactory) High Quality DAB Antenna With SMB Right Angle Female Connector
Related Products
-
Waterproof External GPS Antenna With 3m RG174 CableUS$ 2 - 5MOQ: 200 Pieces -
GSM Antenna With 3 m Cable SMA Straight Male ConnectorUS$ 1 - 5MOQ: 250 Pieces
-
(Manufactory) High Quality Free Sample1575.42 MHz GPS AntennaUS$ 2 - 4MOQ: 100 Pieces
-
(Manufactory) High Quality Low Price GPS Internal Antenna for Gps Tracking ChipUS$ 2 - 4MOQ: 10 Pieces
-
(Manufactory) High Gain Loe Noise GPS Car/Auto/Vehicle/Navigation Passive AntennaUS$ 2 - 5MOQ: 100 Pieces
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: jinchang
- Model Number: JCD714
- Radome Material: ABS
- type: car radio antenna amplifier
1. Electrical Characteristics
1.1 GSM Antenna
Form 1
No. |
Item |
Specifications |
1 |
Frequency(MHz) |
525~1605KHz/88~108MHz/174~237MHz
|
2 |
V.S.W.R(in BW ) |
<2.0:1 |
3 |
Gain(Zenith) |
AM/FM:10±2dB DAB:20±2dB |
4 |
Wave Band |
AM/FM/DAB BⅢ |
5 |
Impedance |
50 Ω |
6 |
Noise Figure |
<3.0 |
7 |
Supply Voltage |
9~24V DC |
8 |
Current Consumption |
26~28mA |
1.2 Mechanical
Form 2
No. |
Item |
Specification |
1 |
Cable | RG174 |
2 |
Connector |
Car Antenna Plug&Socket MCX or others |
3 |
Fus |
500mA |
4 |
PCB |
FR4 |
5 |
Plastic Housing |
ABS |
5. Environmental Specifications
Operating Temperature -40°C~+85°C
Relative Humidity Up to 75%
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
Advantages:
1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.
3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
