Home > Electrical & Electronics > Antenna > Communication Antenna > (Manufactory) 2400-2483MHz Directional Panel Antenna

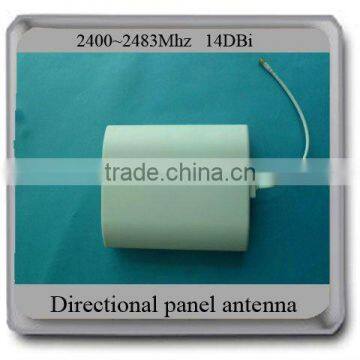

(Manufactory) 2400-2483MHz Directional Panel Antenna
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JIASHANJINCHANG
Model Number:
JCW-2400-14B
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
(Manufactory) 2300-2700MHz Panel AntennaNegotiableMOQ: 10 Pieces -
(Manufactory) 2400-2483MHz 18dB Panel AntennaNegotiableMOQ: 10 Pieces
-
(Manufactory) 5725-5850MHz Panel AntennaNegotiableMOQ: 10 Pieces
-
(Manufactory) 800/900/1800/2100/2400MHz Directional Panel AntennaNegotiableMOQ: 10 Pieces
-
(Manufactory) 800/900/1800/2100/2400MHz Directional 17 Dbi Panel AntennaNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
JIASHANJINCHANG
Model Number
JCW-2400-14B
Specifications
Size: 225*195*47mmFrequency: 2400-2483MHz
Gain:14dBi
Connector:SMA Male or others
High Gain, Lower VSWR, Strongly Anti-
Directional Panel Antenna
Features
Good appearance
Durable, corrosion resistance
Full day for working ,waterproof
Optimized dimension
High Gain, Lower VSWR, Strongly Anti-interference
Application
2.4GHZ WLAN System
2.4GHZ ISM application
WIFI Telecommunication system
Model NO |
JCW-2400-14B |
Electric Specification | |
Frequency rang-MHz |
2400-2483 |
Bandwidth -MHz |
83 |
Gain -dBi |
14 |
beam width -° |
H 65 V 25 |
VSWR |
≤1.5 |
Input Impedance-Ω |
50 |
Polarization |
Vertical |
Max power -W |
100 |
Lightning protection |
DC ground |
Connector model |
SMA Male or others |
Mechanical Specification | |
Size -mm |
225*195*47 |
Antenna weight-kg |
0.45 |
Working Temperature -°c |
-40~60 |
Rated Wind Velocity-m/s |
60 |
Radome color |
white |
Mounting way |
hold in the pole |
