Specifications
GPS GSM WiFi AntennaFrequency: 1575.42Mhz; 900/1800Mhz
LNA gain: 30dB
Certification:ROSH, CE, ISO9001:200
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: GPS GSM Antenna
- Model Number: JCE058
- Size: D50x48mm
- Center frequency: 1575.42+3or-3MHz
- Gsm frequency1: 824~894MHZ/1710~1990MHZ
- Gsm frequency2: 880~960MHZ/1710~1990MHZ
- DC Voltage: 2.2~5v
- antenna: Gps Gsm Wifi Antenna
Electrical Characteristics
1.1 Dielectric Antenna
Form 1
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
Center Frequency |
1575.42 MHz |
±3 MHz |
2 |
Band Width |
±5 MHz |
±1 MHz |
3 |
V.S.W.R(in BW) |
1.5:1 |
— |
4 |
Gain(Zenith) |
3 dB |
±0.5 dB |
5 |
Polarization |
RHCP |
— |
6 |
Impedance |
50 Ω |
— |
1.2 LNA/Filter
Form 2
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
LNA Gain |
28±2 dB |
±2.5 dB |
2 |
Noise Figure |
1.5 dB |
— |
3 |
Filter Out Band Attenuation |
12dB Min f0+50MHz 16dB Min f0-50MHz |
±1.0 dB |
4 |
DC Voltage |
2.2~5 V |
|
5 |
DC Current |
5~15 mA |
|
1.3 GSM Antenna
Form 3
No. |
Item |
Specifications |
1 |
Frequency |
824~960 MHz/1710~1990 MHz/1920 – 2170MHz |
2 |
V.S.W.R(5m) |
≤2.0:1 |
3 |
Gain(Zenith) |
2 dBi |
4 |
Impedance |
50 Ω |
1.4 WiFi Antenna
Form 4
No. |
Item |
Specifications |
1 |
Frequency |
2400~2500 MHz |
2 |
V.S.W.R(5m) |
≤2.0:1 |
3 |
Gain(Zenith) |
3 dBi |
4 |
Impedance |
50 Ω |

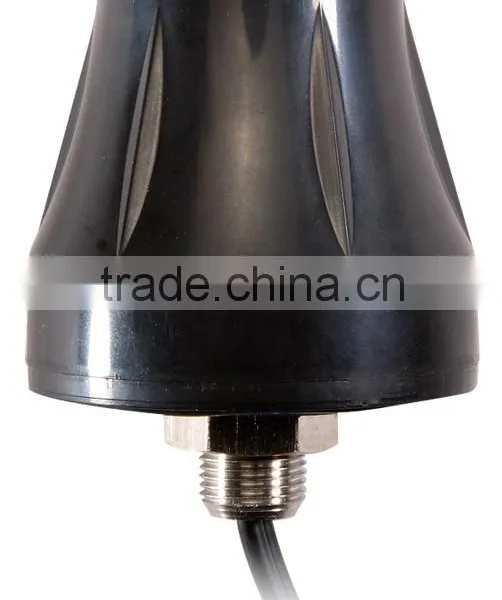

1.5 Mechanical
Form 5
No. |
Item |
Specification |
1 |
Cable |
RG174 3m/5m or others |
2 |
Connector |
SMA/SMB/MCX or others |
3 |
Plastic Housing |
Black |
4 |
Mounting |
Screw |
Packaging & Delivery
| Packaging Details: | 70*32*15.5CM |
|---|---|
| Delivery Detail: | 5-7 days |
1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.
3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
