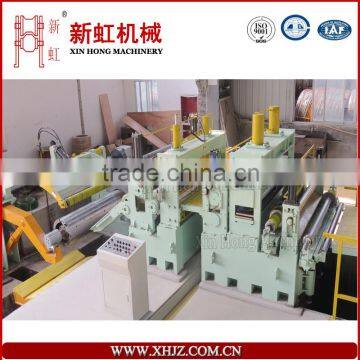

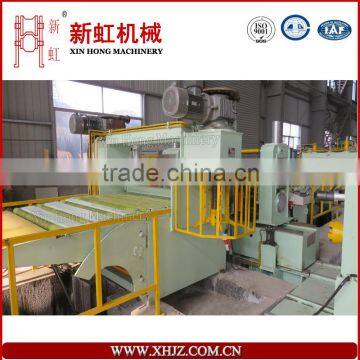

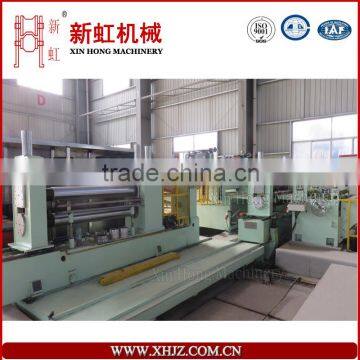

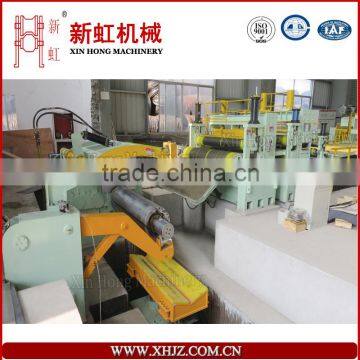

High Precision Color Coated Steel Coil slitting machine for sale
- High quality machines and tooling to achieve high precision slitting quality.
- No marks no scratches on the material.
- High speed: max up to 250m/min
Features:
- Low operating costs
- High automation level to reduce non-productive times
- Flexibility from customer-specific arrangement and design
- Fully automatic strip threading systems
- Fully automatic coil peeler for over-payoff and under-payoff uncoilers
- Double slitters(optional), one slitter in production, the other in tool setting, interchanged after the production is finished, minimize the time for tool changing
- Fully automatic adjustment of edge scrap guiding, automatic scraps discharge
- Automatic clamping and unclamping of the cutting tools on the knife arbor
- Automatic strip strand transfer systems
- Special braking units for strips with high surface finish(optional)
Parameters Of This Line
Description |
Technical Parameters |
|||
|
Raw Material Parameters |
Raw material |
Color Coated Steel |
||
Thickness |
0.3~3.0mm |
|||
Width |
400~1600mm |
|||
Coil OD |
≤Φ1900mm |
|||
Coil ID |
Φ480mm~Φ520mm |
|||
Coil Weight(Max) |
20Tons |
|||
| ||||
|
Finished Product Parameters |
Coil ID |
Φ508mm |
||
Coil OD |
≤1900mm |
|||
Coil Weight(Max) |
Max:20T |
|||
No. of Slit Strip |
Thickness: 3.0mm≤10 strips |
|||
Accuracy of Slit width |
±0.05mm |
|||
Tolerance of Burr |
≤0.05mm |
|||
Minimum Slit Width |
25mm |
|||
Scraps width range |
2~5mm |
|||
|
|
|
|
|
Parameters Of Other Configurations
Model |
TX 0.14-1.5 |
TX 0.3-2.5 |
TX 0.3-3.0 |
TX 0.5-4.0 |
TX 1.0-6.0 |
Thickness(mm) |
0.14-1.5 |
0.3-2.5 |
0.3-3.0 |
0.5-4.0 |
1.0-6.0 |
Width(mm) |
500-1850 |
500-1850 |
500-1850 |
500-2000 |
500-2000 |
Line Speed(m/min) |
250 |
230 |
200 |
180 |
150 |
Coil Weight(ton) |
10,15,20 |
10,15,20 |
10,15,20 |
20,35 |
20,35 |
No. of Slit Strip |
35 |
30 |
20 |
15 |
10 |
Slitting Accuracy(mm/m) |
<±0.10 |
<±0.10 |
<±0.10 |
<±0.2 |
<±0.2 |
Tolerance of Burr |
<5% |
<5% |
<5% |
<5% |
<5% |
Recoiling Misalignment(mm) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
Recoiling Looseness(mm) |
≤2 |
≤2 |
≤2 |
≤2 |
≤2 |
