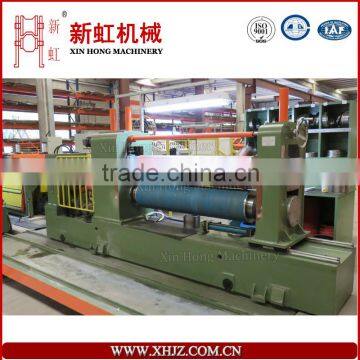

Name: High Speed stainless steel sheet cutting machine,steel coil slitting machine,steel coil slitting lineeel Slitting Line
lHigh quality machines and tooling to achieve high precision slitting quality.
l No marks no scratches on the material.
l High speed: max up to 250m/min.
l Brand electric, hydraulic, pneumatic control system and components.
Features:
l Low operating costs
l High automation level to reduce non-productive times
l Flexibility from customer-specific arrangement and design
l Fully automatic strip threading systems
l Fully automatic coil peeler for over-payoff and under-payoff uncoilers
l Double slitters(optional), one slitter in production, the other in tool setting, interchanged after the production is finished, minimize the time for tool changing
l Fully automatic adjustment of edge scrap guiding, automatic scraps discharge
l Automatic clamping and unclamping of the cutting tools on the knife arbor
l Automatic strip strand transfer systems
l Special braking units for strips with high surface finish(optional)
Parameters Of This Line
Description |
Technical Parameters |
|||
|
Raw Material Parameters |
Raw material |
Stainless Steel |
||
Thickness |
0.3~3.0mm |
|||
Width |
400~1600mm |
|||
Coil OD |
≤Φ1900mm |
|||
Coil ID |
Φ480mm~Φ520mm |
|||
Coil Weight(Max) |
20T |
|||
| ||||
|
Finished Product Parameters |
Coil ID |
Φ508mm |
||
Coil OD |
≤1900mm |
|||
Coil Weight(Max) |
Max:20T |
|||
No. of Slit Strip |
Thickness: 3.0mm≤10 strips |
|||
Accuracy of Slit width |
±0.05mm |
|||
Tolerance of Burr |
≤0.05mm |
|||
Minimum Slit Width |
25mm |
|||
Scraps width range |
2~5mm |
|||
Parameters Of Other Configurations
Model |
TX 0.14-1.5 |
TX 0.3-2.5 |
TX 0.3-3.0 |
TX 0.5-4.0 |
TX 1.0-6.0 |
Thickness(mm) |
0.14-1.5 |
0.3-2.5 |
0.3-3.0 |
0.5-4.0 |
1.0-6.0 |
Width(mm) |
500-1850 |
500-1850 |
500-1850 |
500-2000 |
500-2000 |
Line Speed(m/min) |
250 |
230 |
200 |
180 |
150 |
Coil Weight(ton) |
10,15,20 |
10,15,20 |
10,15,20 |
20,35 |
20,35 |
No. of Slit Strip |
35 |
30 |
20 |
15 |
10 |
Slitting Accuracy(mm/m) |
<±0.10 |
<±0.10 |
<±0.10 |
<±0.2 |
<±0.2 |
Tolerance of Burr |
<5% |
<5% |
<5% |
<5% |
<5% |
Recoiling Misalignment(mm) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
Recoiling Looseness(mm) |
≤2 |
≤2 |
≤2 |
≤2 |
≤2 |

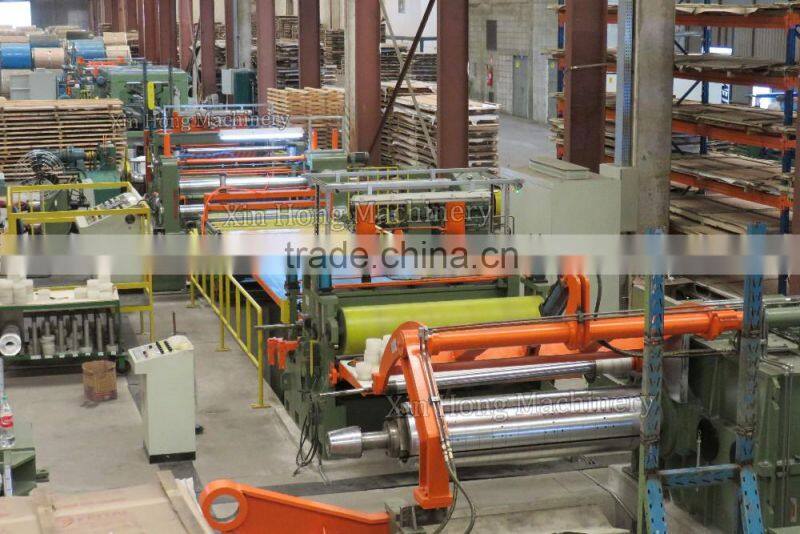

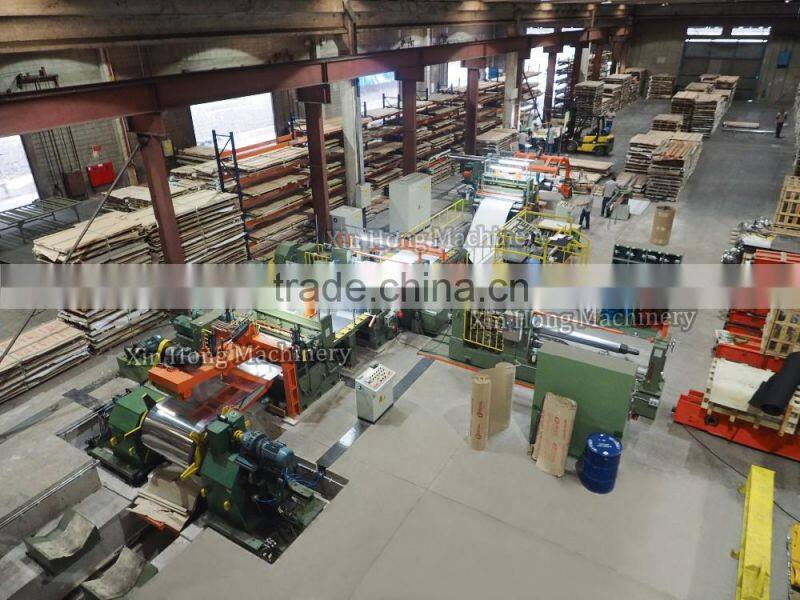

slitting line

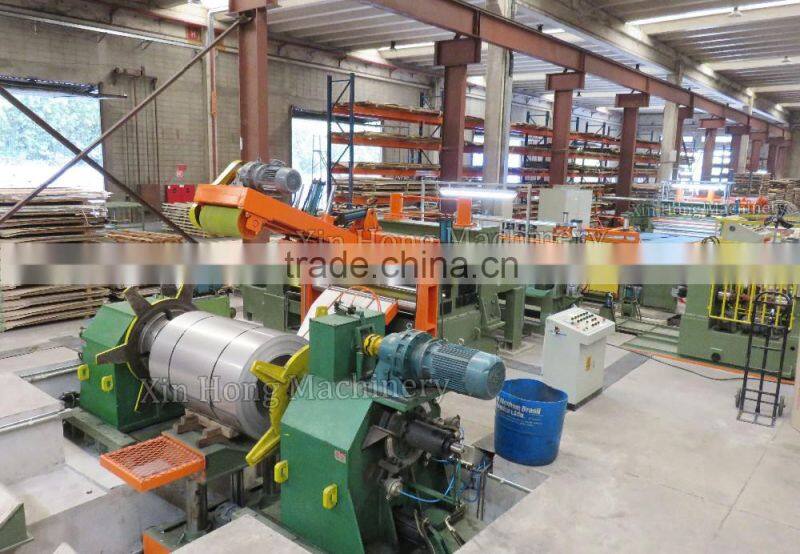

decoiler

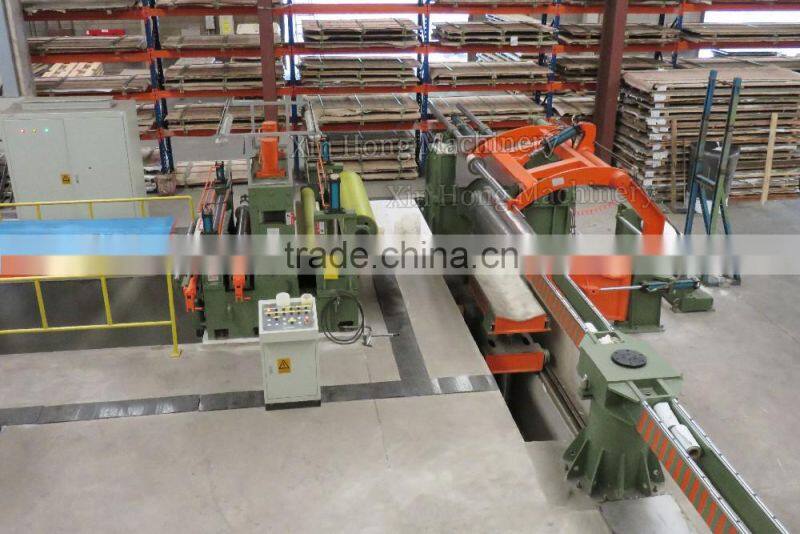

slitter

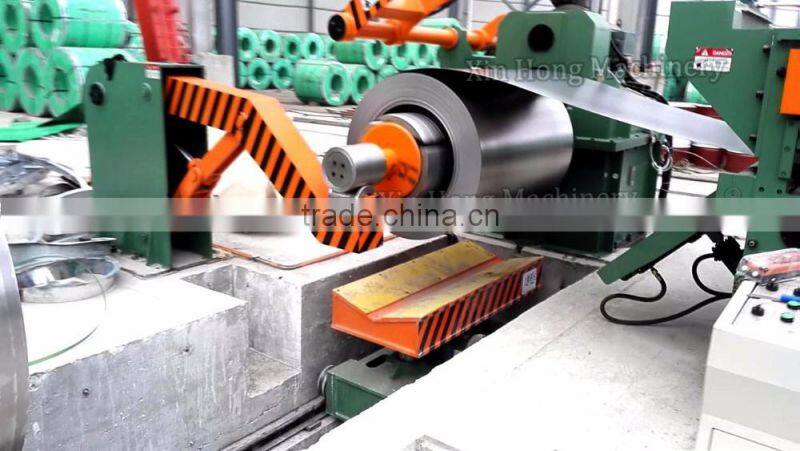

recoiler
Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.
1. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, China. It is about 55KM from Guangzhou Baiyun Airport, by car takes about one hour. We will pick you up at the airport.
2. Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the end. Each part of the machine components are strictly processed by advanced machine tools and experienced staffs. Every machine element is checked and inspected by our QC. Each machine before delivery shall test run and be well checked.
3. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
4. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
5. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand components
6. Q: Do you have a warranty on your machines?
A: we guarantee one year warranty. At the same time, we provide lifelong technical support.
7. Q: Once a machine arrives at our factory what happens then?
A: We will send you technician or engineer who will assist the commissioning and installation of your machine, with training for your staff.
8. Q: What kind of controls do you use on your machines?
A: Yaskawa, Omron, Delta, Schneider, Siemens, and Mitsubishi and etc.
9. Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 185 days from date of order.
