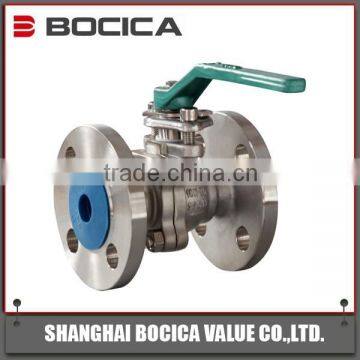

Help CenterAPI Cast Steel Floating Ball Valve
US$ 50 - 1,000
MOQ: 10 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Cast Steel Floating Flanged Ball ValveUS$ 50 - 1,000MOQ: 100 Sets -
API Forged Steel Floating Flanged Ball ValveUS$ 50 - 1,000MOQ: 1 Set
-
ANSI Valve Ball Valve for Industrial UseUS$ 10 - 20MOQ: 100 Pieces
-
Wholesale ANSI Standard Flange End SS304 Ball ValveUS$ 1 - 20MOQ: 10 Pieces
-
3 Pieces Forged Steel Ball ValveUS$ 10 - 20MOQ: 50 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Manual
Material
Casting
Temperature of Media
Medium Temperature
Media
Gas
Port Size
DN15-DN300
Place of Origin
China
Model Number
BV-001
Brand Name
BOCICA
Specifications
Applicable Temperature: -196~550CApplicable Pressure: 150-600
Applicable Medium: Water,Steam,Petroleum,LPG,Natural gas etc.
Application Specification
1. Flange dimensions to ANSI B16.5
2. Face to face dimensions to ANSI B16.10
3. Design and Manufacture in accordance with API 6D
4. Fire safe to API 607/API SPEC 6FA & BS6755 PART 2
5. Valve tested to API 598
Part Material
| NO. | Parts Name | Material: Stainless Steel | Material: Cast Steel |
1 |
Body | A351 CF8 | A216 WCB |
| 2 | Stud | A193 B8 | A193 B7 |
| 3 | Nut | A194 2H | A194 2H |
| 4 | Gasket | PTFE | PTFE |
| 5 | Valve cover | A351 CF8 | A216 WCB |
| 6 | Ball | A182 F304 | A182 F304 |
| 7 | Seat | PTFE | PTFE |
| 8 | Stem | A182 F6a | A182 F6a |
| 9 | Packing | A182 F304 | PTFE |
| 10 | Gland | WCB | WCB |
| 11 | Handle | A351 CF8 | A216 WCB |
Products Performance Specification
| Performance Specification |
Pressure Class | ||||
| 150 | 300 | 400 | 600 | ||
| Testing Pressure (Mpa) | Shell test | 2.93 | 7.58 | 10.0 | 15.0 |
| Seal test | 2.07 | 5.52 | 7.31 | 11.03 | |
| Air test | 0.6Mpa | ||||
| Applicable Temperature | -196C~550C(Different materials for different operating temperature) | ||||
| Applicable Medium | Ordinary type | Water,Steam,Petroleum,LPG,Natural Gas etc. | |||
| Antisulphur type | Natural gas containing H2S and CO, Petroleum etc. |
||||
