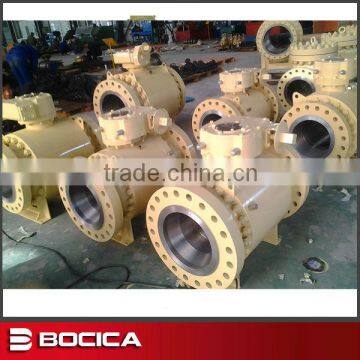

Help Center3 Pieces Forged Steel Ball Valve
Related Products
-
105 Three Piece Forged/cast Steel Ball Valve/DIN Ball ValveUS$ 10 - 20MOQ: 15 Pieces -
Two Pieces Floating Ball Valve With Worm Gear OperationUS$ 10 - 20MOQ: 50 Pieces
-
Trunion Mounted Ball ValveUS$ 10 - 20MOQ: 50 Pieces
-
JIS Floating Cast Iron Manuel Ball ValveUS$ 10 - 20MOQ: 50 Pieces
-
Italian Thin Type Flanged End Ball ValveUS$ 10 - 20MOQ: 50 Pieces
Specifications
Blow-out Proof StemAnti-Static Device for Ball-Stem-Body
Pressure Balance Hole in Ball Slot
Specifications
ISO-direct mounting pad
1)ISO and CE certificate proved .
2)With full port,flange end PN10-40 (ISO-direct mounting pad)
ISO-direct mounting padstainless steel ball valve
1)ISO and CE certificate proved .
2)With full port,flange end PN10-40 (ISO-direct mounting pad)
1. FEATURE
Blow-out Proof Stem
Anti-Static Device for Ball-Stem-Body
Pressure Balance Hole in Ball Slot
2 Belleville Washer to Self-adjust Packing
ISO 5211 Direct Mounting Pad for Easy Automation
Locking Device Spring Handle
2.STANDARD:
Design:EN 12516-1
Wall Thickness:ASME B16.34,EN12516-3
Flange Ends: DIN 2501 PN10-PN40
Fire Safe Design Acc:API 607
Flange End:ASME B16.5 CLASS 150/300
DIN 2653 PN10-PN40
JIS B2238 10K/20K
Inspection & Testing:API 598,EN 12266
