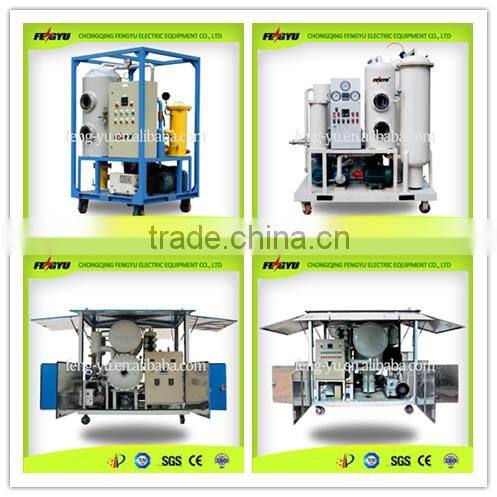

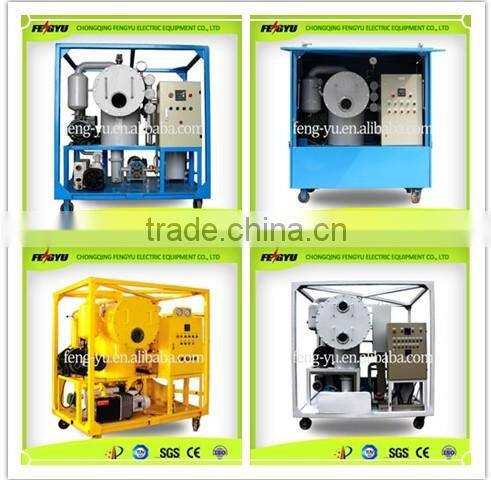

Portable Transformer Oil Filter Machine

Name: Portable Transformer Oil Filter Machine
Brand: Fengyu
Availability: InStock

FOB Price

US$ 5,000 - 30,000 / Set

1 Set(Min. Order)

Port Chongqing
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Flow	5-300L/min
Working Pressure	0.5Mpa	Place of Origin	Chongqing, China
Brand Name	Fengyu	Model Number	DZL-5A-DZL-300A
Usage	Transformer Oil	Voltage	380v/50hz
Power(W)	5-165KW	Dimension(LWH)	2500mm1500mm3000mm
Weight	100-2500kg	Certification	ISO CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

FENGYU Signal and Double-stage High-efficiency Vacuum Transformer Oil Purifier.

FUNCTIONS:

The main oil filtration function of DZL Series of signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformer. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.

TECHNICAL SPECIFICATION

Product	Single	5	10	20	30	50	75	100	Proposed to use double stage to deal with 100L/min. capacity
Product	Double	5A	10A	20A	30A	50A	75A	100A	150A	200A	250A	300A
Flow rate	L/min	5	10	20	30	50	75	100	150	200	250	300
Total power	KW	5	15	24	24	30	48	60	108	108	144	144
Pipe diameter	DN mm	25/16	25/16	32/25	32/25	44/32	44/32	50/44	50/44	50/44	65/50	65/50
Gross weight	KG	100	180	240	320	420	700	750	1500	1860	2100	2200
Overall dimension mm	Length	700	1200	1200	1300	1300	1600	1600	1600	1600	2000	2000
	Width	500	800	1000	1000	1000	1400	1400	1400	1400	1600	1600
	Hght	800	1200	1400	1450	1500	1800	1800	1800	1800	2250	2250

TECHNICAL INDEX

Product	DZL-Single	DZL-Double
Breakdown Voltage(KV)	60	75
Moisture Content(PPM)	10	5
Gas Content	≤0.5%	≤0.1%
Filtering Fineness( m )	1-5	1-5
Vacuum Degree(PA)	400	50
Working Temperature	40---70
Max Outlet Pressure(MPA)	0.5
Working noise	60		60
Filtering efficiency	1-3times
