Specifications
1. Single side Fpc For Bluetooth Dongle circuit board2. Quick turn PCB
3. SGS, ISO
4. 100% test
5. over 10 years experience

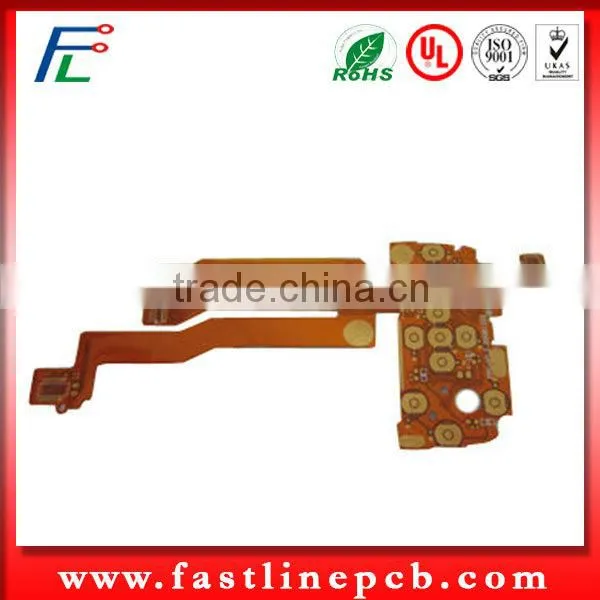

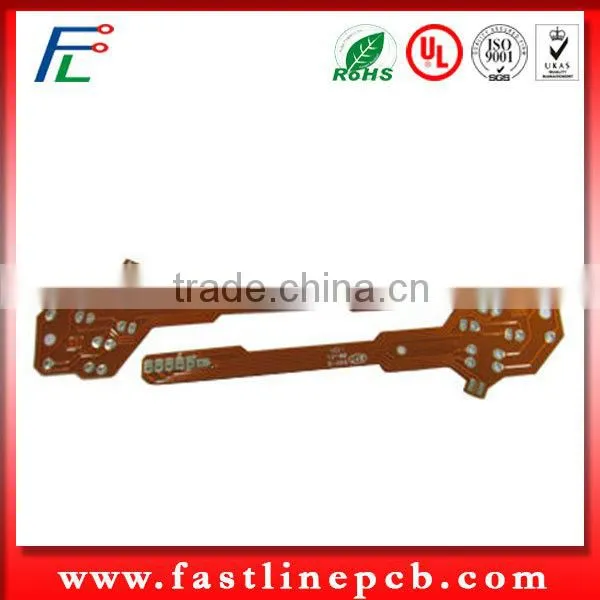

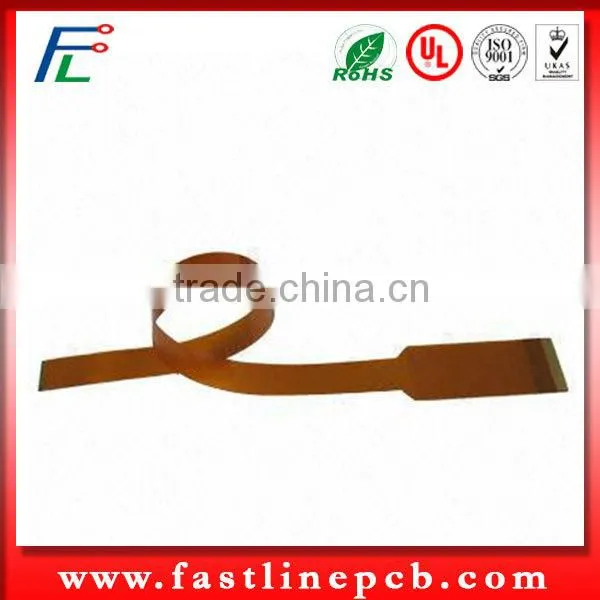

Single side Fpc For Bluetooth Dongle circuit board
Advanced Features:
|
1.Air Gap - Through the process of selective bonding, increased flexibility is achieved by "unbonding" layers so they are allowed to flex freely.
2.Controlled Impedance - With increasing signal switching speeds, engineers need to understand and control the impedance of traces. With short signal transition times and high clock rates of modern digital circuitry, traces need to be considered transmission lines instead of simple interconnections.
3.Graphic Overlays – Graphic Overlays can be placed over flex circuits, rigid boards or membrane switches. The overlays provide the user interface with the underlying circuit and typically are used in conjunction with LEDs, LCD displays or dome switches mounted on thie circuits. The overlays are made from polycarbonate, polyester or acrylic.
4.Laser Skived Slots - Flexible Circuit has dramatically improved this process by utilizing a top-of-the-line laser beam with extremely precise depth control to accurately cut the underlying substrate of a flex circuit. Precise laser beams can skive circuit openings with the utmost precision.
5.Shielding – Shielding is applied when an application requires limits in electromagnetic and/or electrostatic interference. Protective shielding can be patterned or solid.
6.Stiffeners – Stiffeners are applied to flex circuits where additional support is needed such as areas of component assembly or underneath exposed traces that will be plugged in for connection. Common stiffeners are FR4 and polyimide. |
|
FPC showcase:
PCB&PCBA
Lead time & payment
Shipping methods
Fastline is a Leading PCB manufacturer in China. It was founded in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40,000 square meters with 1000 professional staff,And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
Fastline Circuits is committed to providing superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
More information, pls click send .
Skype ID: fastlinepcb001
