Fast Delivery Impedance Controlled PCB Factory,PCBA Manufacture

US$ 0.2 - 0.99 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

A190

Shenzhen Fastline Electronic Material Co., Limited

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name FL

Model Number A190

Base Material FR-4

Copper Thickness 1 Oz

Board Thickness 1.6mm

Min. Hole Size 0.15MM

Min. Line Width 0.15MM

Min. Line Spacing 0.15MM

Surface Finishing HASL

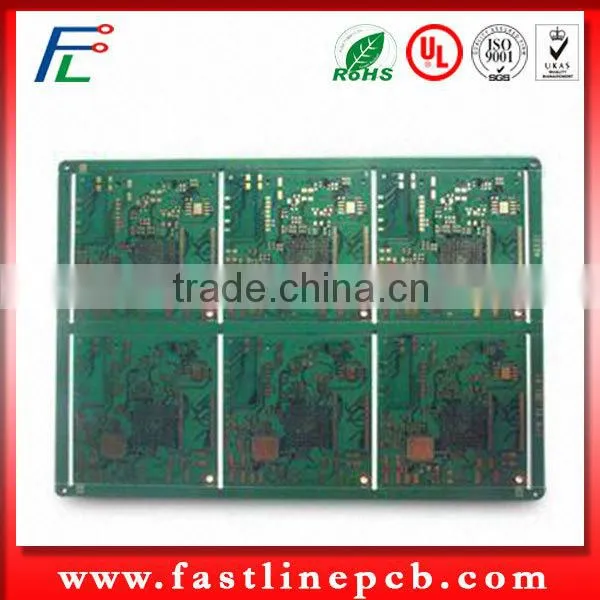

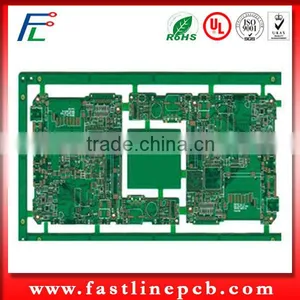

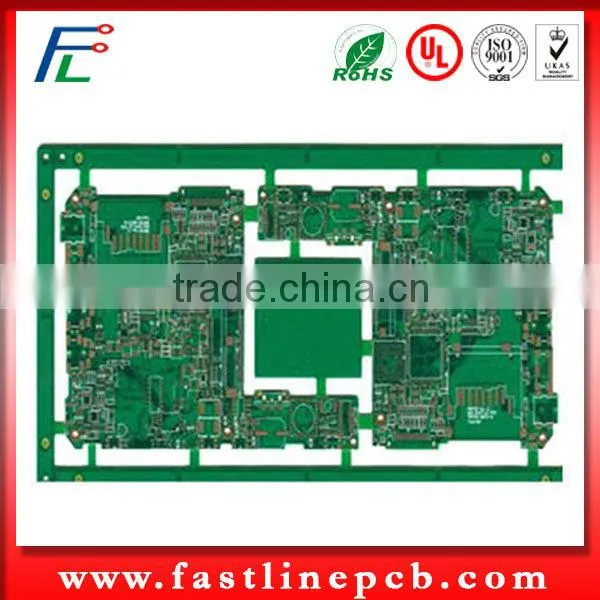

Fast Delivery Impedance Controlled PCB Factory,PCBA Manufacture

Capability:

layer	1-50 layer
Material type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board thickness	0.21mm to 7.0mm
Copper thickness	0.5 OZ to 6 oz
Size	Max. Board Size: 580mm×1100mm
	Min. Drilled Hole Size: 0.2 mm (8 mil)
	Min. Line Width: 4mil (0.1mm)
	Min. Line Spacing: 4mil (0.1mm)
Surface finishing	HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating
Solder Mask Color	Green/Yellow/Black/White/Red/Blue
Tolerance	Shape tolerance: ±0.13
Tolerance	Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Certificate	UL, ISO 9001, ISO 14001
Special requirements	Buried and blind vias+controlled impedance +BGA
Profiling	Punching, Routing, V-CUT, Beveling

PCB product showcase:

PCB application:

PCB production line:

Our Services:

Lead Time & Payment:

Shipping Methods:

Buying Guides

If you need PCB, Could you send us your files(gerber preferred) and tell me following information if it is not included in your files?

	Your parameter	Normal value for your reference
Layer counts:
Material:
Surface finished:		HAL lead free or immersion gold….?
Solder Mask color:		White
Legend color:		Black
Board thickness:		1.6mm
Copper thickness:		1OZ
Size:
Quantity you need:

If you need PCB assembly service, could you please offer us following information?
1. Gerber file of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
