Impedance controlled digital electronic advanced circuits
- 10000 Piece / Pieces per Month
- Hong Kong
- T/T D/P D/A Credit Card PayPal
- Electronic Impedance Controlled Multilayer PCB for Machine
- FR4 pcb function customization avalon pcb factory
- Hi-frequency integrated circuit board HDI PCB
- Goldencircuits Qualified Impedance Controlled Rigid Flex PCB
- Hot Sell Multilayer Impedance Controlled Rigid Flex PCB Manufacturer with Lower Price
- 4-Layer impedance control home appliance controller pcb
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FASTLINE | Model Number: | FL608 |
Base Material: | FR4 IT180 | Copper Thickness: | 1 oz | Board Thickness: | 1.0mm |
Min. Hole Size: | 0.2 | Min. Line Width: | 0.1mm | Min. Line Spacing: | 0.1mm |
Surface Finishing: | ENIG |
Packaging Details
Vaccum+Carton
Product Description
We have rich experience in controlled impedance pcb manufacturing,
100% match customer’s requirement with high quality.
Otherwise,Money back.
How to ensure the quality of Impedance PCB by Fastline?
It is easy,3 steps!

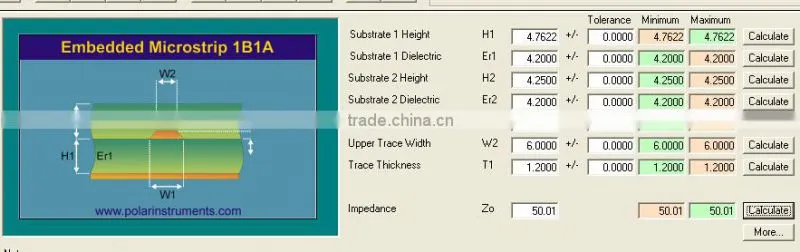

1. Calculate the value before production.
2. Measure the width of trace and dielectric layer in process
3. Make an coupon, Test it by impedance test Instrument

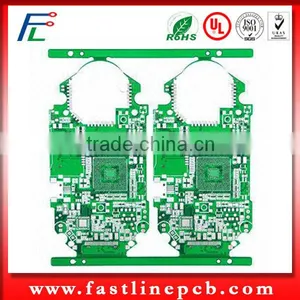

Products Photo
Products Application
Capability
layer | 1-50 layer |
High Density Interconnect(HDI) | 2+N+2 |
Material type | FR-4, High TG, Halogen Free, Rogers, |
|
|
Board thickness | 0.21mm to 7.0mm |
Copper thickness | 0.5 OZ to 10 oz |
Size | Max. Board Size: 580mm×1100mm |
Min. Drilled Hole Size: 0.15 mm (6 mil) Min. Laser Drill 0.1mm(4mil) | |
Min. Line Width: 3mil (0.075mm) | |
Min. Line Spacing: 3mil (0.075mm) | |
Surface finishing | HASL / HASL lead free,ENIG, Chemical Tin, Immersion Silver/Gold, OSP, Gold plating |
Solder Mask Color | Green/Yellow/Black/White/Red/Blue |
Tolerance | Shape tolerance: ±0.13(5mil) |
Hole tolerance: PTH: ±0.075(3mil) NPTH: ±0.05(2mil) | |
Certificate | UL, ISO 9001, ISO 14001 |
Special requirements | Buried and blind via + Controlled impedance + BGA |
Profiling | Punching, Routing, V-CUT, Beveling |
Why Choose Us?
1) We have professional research team.
2) 2) No MOQ,small order are also welcome,From Prototype to Mass production.
3) All products are 100% tested working before sent to you.
4) One stop PCB solution (PCB and PCB Assembly)
5) We have professional sales team, so please do not hesitate to contact us if you have any question!
FAQ
Q1: What's your minimum order quantity?
A1: Our MOQ is not the same based on different items. Small orders are also welcome.
Q2: What payment terms do you have?
A2: For small orders, we usually prefer Paypal and Western Union; For bigger order,Please pay by T/T,
Also,we accept NET30.
Q3: What is the lead time?
A3:Sample needs 4-5 days, mass production needs 7-10 days, according to the order volume.
Also we can provide quick time service 1-2days.
Q4: what file we should offer?
A4: PCB:Gerber file is better,( Protel ,power pcb,Eagle,Express PCB,PADs file), PCBA : Gerber file and BOM list.
Q5: How about the shipping method?
A5:We have stable cooperation ship with DHL, Fedex, EMS, UPS, TNT and other air flight way or sea freight company.
Usually we will quote you the most reasonable shipping method according to your country, good types,
weight and requested delivery time.
We shall appreciate if you could write us details of your order quantity, country, sea port/air port
before you send us inquiry. In this way we can offer you the best and most accurate price.
Q6: I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
Would like to know more about the product? Send us inquiry, click "Send" now!
Company Profile
Fastline is a Leading PCB manufacturer in China.serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40,000 square meters with 1000 professional staff,And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
