Home > Products > 2 Layers PCB > 2Layer GPS automotive electronic PCB board assembly
2Layer GPS automotive electronic PCB board assembly
- 20000 Square Meter / Square Meters per Month
- shenzhen/Hongkong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FL | Model Number: | Double Sided PCB |
Base Material: | FR-4 | Copper Thickness: | 1OZ | Board Thickness: | 1.6mm |
Min. Hole Size: | 0.15MM | Min. Line Width: | 0.15MM | Min. Line Spacing: | 0.15MM |
Surface Finishing: | HASL |
Packaging Details
vacuum + carton
Product Description
Customed electronic circuit board Manufacturer
Fastline has rich experience in multilayer PCB(printed circuits boards)and single or double sided PCB assembly(PBCA). Backed by our advanced techniques and experienced production staff, Fastline makes sure that all the layers in the multilayer PCB are perfect insulated between each other and every conductor pattern functions well. The R&D team in Fastline does a wonderful job and we can provide PCB products to our customers according to their design or requirements. All our products, including PCB, are passed the certification of SGS, TS, RoHS and UL.
Fastline Products Line:
- FR4 PCB
- Aluminum PCB
- Flexible PCB
- Fast PCB
- The PCB/PCBA design and copy service to our customers.
Professional Double Side PCB board Manufacturer
Capability:
layer | 1-50 layer |
Material type | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
Board thickness | 0.21mm to 7.0mm |
Copper thickness | 0.5 OZ to 6 oz |
Size | Max. Board Size: 580mm×1100mm |
Min. Drilled Hole Size: 0.2 mm (8 mil) | |
Min. Line Width: 4mil (0.1mm) | |
Min. Line Spacing: 4mil (0.1mm) | |
Surface finishing | HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating |
Solder Mask Color | Green/Yellow/Black/White/Red/Blue |
Tolerance | Shape tolerance: ±0.13 |
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 | |
Certificate | UL, ISO 9001, ISO 14001 |
Special requirements | Buried and blind vias+controlled impedance +BGA |
Profiling | Punching, Routing, V-CUT, Beveling |

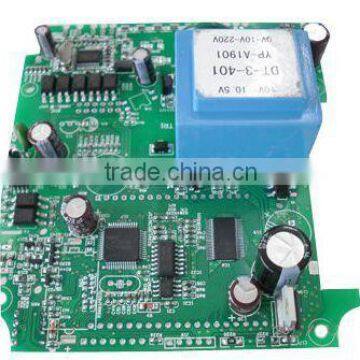

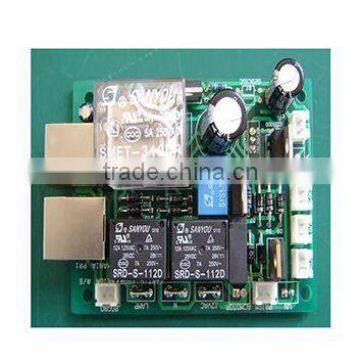

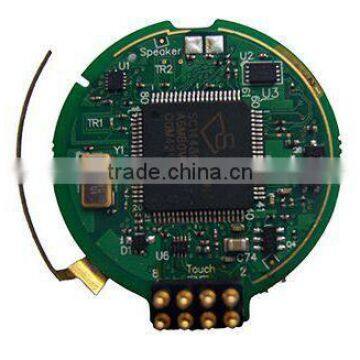

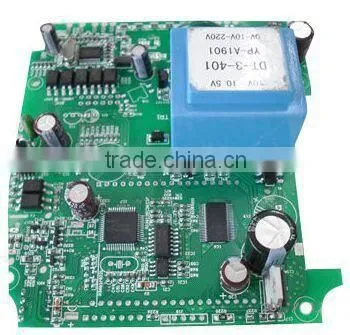

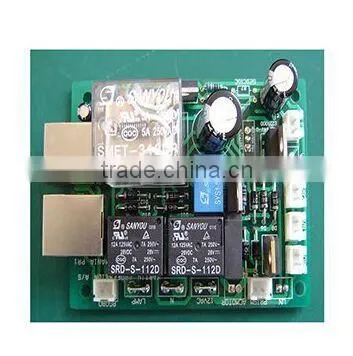

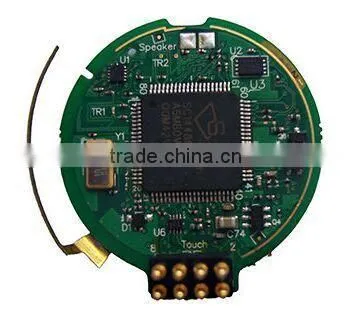

PCB product showcase:
PCB application:

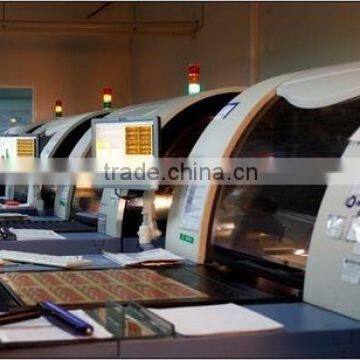

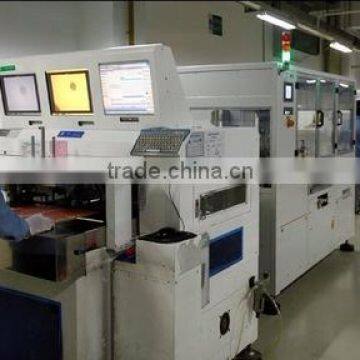

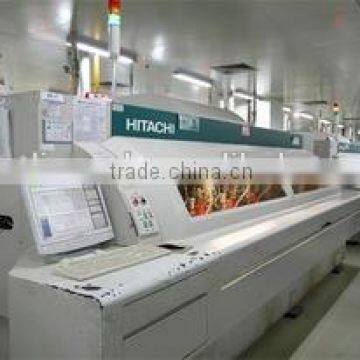

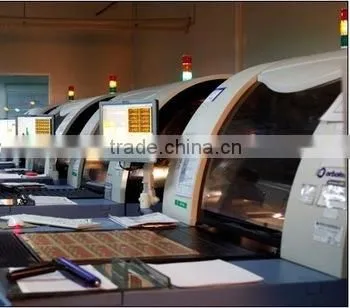

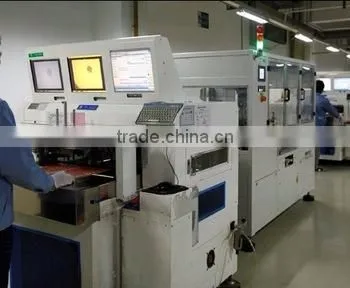

PCB production line:
Our Services:
Lead Time & Payment:
Shipping Methods:
If you need PCB, Could you send us your files(gerber preferred) and tell me following information if it is not included in your files? | ||
|
|
|
| Your parameter | Normal value for your reference |
Layer counts: |
|
|
Material: |
|
|
Surface finished: |
| HAL lead free or immersion gold….? |
Solder Mask color: |
| White |
Legend color: |
| Black |
Board thickness: |
| 1.6mm |
Copper thickness: |
| 1OZ |
Size: |
|
|
Quantity you need: |
|
|
| ||
If you need PCB assembly service, could you please offer us following information? | ||
1. Gerber file of the bare PCB board | ||
2. BOM (Bill of material) for assembly | ||
To short the lead time, please kindly advise us if there is any acceptable components substitution. | ||
3. Testing Guide & Test Fixtures if necessary | ||
4. Programming files & Programming tool if necessary | ||
5. Schematic if necessary |
Rigid PCB Manufacturer
Company Profile
Fastline is a Leading PCB manufacturer in China.serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40,000 square meters with 1000 professional staff,And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
