3 Chip LED Cree Module for Exhibition System / Advertising (SL-BL015-070)

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

SLT

Model Number:

SL-BL015-070

Contact Supplier Request Quote Chat Now

Fujian Sunlighte Optoelectronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name SLT

Model Number SL-BL015-070

Usage Indoor

Display Function Graphics

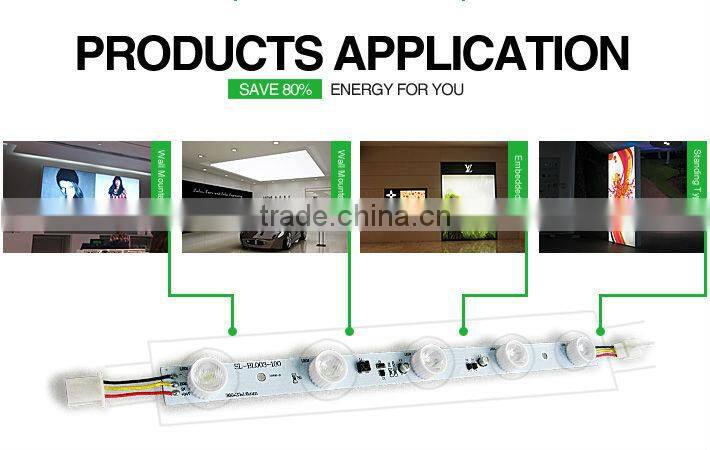

3 Chip LED Cree Module for Exhibition system / advertising (SL-BL015-070)

1. Specifications:

Model	LED	Power	Voltage	Lumen	CCT	Angle	Size
SL-BL015-070	Cree	7W	DC24 ±0.5V	350-650LM	3000-7000K	*1560°/950°*	*2002316mm*

2. LED MODULE Features:

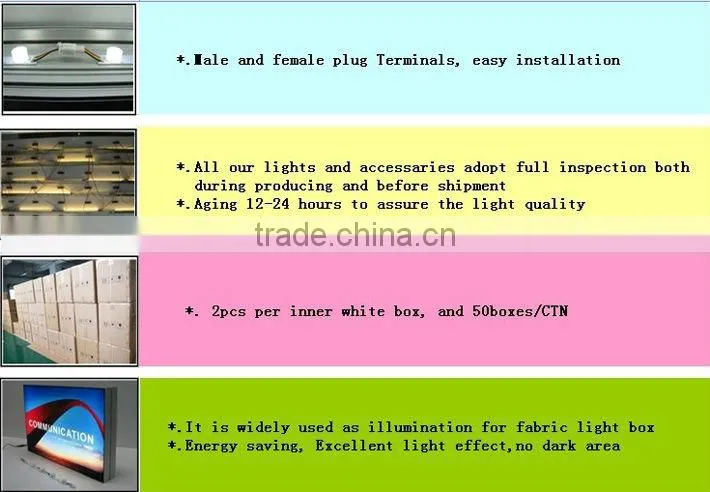

LED Light Bar is widely used in frame light box, double sides light box, advertisement. It is easy installation and energy saving. It has been porpular in domestic and oversea market.

Used in airport, bus stop and station , No need to place LGP in light box when using it. No dark area.

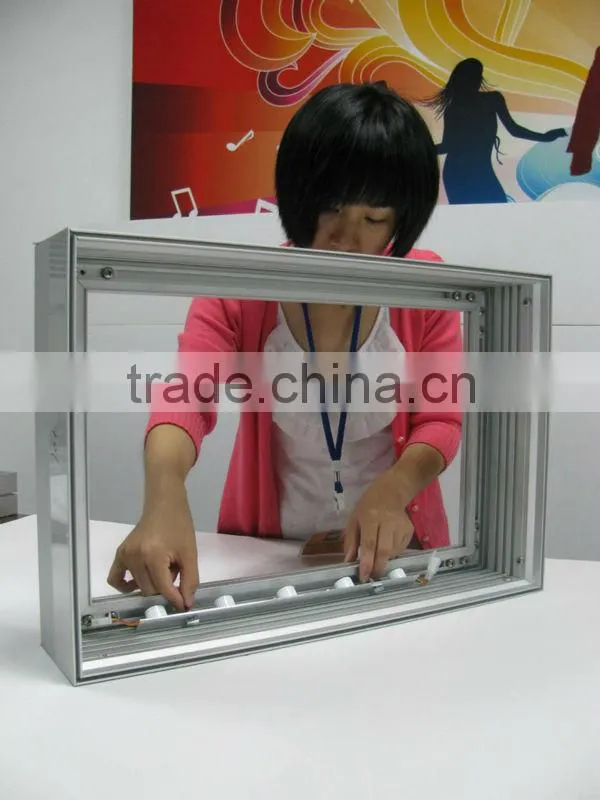

LED module Installation construction

1. Fairy modules must be installed on the aluminum material for better heat sink.

2. LED fairy module and its accessories shouldn’t be squeezed.

3. The PCB circuit should not be changed during the installation, so that all LED can be lighted.

4. Pls turn off the electricity and then install it. It should follow the rules of the relevant electronic components and the standard of safety. He who knows electricity should be allowed to install it.

5. Dim wire can not be connected if no use of dimmable controller.

When installed a large area, PCB board should be connected with a right direction. +24V with +24V, Dim with Dim, negative electrode with negative electrode. Then fix firmly with screw.

The input voltage is DC24V, AC220V is not allowed to input directly. The size is 360*23*16mm, the power is 13w. Pls notice that input positive pole should connect with the panel positive pole, and the negative pole should connect with the negative pole, they are not allowed to connect in opposite.The maximum connection should be 5pcs.

4. LED module Technical Request

NO.	Description	Units	Parameter range
1	working environment	°C	-20~~+50
2	storage condition	°C	-30~~+70
3	rated voltage	V	DC24±0.5V
4	rated current	mA	420±10%
5	output power	W	10±10%
6	luminous flux	LM	700±10%

5. LED module Noted

Please read the specification first to make sure the using condition is fit.

Please shut off the switch before connect the product, then turn on. OUTPUT:DC24V

.Indoor use only.

6. Hot Products.

7. CAUTION:

*.Please read the specification first to make sure the using condition is fit.

*.Please shut off the switch before connect the product, then turn on.

*.Indoor use only.

8. Why clients choose us?
1. Good quality
2. Resonable price
3. Safety packaging

4. Short lead time

5. One-Stop service

9. Quality control:

1. Before producing, we would strictly check the material, color, wick,etc.

2. Aging for every light about 12-24hours

3. Our salesman would trace every phase of production from the beginning.

4. We have a QC team, every piece product sould be inspected before packing.

10. About us:

Our factory established in 2004, which is located in beautiful Xiamen City.

We have about 10 years experience in export and products are sold to America, Europe, Australia and Middel East, etc. We are a professional and reliable suppliers.

11. Superiority:

We are the professional manufacturer of adertising lights, such as,* trade show display light, * exhibition arm light, * pop up light, * LED module and LED Backlight. We have been in this line for about 10 years. Based on our experience, with our reasonable price, high quality and considerate service. Our products enjoy the high reputation in our domestic and oversea market.

♥ We possess around 30 technical achievements, 23 of them have been patented.

12. Contact:

Vivien Liang

Company Tel: 86-592-5594956
Mobile Phone: 86-13606081736
Website: xmsunlighte.en.china.cn/
Skype:vivienliang2008

13. FAQ

1. What the depth of the light box should be if we want to install the LED
module in the light box?
For single side light box the depth should be at least 80mm(the distance from the center of the lens to the fabric should be at least 70mm), for the double sides light box, the depth should be more than 120mm(the distance from the center of the lens to the fabric should be at least 60mm).

2. Are the LED modules difficult to assemble?

Not at all. You can install the LED module in the light box with limited skills in a matter of minutes.

3. Do I need an electrician to install the LED modules and power suppliers?

If you have, that is better, but if there is no elctrician, that is also no problem.. By redesigning all parts with the plug-and-play principle, anyone can install the LED modules and power supplies.

4. How many LED module should be installed in a 1 square meter light box?

4pcs 10W 5pcs LED LED module is enough, if you need very bright light effect, you can install 8pcs 10W 5pcs LED LED module in the light box.

5. What is the weight of the LED modules?

The 9pcs LED 12W LED module is only 250g.

6. What kind of LED is used in the LED module?

Normally CREE and Epistar, or Samsung, Osram . Or can be customized.

7. What is the power consumption of a 1 square meter light box if it is installed 5pcs 10W LED module?

One power LED module is 10W, so if you install 4pcs in the 1square meter light box, the power consumption is 40W. If you install 8pcs in the 1 square meter light box, the power consumption is 80W.

8. How many amperes does it need?

One 10W 5pcs power LED module needs 0.42A, one 7W 3pcs 5pcs power LED module needs 0.292A, one 12W 9pcs power LED module needs 0.5A. But the amperes of the power supply should be 20% higher than the amperes of the LED modules.

9. Can the LED module be used without the aluminum profile?
No. Installed on Aluminum profile will lead a better heat sink. The lifespan of LED modules will be longer.

10. How many LED modules can I connect most in series?

The 5pcs 10W LED module can connected 5pcs most in series, the 3pcs 7W LED module can connected 7pcs most in series, the 9pcs 12W LED module also can connected 5pcs most in series.

11. Client talks about lumens, Lux and Candela: what do we use?

A candela is an international light measuring unit, lumen is the radiation of this Candela(candle). If 1 Lumen lights the surface of 1square meter, that is one Lux. But we only use Lux.

12. What is the maximum size if I want to use the LED module in the light box?

The width should not be wider than 6m, the length is not limited.

13. Are there visible dark spots in the middle?
No. The lighting, even in extremely large light box is surprisingly uniform. When we measure output with a Lux meter, there is very little variation.

14. Can you dim the LED module?
Our standard power LED module is not dimmable, but we do have one available with different electronics that is dimmable, which can be controlled by a remote controller or just a manual swith.
