Home > Products > Vacuum Pack Machine > YS-ZDZK-320 Full Auto Continous Stretch Vacuum

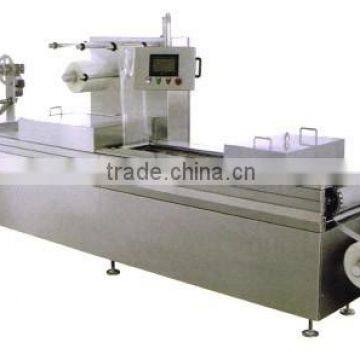

YS-ZDZK-320 Full Auto Continous Stretch Vacuum
Negotiable
1 (Min.Order)
- 0 per Month
You May Like
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
| Packaging Type | Bags, Barrel, Belt, Bottles, Cans, Capsule, Film, Foil, Pouch | Packaging Material | Plastic | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric |
Product Description
Specifications
Length | 4200mm | |
Width | 1030mm | |
Height | 1900mm | |
Loading area | 1000-2000mm | |
Upper film width | 290mm | |
Lower film width | 320mm | |
Max forming depth | 60mm | |
Lower film reel diameter | 400mm | |
Upper film reel diameter | 300mm | |
Reel core diameter | 76mm | |
Maximum pitch | 300mm | |
Max pitch with pre-heating station | 300mm | |
Working efficiency | 3-7cycles/min | |
Total power | 11KW | |
Main motor power | 0.75KW | |
Heating total power | 6KW | |
Installed power supply (pump excluded) | 8KW | |
Compressed air pressure | 0.6-0.8MPa | |
Compressed air consumption | 1m3/min | |
Water consumption | 70L/h | |
Power supply | 380V, 50HZ, 3PH | |
Vacuum pump | Germany BUSCH, 100m3/h | |
Main electrical equipments | Germany SIMENS, France Schneider | |
Weight | 1300kg | |
Options | ||
1 | Color film cursor location system | |
2 | Automatic coding, ink-jet printing system | |
3 | Mould cooling system | |
4 | Outfeed conveyor belt | |
5 | Modified atmosphere packaging(MAP) | |
Application scope: Suitable for foods, bean products, meat products, seafood, fruits, vegetables, pickles, medicine products and metal components vacuum packaging
