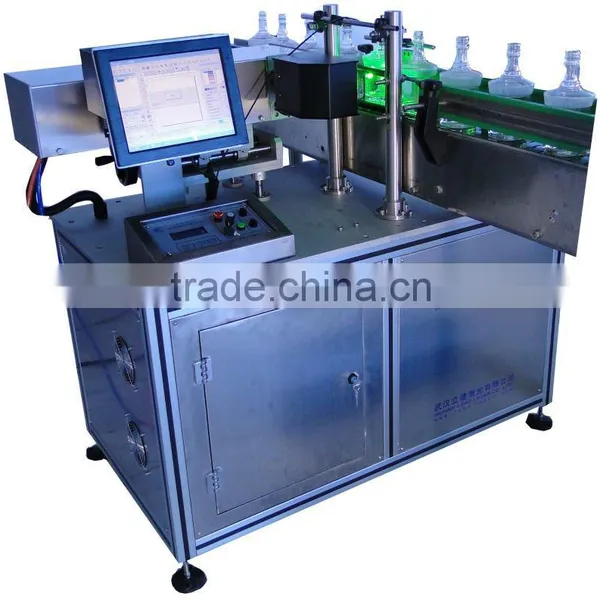

Help CenterYAG Flying Laser Engraver and Coder Machine
Related Products
-
Bestseller Customized Engraving k9 Crystal Photo Gift on SaleNegotiableMOQ: 100 Pieces -
Laser Coding Machine for Dairy Production With Expiry DateNegotiableMOQ: 1 Set
-
Promotional Christmas Crystal Photo Customized Gift for Family With Low PriceNegotiableMOQ: 100 Pieces
-
Fiber Laser Rotary Marking Machine Eastern With Good PriceNegotiableMOQ: 1 Set
-
Low Price CE Passed Merry Christmas Crystal Photo Customized GiftNegotiableMOQ: 100 Pieces
Specifications
Long time warranty:Strong technical support.
High stability.
Maintenance free.
Intelligent Software.
WUHAN LEAD LASER CO., LTD located at Optical Valley of China (OVC), Wuhan East Lake Hi-Tech Development Zone, and engaged in3D crystal laser engraving machine more than 10 years. Currently, our company has passed ISO-9001 international quality system, and our3D crystal laser engraving machines have approval of CE and FDA certificate, product sales spreads all over the world. Welcome to visit ourfactory at all times and vertify the quality before delivery.
Applied industries: Wine industry, pharmacy, chemical products and other transparent packaging material industry, transparent material industrial product manufacturers.
Features:
1. Wuhan Lead Laser develop and product the invention patent technology equipment independently, diode end-pumped frequency doubling laser, 532nm wavelength green laser output, the light spot diameter is more smaller, energy is more concentrated, electro-optic conversion efficiency is high and the beam quality is good after focusing.
2. Digital design is engraved in the thickness middle of the glass wall, flat and smooth, without any damage. It can not be wear off using the high temperature, low temperature, acid, alkali solvent and grinding wheel, removing this engraved sign will cause the bottle broken, deep and permanent anti-fake.
3.Full automatic dynamic coding in the product packaging production line, it is not affected by the bottle size and shape change, code position can be set accurately, it can be engraved with the bottle wall thickness more than 2mm.
4.Equipment software is not only can satisfy online engraving the general digital, it also can integrate with the product traceability system software, realizing engrave the only identity code of each product. It also can complete static text, pattern and the two-dimension code.
5.No dust powder, peculiar smell and noise when it is coding, environmental protection and energy saving.
6. It can satisfy the engraving and coding in the transmission speed of 0-15 meter/minute, it also can meet up with the capacity of 3000-8000pcs/hour with the 8-12 digitals.
7. Equipment can work longterm and stable, it is applied for the industrialized mass production processing, the service life is long.
Parameter:
Max laser power:10W
Laser wavelength:532nm
Engraving line speed:5~15m/min@8~16characters high 3mm single body character;
Min character:2mm
Repeat accuracy:±0.001mm
Machine power:1KW
Power demand:220V/single phase/50Hz/10A
Main system size:113x63x131cm
Cooling system size: 67 x30x47cm
Weight of whole machine:300kg

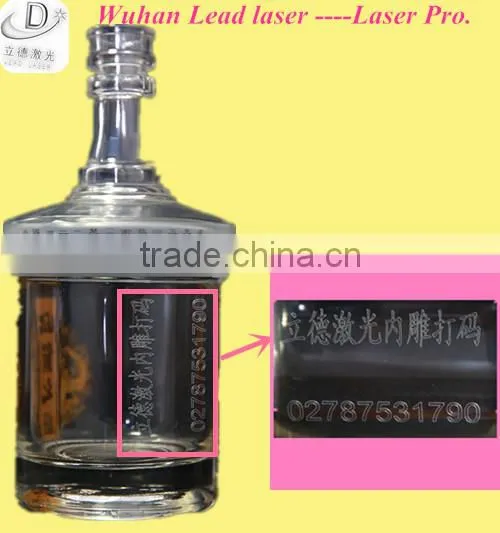

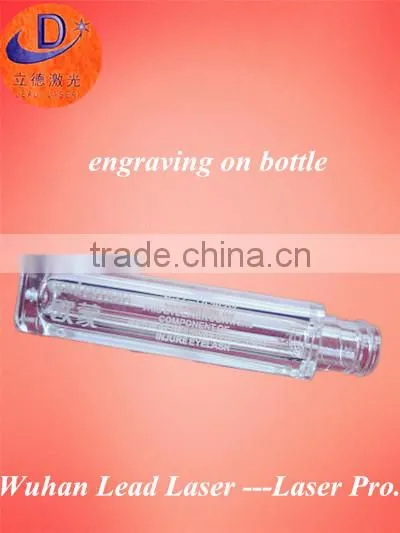

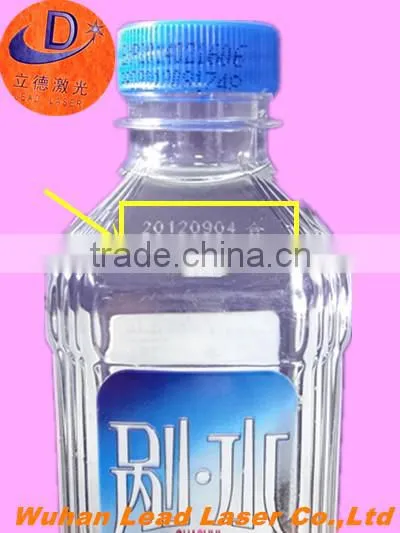

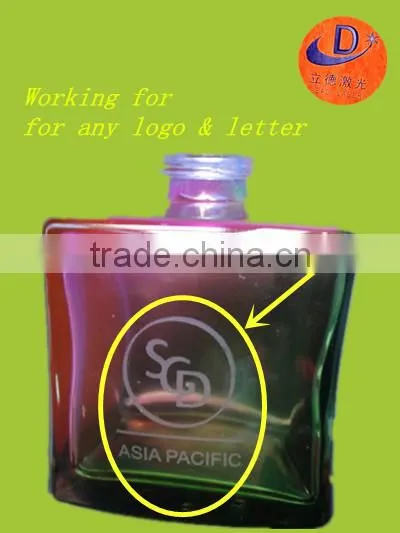

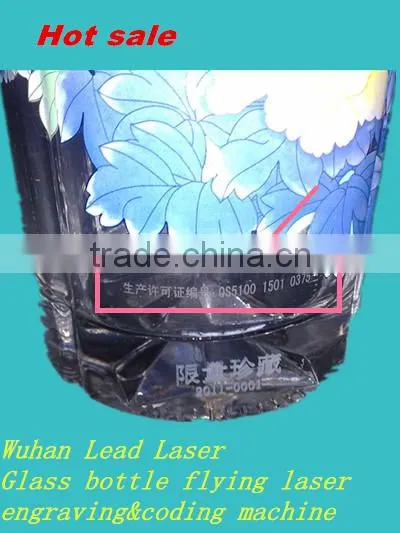

Sample pictures:
Packing and Contents:
Equipment will be packed into two standard wooden cartons, suitable for vessel or air transport, and marked the universal label, shipping marks etc.
Delivery:
Within 25 days after receiving the total payment
Warranty and Service included:
a. Hardware: 1 year on all parts and labor;
b. Software: Lifelong on update for free;
c. Diode: 3 years;
d. Maintenance and technological support: whole life.
Training:
a. 3--5 days free training for the whole system in Seller’s company.
b. If customer needs our technician give the training abroad, the Customer need charge for accommodation fees of engineer, the other fees such as traveling expenses are all on our account.
