LD-EM-603A-S Laser multifunction machine has both the function of LD-EG-603A-S Laser subsurface engraving machine and LD-MK-G3005 Laser marking machine.
- Laser subsurface engraving function: it can be used to engrave 2D/3D images, individual figures in crystal, glass and other transparent materials, can engrave 2D/3D portrait, baby shower, trophy and other personalized gifts and souvenirs, also can mass production for 2D/3D animals & plants, architectures, models such as car, boat, airplane etc, and 3D scene show.
- Laser marking function: it can be used to mark on the surface of glass products, such as mobile phone screen, LCD screen, optics components (as optics lens), automotive glass and so on, and then it can be suitable for the most different nonmetallic and metallic products surface marking.
Applied materials:
This machine can be applied for marking on the surface of various different metal or nonmetal materials. Such as hardware, ceramics, glasses, watches and clocks, PC, electric components, instruments, PCB board, control panel, brand board, plastic and so on, be better used for the demands of more fine and more precision.
Features:
1. Adopts the advanced galvanometer scanner technology together with 3KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively.
2. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production.

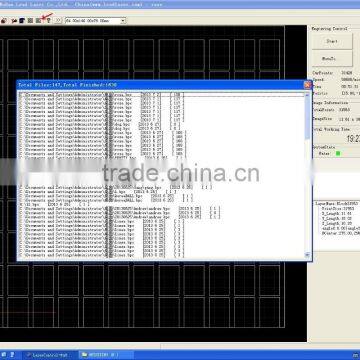

3. Equipped with self-developed conversion software, 2D normal photo can be engraved as 3D results.
4. Exclusive technology, laser engraving range is at 140X120X100mm.
5. Suitable for individual production and batch fast process. Just one machine could be satisfied with capacity for both storefronts network distribution and electric-business distribution.
Technique specification:
Technique specification for laser subsurface engraving status: |
|
Laser Wavelength: 532nm |
Max. Laser Power Supply Frequency: 3KHz |
Engraving Speed: 120000-180000 dots/min. |
Max. Power of the Whole Machine:1KW |
Max. Engraving Range: 140mm×120mm×100mm |
Control System: Scanner, DSP, 3D |
Laser Heads: 1 |
|
Technique specification for laser marking status: |
|
Laser Wavelength: 532nm |
Output Laser Power: 5W |
Quality of Laser Beam M2: 1.5 |
Laser Repeated Frequency: ≤50kHz |
Max. Marking Range:100mm×100mm |
Marking Depth: ≤0.1mm |
Linear Speed: ≤7000mm/s |
Minimum Line Width: 0.005mm |
Repeated Accuracy: ±0.001mm |
|
Whole machine capability: |
|
Cooling System: Semiconductor Cooling, free of cooling mediums |
Continuous Working Time: ≥12hrs |
Max. Power of the Whole Machine:1KW |
Electric Power Supply: 220V/Single-phase /50Hz/7A |
Size of the Whole Machine: 550 ×580×700mm |
Weight of the Whole Machine: 90kg |

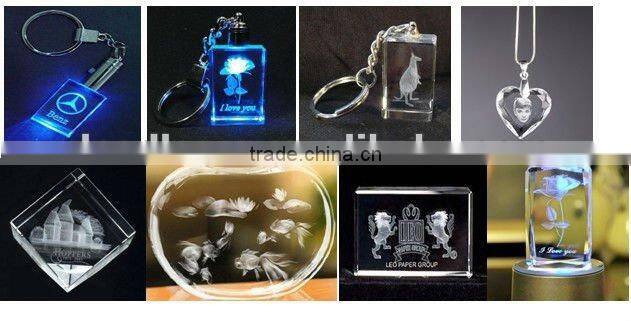

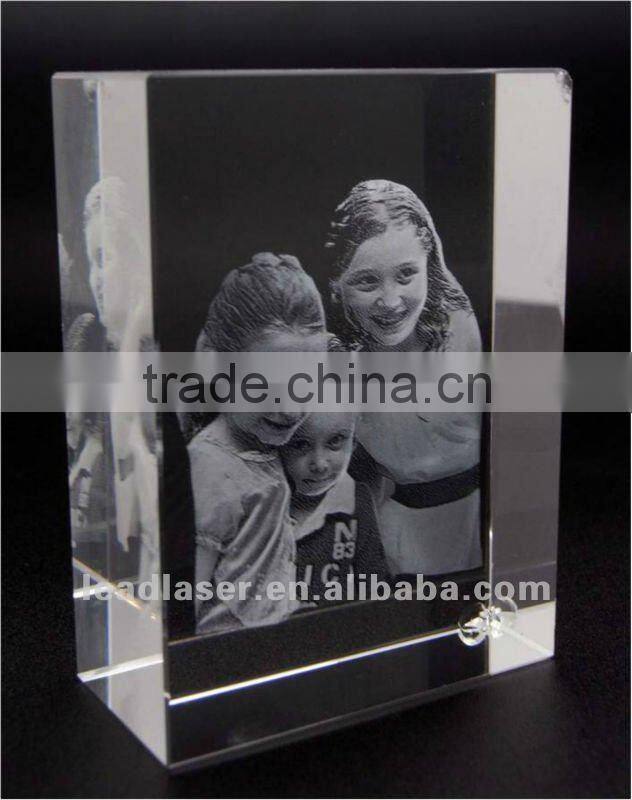

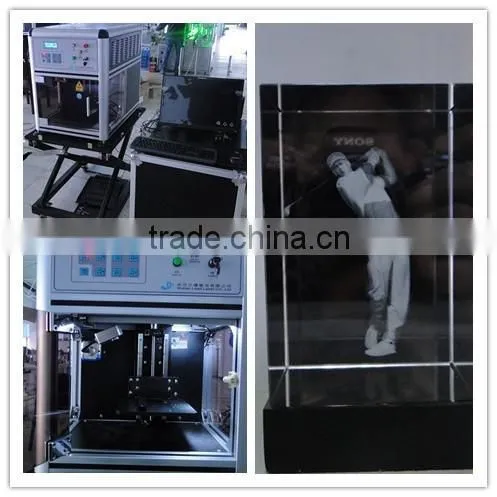

Samples Chart:
