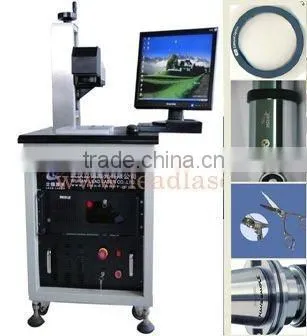

Help CenterBustling Technical 10W Fiber Laser Micro-percussion Marking Machine
Related Products
-
Bustling Technical 20W Magic Scanner Green Beam Laser Micro-percussion Marking MachineNegotiableMOQ: 1 Set -
Passed Technical 20W Magic Industrial Applied Laser Mocro-percussion Marking MachineNegotiableMOQ: 1 Set
-
Passed Technical 50W Animal Tag Fasten Speed Laser Marking Machine (Hot Sales)NegotiableMOQ: 1 Set
-
High-technical 50W Animal Tag Laser Marking Machine (Hot Sales)NegotiableMOQ: 1 Set
-
High-technical 20W Green Beam Laptop Keyboard Laser Micro-percussion Marking MachineNegotiableMOQ: 1 Set
The Fiber laser marking machine adopt the top laser technology in the world wide. The fiber laser outputs the laser and scanner system finishes the scanning process. The fiber laser is air cooled, and it has the advantage of high electric-optic efficiency, small in size, good beam quality and high reliability. It can mark on all kinds of metal surfaces and some of the non-metal surfaces. Suitable for processing the need engraving, smoothness and accuracy, such as barcode, two-dimension code, graph and character marking.
Features:
1). Excellent laser beam quality: Compared with traditional solid laser marking machine, fiber laser marking machine use base module (TEMOO) output, diameter of focal spot is less than 20um. Divergence angle is only 1/4 of semi-conductor pumping Laser. It is special suitable for precision marking.
2). Maintenance-free, long service life: Small wastage, high stability, not be affected by the outside dirt, steam and mechanism loosed, can be normal used under the abominable environment, such as high concussion, high temperature and dust, etc. using laser diode as the pumping source, totally enclosed type light path design. mean-time to double failure is over 100 thousand hours.
3). Fast processing speed: Its processing speed is 2-3 times of traditional laser marking machine.
4). Low processing cost: Optical-electric transferring efficiency is 30%, power consumption is less than 200 W, which is only 1/20 of light-pumped solid-state laser marking machine, greatly saving energy expenditure for long term usage.
5). Maintenance Free: No need maintenance of laser medium. Do not need adjust or clean the lens.
Applications:
Widely used in industries of plastic key-press, Silicon Rubber key-press, communication, electronics, vehicle parts, IT, IC, precise accessories or metal products, electric appliance, glasses, watch and clocks, apparatus, or art craft, etc.
Technical parameters:
Model No. |
LD-MK4010 Fiber Marking Machine |
Laser Power |
10W |
Wavelength |
1064nm |
Beam quality M2 |
<1.5 |
Adjusting Q frequency |
20—100KHz |
Marking range (mm) |
100×100(can be enlarged at 160×160area) |
Marking depth |
≤0.1mm |
Linear speed |
≤7000mm/s |
Min line width |
0.008mm |
Min character |
0.3mm |
Repeat accuracy |
±0.001mm |
Power supply |
220V±22V / 50Hz / 7A |
Overall power consumption |
200W |
Main machine dimension |
535 mm X435 mm X710 mm |
Weight of Whole machine |
60KG |
Control system dimension |
Integration |
Samples Chart:
