LD-EG-603B-L Larger Scale Rapid Scanner Laser Subsurface engraving machine is new developed by our company, it can be used to engrave 2D, 3D images, individual figures in crystal and glass products, the maximum engraving range is 460X460X100mm, the material size can be taken at 500x500x100mm. It could work for a large scale production of 2D, 3D animals & plants, architectures, models such as car, boat, airplane etc, and 3D scene show, it suitable for network and chain management.
Advantage:
LD-EG-603B-L Larger Scale Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technology together with 3 KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively. The key parts of the apparatus mainly come from Germany and the USA. This machine is suitable for individual production and batch fast process. Just one machine could be satisfied with capacity for both storefronts network distribution and electric-business distribution.
|
LD-EG-603B-L Larger Scale Laser Sub-surface Engraving Machine |
Parameter |
Product main technical index |
Laser Medium |
Diode Pump (German) + YAG (USA) |
F-theta lens(mm) |
F:100 (German) |
|
Pump source |
Diode |
|
Diode Pump useful time |
20000 Hours |
|
Laser Wavelength |
532nm (Green Laser) |
|
Highest Frequency of Laser Power Supply |
3000 HZ |
|
Resolution (DPI) |
800-1200 |
|
Maximum Engraving Range |
460mm×460mm×100mm |
|
Crystal size |
500mm×500mm×100mm |
|
Engraving Speed |
120,000-180,000 dots/min |
|
Engraving time(558 crystal) |
1.5 minutes |
|
Engraving time(keychain) |
15 seconds |
|
Working Way |
1scanner + X-Y-Z |
|
Repeated location accuracy |
10μm |
|
Power Supply |
220V or 110V±10% 50Hz or 60Hz |
|
Power consumption |
1KW |
|
Laser Head Number |
1 |
|
Continuous Working Time |
12 hrs |
|
Working Current of the Whole Machine |
20 A |
|
Control System |
Servo control system |
|
Deadweight of Main Machine |
210kg |
|
Dimension of Main Machine |
1150x1150x1250mm |
|
Cooling system |
Cooling Way |
Air cooler or water cooler optional |
Best Environment |
Temperature |
15-30°C |
Relative humidity |
<75% |
|
After service |
Training time |
3-5 days |
Warranty |
1 year |
|
Maintenance |
Lifelong |
Remark: Diode-Pumped rapid scanner quality, air cooler. The engraving range is 460*460*100mm. Suitable for wedding photo studio, commercial promotion products etc.

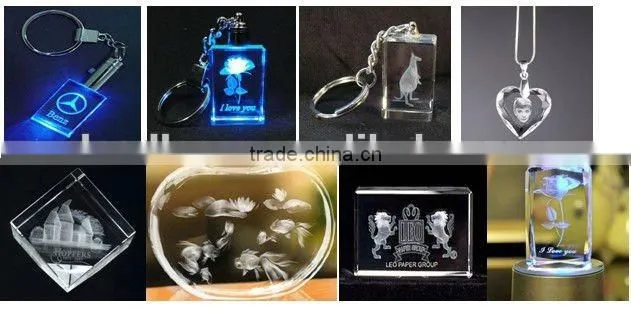

Samples Chart:
