Help CenterDynamic Technical 16 Heads Glass Souvenirs 3D Laser Engraving Machine
Related Products
-
Dynamic Technical 3D Religious Photo Crystal Applied Laser Inside Engraving MachineNegotiableMOQ: 1 Set -
Dynamic Technical Enlarged Engraving Size 3D Photo Crystal Inside Mini Laser Engraving Machine PriceNegotiableMOQ: 1 Set
-
Dynamic Technical Rapid Scanner 3D Portrait Image Crystal Mini Laser EngraverNegotiableMOQ: 1 Set
-
Valuable Technical Larger Size Compact Structure Glass 3D Photo Inside Laser Engraving MachineNegotiableMOQ: 1 Set
-
Valuable Technical Upgraded 8 Heads Crystal Souvenirs 3D Laser Engraving MachineNegotiableMOQ: 1 Set

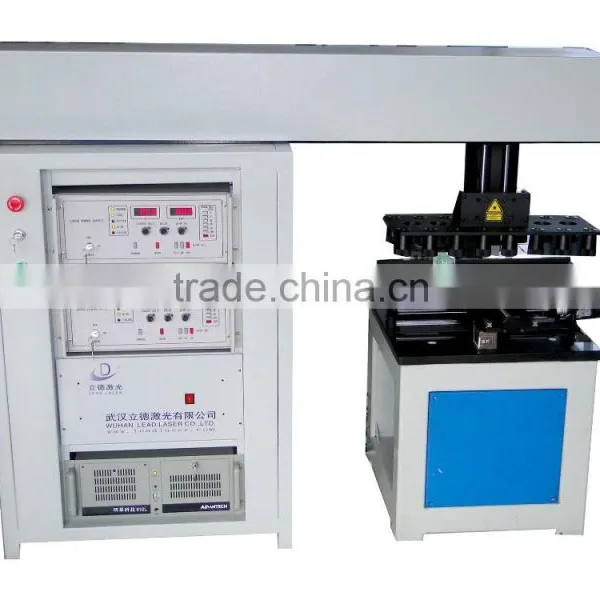

Laser subsurface engraving machine is laser processing equipment integrating optics, machinery, and electron. It adopts the laser technology, computer control technology, and high precision, high efficient Servo control system. The machine can engrave all kinds of exquisite perfect three-dimensional pattern inside the transparent crystal glass in different specs and shapes. LD-EG-501-16 laser Sub-surface Engraving Machine is 16 heads laser machine; it could engrave the image in16pcs blank crystal at same time. It suitable for the crystal gifts group working. The products will give person pure-clear crystal and fine noble visual image impression, which is ingenious for your home decoration.
16 heads 3D Crystals Souvenirs Mass Production Models
|
Item |
Parameter |
Product main technical index |
Laser Medium |
YAG Rod |
Medium origin |
China |
|
Pump Sources |
Xe lamp |
|
Xe lamp lifetime |
300-600 Hours |
|
Laser Wavelength |
532nm (Green Laser) |
|
Highest Frequency of Laser Power Supply |
100HZ |
|
Power of Servo Motors |
3×200W |
|
Maximum Engraving Range |
300mm×300mm×100mm |
|
Engraving Speed |
4000~6000dots/min |
|
Engraving time(558 crystal) |
30 minutes |
|
Engraving time(keychain) |
6 minutes |
|
Working Way |
X-Y-Z |
|
Repeated location accuracy |
5 μm |
|
Power of Laser Power Supply |
2KW |
|
Power consumption |
4KW |
|
Laser Head Number |
16 |
|
Continuous Working Time |
12 hrs |
|
Working Current of the Whole Machine |
20 A |
|
Control System |
Servo control system |
|
Deadweight of Main Machine |
230 kg |
|
Dimension of Main Machine (L+W+H) |
1580mm×580mm×1400mm |
|
|
Technical index of circulating water cooler
|
Cooling Power |
3 KW |
Water Medium |
deionized water or pure water |
|
Refrigerating medium |
R407C(environment friendly) |
|
Water Supply Pressure |
0.1 Mpa |
|
Consumed Power |
< 2KW |
|
Weight |
90 kg |
|
Dimension (L+W+H) |
530mm×700mm×910mm |
|
Environment |
Temperature |
15-30°C |
Relative humidity |
<75% |
|
After service |
Training time |
5 days |
Samples Chart:
