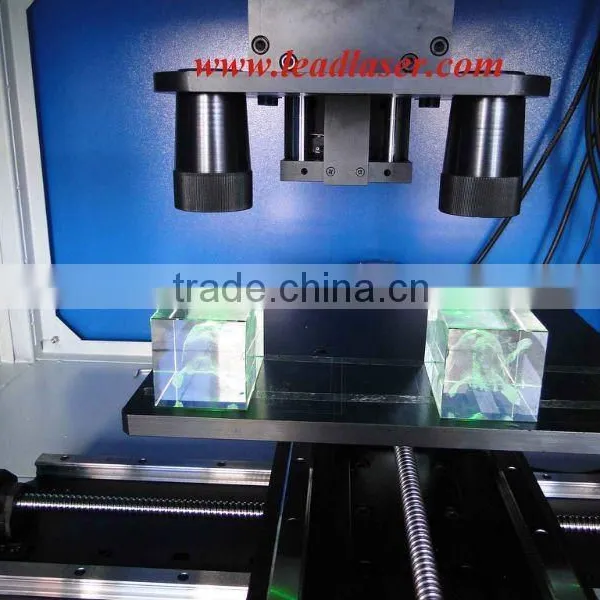

Laser subsurface engraving machine is laser processing equipment integrating optics, machinery, and electron. It adopts the laser technology, computer control technology, and high precision, high efficient Servo control system. The machine can engrave all kinds of exquisite perfect three-dimensional pattern inside the transparent crystal glass in different specs and shapes. LD-EG-502 laser Sub-surface Engraving Machine is 2 heads laser machine; it could engrave the image in 2pcs blank crystal at same time. It suitable for the crystal gifts group working. The products will give person pure-clear crystal and fine noble visual image impression, which is ingenious for your home decoration.
|

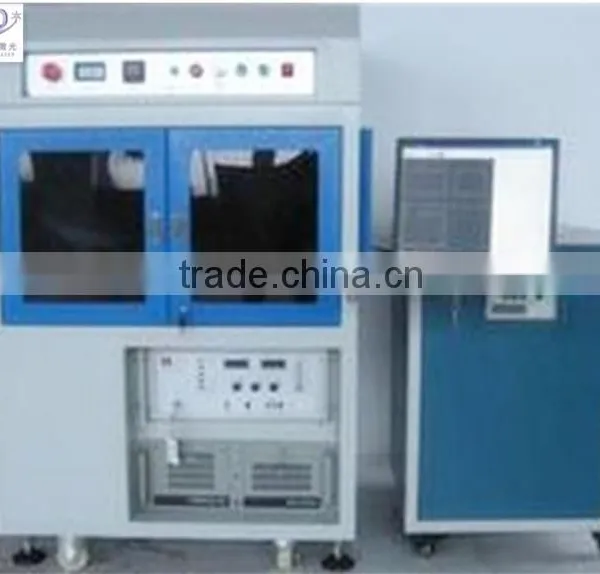

LD-EG-502 Laser Sub-surface Engraving Machine |
Parameter |
Product main technical index |
Laser Medium |
YAG Rod |
Medium origin |
China |
|
Pump Sources |
Xe lamp |
|
Xe lamp lifetime |
300-600 Hours |
|
Laser Wavelength |
532nm (Green Laser) |
|
Highest Frequency of Laser Power Supply |
200HZ |
|
Resolution (DPI) |
500-800 |
|
Maximum Engraving Range |
300mm×300mm×100mm |
|
Engraving Speed |
12,000 dots/min |
|
Engraving time(558 crystal) |
15 minutes |
|
Engraving time(keychain) |
4 minutes |
|
Working Way |
X-Y-Z |
|
Repeated location accuracy |
5 μm |
|
Power Supply |
220V or 110V±10% 50Hz or 60Hz |
|
Power consumption |
3KW |
|
Laser Head Number |
1-2 |
|
Continuous Working Time |
12 hrs |
|
Working Current of the Whole Machine |
20 A |
|
Control System |
Servo control system |
|
Deadweight of Main Machine |
200 kg |
|
Dimension of Main Machine |
750mm×775mm×1310mm |
|
|
Technical index of circulating water cooler
|
Cooling Power |
3 KW |
Water Medium |
deionized water or pure water |
|
Refrigerating medium |
R407C(environment friendly) |
|
Water Supply Pressure |
0.1 Mpa |
|
Consumed Power |
< 2KW |
|
Weight |
120kg |
|
Dimension |
650mm×650mm×875mm |
|
Environment |
Temperature |
15-30°C |
Relative humidity |
<75% |
|
After service |
Training time |
4 days |
Warranty |
1 year |
|
Maintenance |
Lifelong |

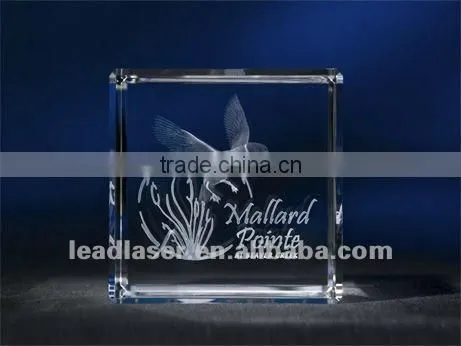

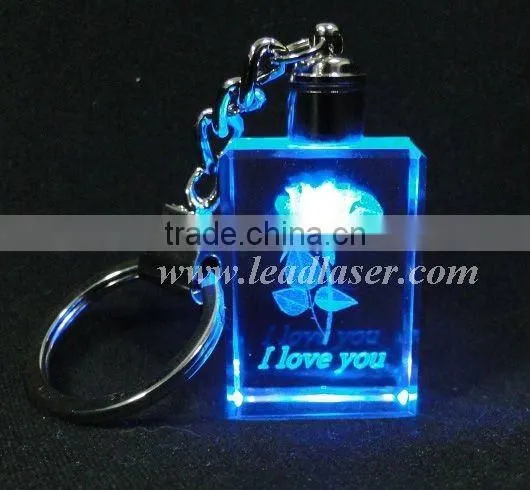

Samples Chart:
