factory price 23AWG Twisted 4 Pair Multicolo cat5e patch cable pinout
Introduction
A Cat 5e (Category 5e) Cable is an Ethernet network cable standard that consists of four twisted pairs of copper wire terminated by RJ45 connectors. It is based on the EIA/TIA 568 Commercial Building Telecommunications Wiring Standard developed by the Electronics Industries Association.
Cable Structure Details
1.Conductor:
Material: solid BC,CCA,CCS,CCAM
Numbers of pairs: 4 pairs (8 wires )
AWG:24AWG
Conductor diameter: 0.51mm+/-0.02mm
2.Insulation:
Material: PE or HDPE
Diameter: 0.91mm+/- 0.02mm
Average thickness: 0.212mm
Minimum thickness: 0.2095mm
3.Sheath:
Material: PVC
Diameter: 5.2mm+/-0.2mm

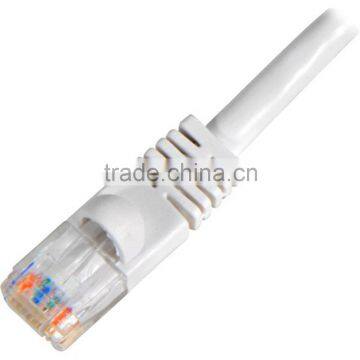

Product show
Electrical Specifications
| Dielectric strength | 2.5KV dc-2seconds |
| Conductor resistance | Max 9.38ohm/100M at 20°C |
| Max. ring resistance | 16.8 ohm/100M at 20°C |
| Max. mutual capacitance | 560 pf/100M |
| Max. capacity unbalance | 330 pf/100M |
| Standard impedance | 100±15 ohm between 1Mhz and 100Mhz |
| Minimum bending radius | 60mm |
| Working temperatures | -20~60°C |
| DTX1800 Fluke Link test | 100% pass 90meters Link test |
| Network Analyzer | 100% pass 305meters network analyzer test |
| Frequeney | Impedance | RL | Attenuation | Next | Elfext | Psnext | Delay |
| ohm | dB | dB/100m | dB | dB | dB | Ns/100m | |
| 0.772 | 100+/-15 | 19.4 | 1.8 | 67 | 64 | 66 | 574 |
| 1 | 20 | 2 | 65.3 | 62.3 | 63.8 | 570 | |
| 4 | 23 | 4.1 | 56.3 | 53.3 | 51.7 | 552 | |
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 546 | |
| 10 | 25 | 6.5 | 50.3 | 47.3 | 43.8 | 545 | |
| 16 | 25 | 8.2 | 47.3 | 44.3 | 39.7 | 543 | |
| 20 | 2 | 9.3 | 45.8 | 42.8 | 37.7 | 542 | |
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 541 | |
| 31.3 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 540 | |
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 | 538 | |
| 100 | 20.1 | 22 | 35.3 | 32.3 | 23.8 | 537 |
Industry Applications
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
