Hiqh Quality Free Sample Fiber Patch Cord ROHS Approval Cat6 Patch Cord 2m 3m 5m
US$ 0.2 - 0.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
N-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UTP Cat 6 Patch Cord/ Patch Cabel 1m Ftp/ Patch Cord Ftp for InternetUS$ 0.22 - 2.25MOQ: 1000 Pieces -
Unshielded Patch Cord/ Cat6 Networking Patch CordUS$ 0.22 - 2.25MOQ: 1000 Pieces
-
Cat5e UTP Network Cable With High QualityUS$ 0.03 - 0.5MOQ: 1000 Meters
-
RJ45 NETWORKING PATCH CABLE CAT5EUS$ 0.03 - 0.5MOQ: 1000 Meters
-
Cat 5e Type and 8 Number of Conductors Networking Cable/ Digi-link Cat5e CableUS$ 0.03 - 0.5MOQ: 1000 Meters
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
N-10
Type
Cat 6
Number of Conductors
8
hiqh quality free sample fiber patch cord ROHS approval cat6 patch cord 2m 3m 5m
Product Description
Product Description:
| data specifications | |
| Innner conductor | solid bare copper |
| Conductor Dia. | 23awg |
| Insulation | PE |
| Insulation Dia. | 0.98±0.02mm |
| Cross | PVC |
| Jacket | PVC |
| Nominal O.D | 6.3±0.2mm |
| Pairs color code | |
| Pair 1 | Blue-white/blue |
| Pair 2 | Orange-white/orange |
| Pair 3 | Green-white/green |
| Pair 4 | Brown-white/brown |
| Electrical Specifications | ||||
| Dielectric strength | 2.5kv dc-2seconds | |||
| Conductor resistance | Max 9.38ohm/100mt at 20℃ | |||
| Max ring resistance | 16.8ohm/100mt at 20℃ | |||
| Max mutual capacitance | 530pf/100mt | |||
| Max capacity unbalance | 1100pf/100mt | |||
| Impedance | 100±15%ohm at 1~250MHz | |||
| Frequency(Mhz) | Return loss(dB) | ATT (dB/100) | NEXT(dB) | PS-NEXT (dB) | ELFEXT (dB) | PS-ELFEXT (dB) |
| 1 | 20.0 | 1.9 | 74.0 | 65.0 | 68.0 | 65.0 |
| 4 | 23.0 | 3.7 | 65.0 | 53.0 | 56.0 | 53.0 |
| 8 | 24.5 | 5.3 | 60.7 | 46.9 | 49.9 | 46.9 |
| 10 | 25.0 | 5.9 | 59.0 | 45.0 | 48.0 | 45.0 |
| 16 | 25.0 | 7.5 | 56.0 | 40.9 | 43.9 | 40.9 |
| 20 | 25.0 | 8.4 | 55.0 | 39.0 | 42.0 | 39.0 |
| 25 | 24.3 | 9.5 | 53.3 | 37.0 | 40.0 | 37.0 |
| 31.25 | 23.6 | 10.6 | 52.0 | 35.0 | 38.1 | 35.0 |
| 62.5 | 21.5 | 15.4 | 47.0 | 29.1 | 32.1 | 29.1 |
| 100 | 20.1 | 19.8 | 44.0 | 25.0 | 28.0 | 25.0 |
| 200 | 18.0 | 29.0 | 40.0 | 19.0 | 22.0 | 19.0 |
| 250 | 17.3 | 32.8 | 38.0 | 17.0 | 20.0 | 17.0 |

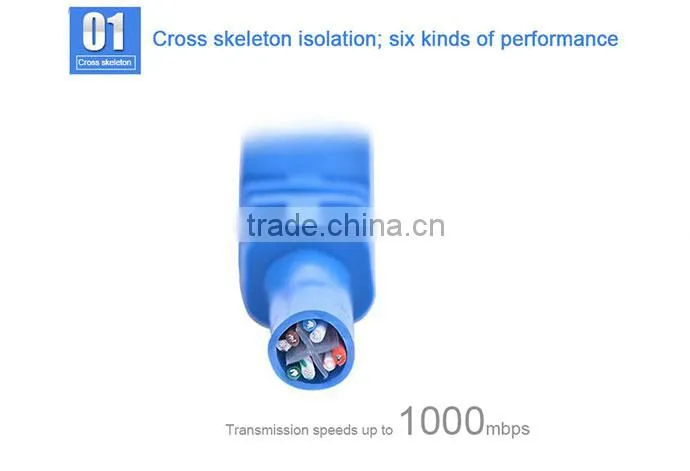

Product Show:

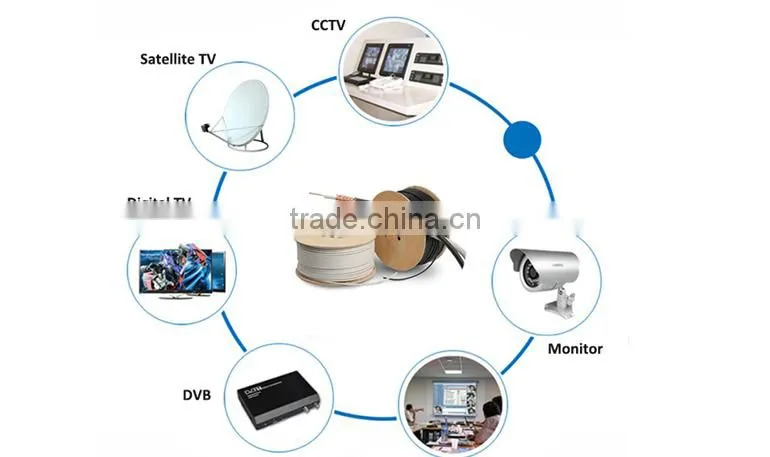

Application:
Mainly uses in the building correspondence synthesis wiring system the work area correspondence leading-out terminal and between the connection distribution frame wiring, as well as the housing synthesis wiring system's user correspondence leading-out terminal arrives at place of exile between coil's wiring.
Company Information
Packaging & Shipping
Trade process
| Payment | T/T based on your quantity | |||||||
| Packing Details |
1)Packing length:305m/roll, 500m/roll or as client's request. 2)Inner packing: Easy pull box. 3)Outer packing: Carton box. 4)Other packing is available according client's request. |
|||||||
| Delivery time | 5-15days after confirmed | |||||||
| Sample | Sample is free,we cooperate with DHL,TNT,UPS,FEDEX,EMS,China Air Post, ect | |||||||
| Port | Guangzhou/Shenzhen | |||||||
| MOQ | 50 Box | |||||||
| Discount | We can offer when your order is over 100 boxes | |||||||
