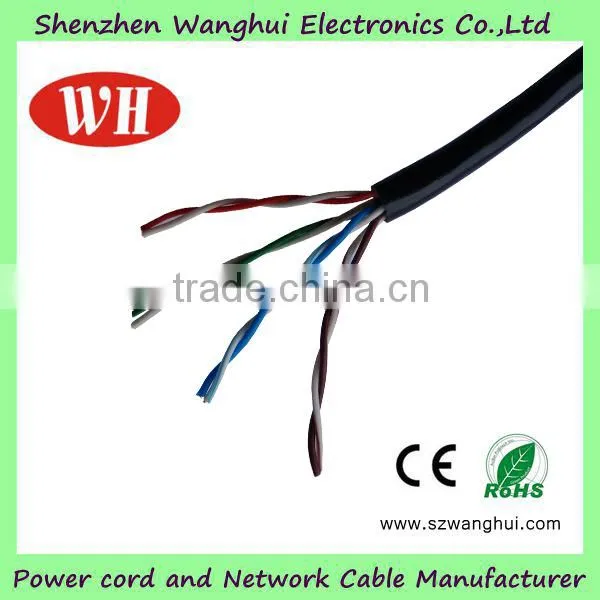

Networking cable armoured cat 5e cable black cmr solid utp
Introduction
A Cat 5e (Category 5e) Cable is an Ethernet network cable standard that consists of four twisted pairs of copper wire terminated by RJ45 connectors. It is based on the EIA/TIA 568 Commercial Building Telecommunications Wiring Standard developed by the Electronics Industries Association.
Cable Structure Details
1.Conductor:
Material: solid BC,CCA,CCS,CCAM
Numbers of pairs: 4 pairs (8 wires )
AWG:24AWG
Conductor diameter: 0.51mm+/-0.02mm
2.Insulation:
Material: PE or HDPE
Diameter: 0.91mm+/- 0.02mm
Average thickness: 0.212mm
Minimum thickness: 0.2095mm
3.Sheath:
Material: PVC
Diameter: 5.2mm+/-0.2mm
Electrical Specifications
Dielectric strength |
2.5KV dc-2seconds |
Conductor resistance |
Max 9.38ohm/100M at 20°C |
Max. ring resistance |
16.8 ohm/100M at 20°C |
Max. mutual capacitance |
560 pf/100M |
Max. capacity unbalance |
330 pf/100M |
Standard impedance |
100±15 ohm between 1Mhz and 100Mhz |
Minimum bending radius |
60mm |
Working temperatures |
-20~60°C |
DTX1800 Fluke Link test |
100% pass 90meters Link test |
Network Analyzer |
100% pass 305meters network analyzer test |
Your Satisfaction is Our Pursuit! If There is Any Question About Utp cat5e cable , Please Do Not Hesitate to Contact Me:
Skype: Nancy-cai07
Packing Details |
1)Packing length:305m/roll, 500m/roll or as client's request. 2)Inner packing: Easy pull box. 3)Outer packing: Carton box. 4)Other packing is available according client's request. |
Delivery date |
5-15days after confirmed. |
Why chose us? |
1.Professional Manufacturer is specialized in producing high quality power cord, network lines,audio lines & other computer peripherals wire. |
2.Gold supplier on Alibaba & 10years for product experience. |
3.Widely used in household applicance digital products,machine and indusry equipment. |
Shenzhen Wanghui Electronic Co., Ltd is established in 2000. With the advanced equipment and skilled workers, we became a professional manufacturer of high quality power cords, power plugs and network cables.Our company is located in Huaqiang North, Shenzhen, China. It’s convenient for you to visit us and take a look in our products. Also, to provide our customers the best service, OEM/ODM is welcomed!
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
1. Is you company a factory or a trading company?
-Factory.
2. Can I get a sample ?
-Sure. The sample is free. You just need to pay the freight.
3. Where is your company? Can I visit your company?
-Our company is located in Huaqiang North, Shenzhen. Welcome to visit us.
4. I can't find what I want! Can you supply OEM Service?
-Of course. If you can't find the right power cord, power plug or network cable, just contact us and provide us with some details.
5. What's your advantage?
-Firstly, we have our own factory, so the price is reasonable and the quality is reliable. Secondly, our company is located in Huaqiang North, you can come to our office to check the goods and talk about the order easily.
If you are interested in it, please send me an inquiry! Thank you.
