Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > China Manufacturer FTP CAT5e Rs485 Communication Cable

China Manufacturer FTP CAT5e Rs485 Communication Cable

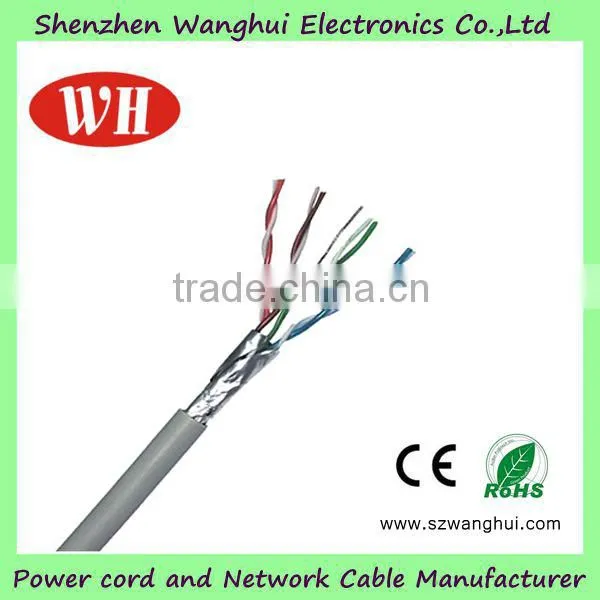

China Manufacturer FTP CAT5e Rs485 Communication Cable photo-1

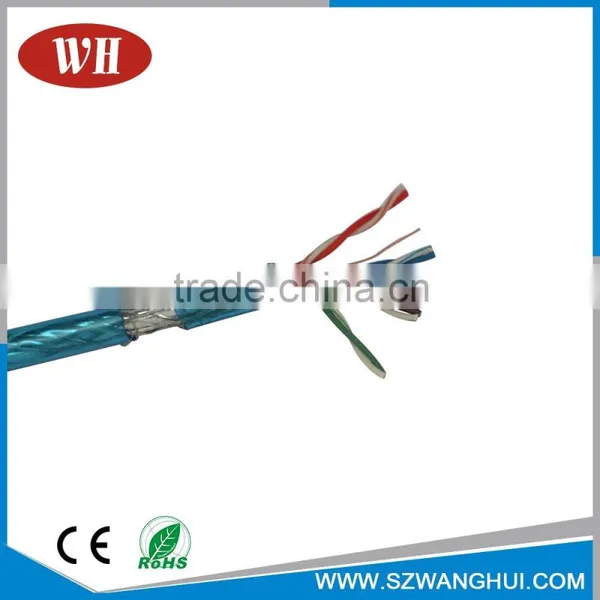

China Manufacturer FTP CAT5e Rs485 Communication Cable photo-2

US$ 7 - 15 MOQ: 50 Boxes

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

N-05

Contact Supplier Request Quote Chat Now

Shenzhen Wanghui Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number N-05

Number of Conductors 8

China Manufacturer FTP CAT5e rs485 Communication Cable

Product Description

Feature:

1. rs485 communication cable

2. Conductor: BC/CCC/CCA/ 0.4mm~0.52mm

3. Conductor Diameter: 0.5 ± 0.01mm (24AWG)

4. Insulation : PE( Thickness: ≥ 0.18mm; Diameter: 0.91 ± 0.01mm)

5. Shielded Layer: Aluminum Foil

6. Jacket : PVC / LSZH ( color optional )

7. Jacket Thickness: ≥ 0.55mm

8. Nominal O.D: 5.20mm ± 0.10mm

9. Rated Temperature: -40°C ~ + 75°C

10. Impedance: 100±15% Ω at 1 ~100MHz

Technical Specification:

Conductor resistance (maximum)	Ω/km(20 °C )	95
Mutual pairs capacitance	nf/km	54
Dielectric strength(DC test voltage for 1min)	DC(V)	1000
Insulation Resistance (minimum)	MΩ.km	5000

Attenuation:

Frequency	Return Loss	Attenuation	NEXT	PSNEXT	ELFEXT	PSELFEXT	Characteristic Impedance	Transmission Delay
MHZ	≥ dB	≤ dB	≥dB	≥ dB	≥dB	≥ dB	Ω	≤ns/100m
1.0	20.0	2.0	65.3	62.3	64.0	61.0	100±15	570.0
4.0	23.0	4.1	56.3	53.3	52.0	49.0	100±15	552.0
10.0	25.0	6.5	50.3	47.3	44.0	41.0	100±15	545.4
16.0	25.0	8.2	47.2	44.2	39.9	36.9	100±15	543.0
20.0	25.0	9.3	45.8	42.8	38.0	35.0	100±15	542.0
31.25	23.6	11.7	42.9	39.9	34.1	31.1	100±15	540.4
62.5	21.5	17.0	38.4	35.4	28.1	25.1	100±15	538.6
100.0	20.1	22.0	35.3	32.3	24.0	21.0	100±15	537.6

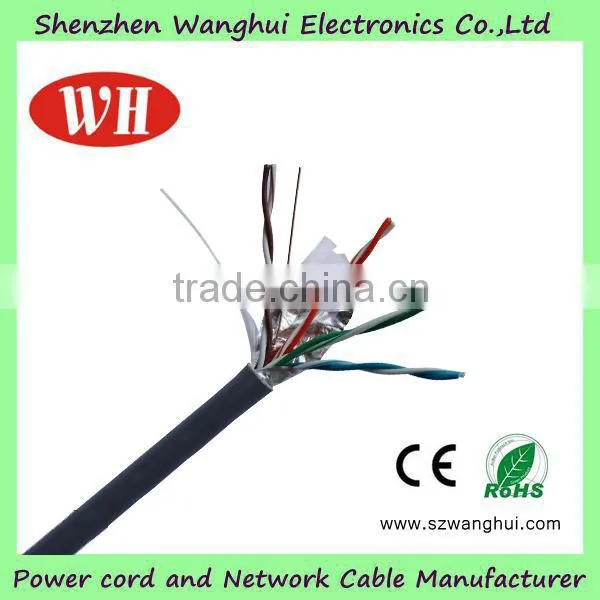

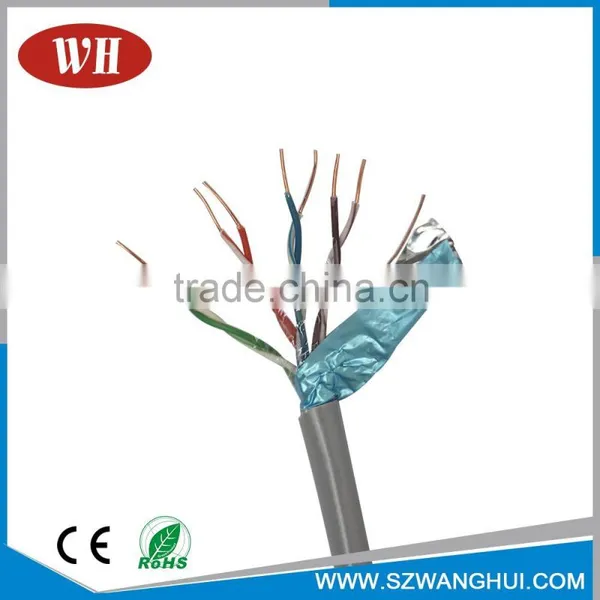

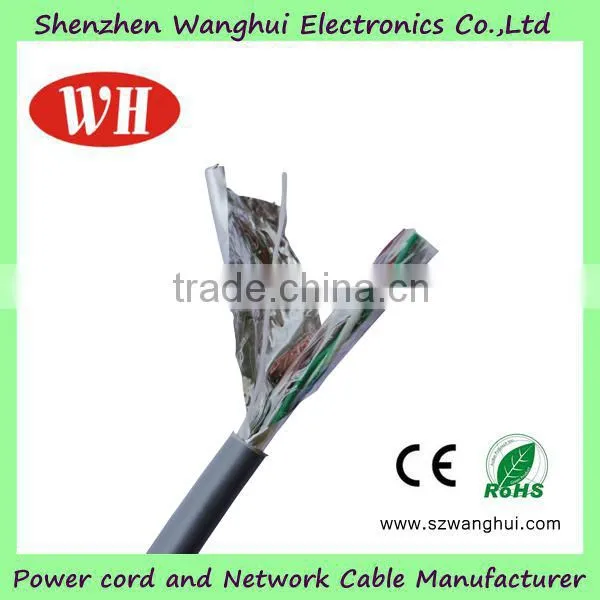

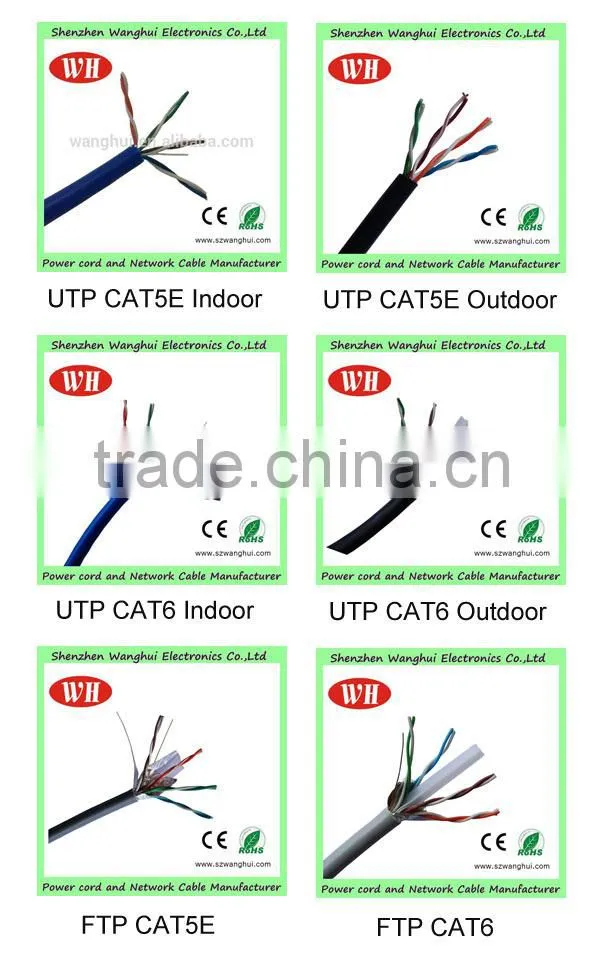

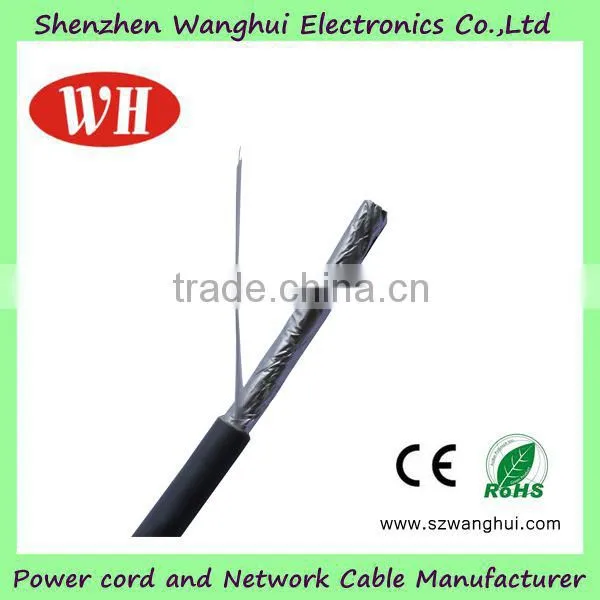

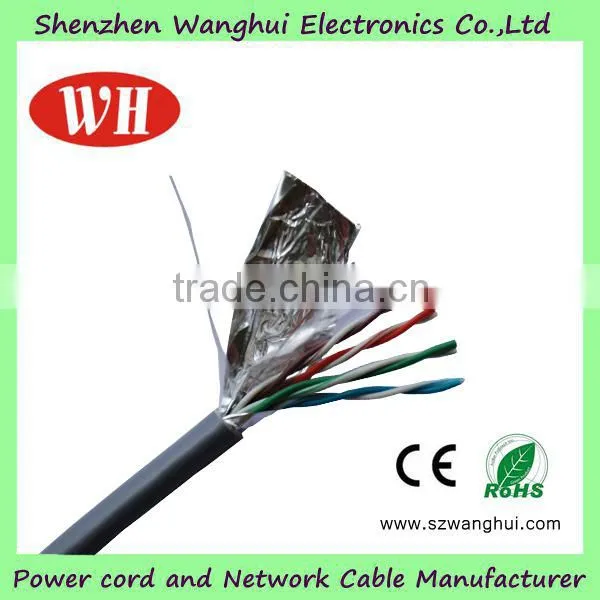

Picture:

Packaging & Shipping

Packing Detail	Normal packing or as your request
Delivery Time	Depend on the quantity

Our Services

Good Service

Fast Response

OEM/ODM

Want to know more network cables? Please kindly visit our website: https://img13.fr-trading.com/

Company Information

Shenzhen Wanghui Electronics Co., Ltd is established in 2000. With the advanced equipment and skilled workers, we became a professional manufacturer of high quality power cords, power plugs and network cables.

Our company is located in Huaqiang North, Shenzhen, China. It’s convenient for you to visit us and take a look in our products. Also, to provide our customers the best service, OEM/ODM is welcomed!

FAQ

1. Is you company a factory or a trading company?

-Factory.

2. Can I get a free sample of power cord?

-Sure. The sample is free. You just need to pay the freight.

3. Where is your company? Can I visit your company?

-Our company is located in Huaqiang North, Shenzhen. Welcome to visit us.

4. I can't find what I want! Can you supply OEM Service?

-Of course. If you can't find the right power cord, power plug or network cable, just contact us and provide us with some details.

5. What's your advantage?

-Firstly, we have our own factory, so the price is reasonable and the quality is reliable. Secondly, our company is located in Huaqiang North, you can come to our office to check the goods and talk about the order easily.

Any question, just feel free to let us know. Thank you.
