Help CenterMR-500D Portable Fingerprint Scanner Device 5-in-1 for Vote and Election Device, EMV Card Reader Writer
Related Products
-
MR-300D EMV Biometrics Card Reader 3-in-1: Contact Card Reader / Contactless Card ReaderUS$ 10 - 300MOQ: 500 Sets -
MR-500D Biometric Card Reader 5-in-1: MRS Magntic Swipe Card Reader Writer (MRS), Contact / Contactless EMV Card Reader WriterUS$ 10 - 300MOQ: 100 Sets
-
MR-500D Card-swipe-machine Smart Card Reader for Bank Teller Biometric Contact Card Reader Magnetic Swipe Card ReaderUS$ 10 - 500MOQ: 100 Sets
-
MR-500D Fingerprint Smart Card Reader 5-in-1 for Vote and Election Device With Fingerprint Reader DeviceUS$ 10 - 300MOQ: 500 Sets
-
MR-300D USB Fingerprint Reader Biometrics Smart Card Reader Contact & Contactless 3-in-1 for Voting BankUS$ 10 - 300MOQ: 500 Sets
Specifications
the biometric machine includes fingerprint module, contactless IC card, contact IC card, magnetic swipe reader writer. bank, EMV1.Functional Description

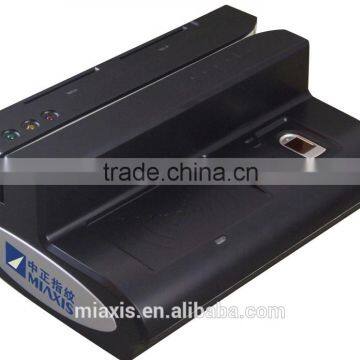

The product MR-500D is a portable fingerprint reader device 5-in-1. The device integrates a semiconductor fingerprint reader, contact IC card reader and contactless IC card reader, magnetic strip card. The product has the following features:

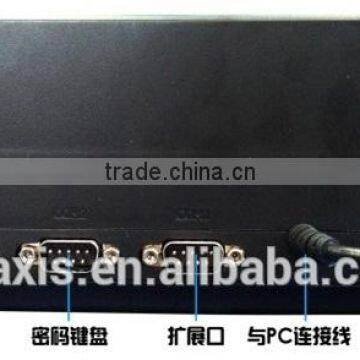

1) Single hardware interface: the hardware interface applies either RS232 interface or USB interface.
2) Strong functionality: the product integrates the semiconductor fingerprint module, contact IC card reader and contactless IC card reader.
3) Easy to use: the device can be integrated easily with fingerprint module, plus contact IC card reader or contactless IC card reader. The drive can be adapt itself and used as plug-in machine.
4) Easy to maintenance: it is possible to be maintained remotely with few instructions.
2. Fingerprint module description
2.1 Functional description
- The fingerprint module obtains the certification from China Financial Certification Authority and the Ministry of public security.
- The sensor of fingerprint module is made from capacitor fingerprint reader. It has the functionality to identify living finger.
- The main parts of fingerprint module follow the industrial standard.
- The fingerprint module has the function of fingerprint image acquisition, image processing, feature extraction, feature storage and fingerprint matching.
- The fingerprint module works very stable and consistence with different devices.
- The fingerprint module deals good with dry finger, we finger, broken finger or dirty finger. The fingerprint matches smoothly in each case.
- The fingerprint module SDK can be based on Unix, Linux or Windows platforms.
- The demo software SDK has the details with detailed notes and supplementary explanation.
2.2 Technical specifications
Product type |
Capacitor (USB interface, RS-232 interface) |
|
Brand |
Miaxis biometrics Co. Ltd. |
|
Main configuration |
Capacitor sensor, embedded fingerprint software |
|
Type |
Name |
description |
Fingerprint Algorithm |
Time to record fingerprint image |
Less than 1 second |
Match method |
1 : 1 or 1: N |
|
Match time(1 : 1) |
Less than 1 second |
|
Searching time |
Less than 1 second (1:512) |
|
Size of fingerprint template |
Less than 256 bytes |
|
Security levels |
Five levels |
|
FAR |
0.0001% |
|
FRR |
0.01% |
|
The amount of template |
512 |
|
Hardware key management function |
Including key production, key storage and key update |
|
Algorithm Engine |
Hardware digital signature and Identity authentication. Support 1024 bit RSA public key algorithm. The time period to produce the 1024 bit RSA public key algorithm is less than 1.5 s. |
|
Hardware encryption / decryption algorithm |
It has high speed hardware encryption algorithm and supports hardware DES / 3DES algorithm. |
|
The speed of digital signature |
The signature speed is 28 times/second with 1024 bit RSA algorithm. |
|
Random number generator |
Pass the test of international standard FIPS-140-2. |
|
Safety features |
It has the function of protecting DPA/SPA attack. |
|
Bus scrambling | ||
Data storage chip encryption | ||
Unique serial number | ||
Fingerprint sensor |
Type of sensor to support |
Capacitor sensor and inductor sensor |
Detect technology |
Living finger detect |
|
Detect position |
The dermis |
|
Resolution |
250DPI/363DPI/500DPI |
|
Anti-ESD ability |
IEC 61000-4-2 standard LEVEL 3 15KV |
|
Anti-EMI ability |
IEC 61000-4-2 standard |
|
Life time |
1 million times |
|
Applicability |
Wet finger, dry finger, dirty finger and broken finger |
|
Fingerprint COS |
Fit ISO7816 standard fingerprint COS system |
|
Data storage |
Storage capability |
2MB |
Storage method |
Flash ROM or RAM |
|
Power off protection |
The data can be saved inside Flash ROM about 40 years. |
|
Communication interface |
Interface metheds |
RS232/TTL/USB1.1/USB2.0 |
RS232 baud rate |
1200BPS to 115200BPS |
|
Interface to magnetic machine |
Support expansion application |
|
Input voltage |
Working voltage |
DC5V+-0.5V |
Working environment |
Working temperature |
-10 degree to 80 degree |
Storage temperature |
-20 degree to 90 degree |
|
Humidity |
20%RH to 90%RH |
|
Vibration |
10 to 55Hz |
|
Capability |
Operating systems |
SCO UNIX, AIX UNIX, WINDOWS, MAC, LINUX |
API interface |
Support the API interface of SCO UNIX, AIX UNIX, WINDOWS(98/2000/XP/VISTA), MAC, LINUX. We provide C/S, B/S application and API interface of Java. |
|
3.The descriptions of contactless IC card reading and writing module
- Fit the standard of Chinese financial industrial.
- Fit the standard of PBOC2.0 from Bank of China.
- The communication distance of contactless IC card: 0 to 10cm.
- Read and write time <=0.1s.
- Fit the standard of contactless IC card ISO14443 standard and PBOC2.O from Bank of China.
-
Working temperature: -10 degree to 50 degree
- Integrate two types of contact IC card: IC card and SAM card.
- Interface: support serial interface and USB interface
- Accord with ISO7816 standard.
- Accord with EMV standard and PBOC2.0 from Bank of China.
- IC card base: 2 of press down type card bases. Easy to use.
- Lifetime of IC card base: >=200k times plug in and out.
- Magnetic card standard: compatible with IBM, ISO, ANSI standard.
- Accord with bank card of Magnetic stripe data format and the use standard
- Support high and low density magnetic stripe card and read / write passbook.
- Life time of magnetic head >=500k times.
-
Accord with standard of Auxiliary port expansion box (BP Box)
- Support functions of serial strobe instructions, download and customization
- Support baud rate: 1200 to 115200.
- Support power with serial interface.
4.The description of contact IC card reading and writing module
5.Descriptions of Magnetic Strip Card reader and writer module
6.Specification of serial port expansion module
