Linyi Core veneer composer for plywood machine
Core veneer composer

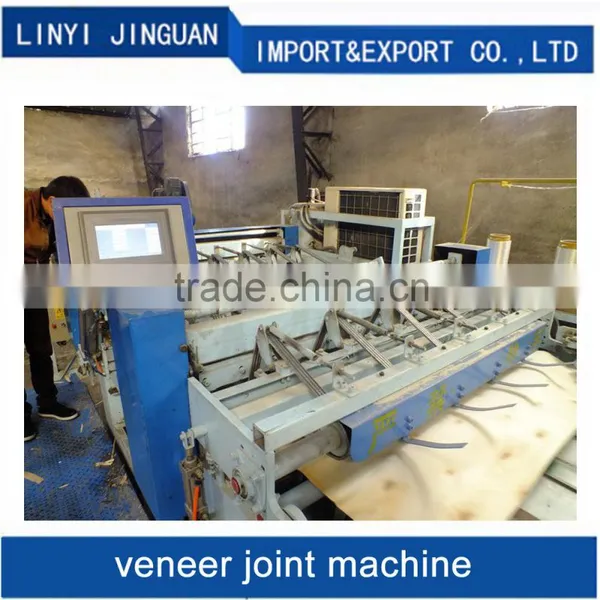

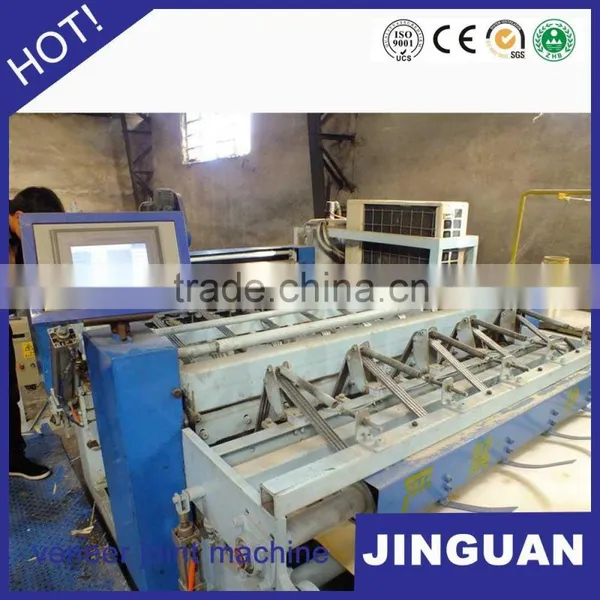

Core Veneer Joint
1. After tenderized using PLC controller to cut the edge, joint the core and piece cutting.
2. After the core has been tenderized. The strong blower device can remove the dust one the core veneer.
3. The PLC controller enables cutting more precise, it can available reduce the odd core. It helps control, monitor and maintenance more convenient.
4. The back-feeding wheel device is synchronizing with feeding speed, to avoid overlap or gap of the jointing core.
5. It is equipped with hot melt glue yarn for help jointing. Cooling water tank of glue yarn is circle well by the cooler. It gets the best joint.

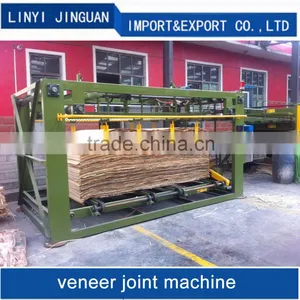

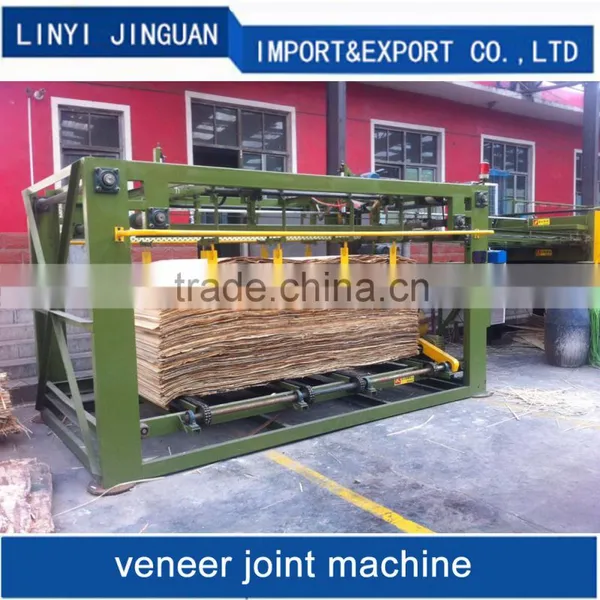

Stacker
Composed veneer after cutting, clearing dust, received by stacker.
1. In front of stacker, there is a strong blower to clear dust and clip for after stacking the core can be send to glue spread process directly.
2. The mid pressing bar and the side stacking wheel rack can be moved free for easy adjustment in the dimension easy to collection.
Main parameter:
| Core veneer builder | |
| Model | ZPSF3-3 |
| Working veneer width | 800-1270 mm (3-4ft) |
| Cutting veneer length | 1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft) |
| Working veneer thickness | 1.2-3.6 mm |
| Length of knife | 1400 mm |
| Feeding speed | 0-40m/min |
| Thickness detecting | 20 points |
| Over thickness detecting | 3 points |
| Electric power requirement | 380V-50Hz 3phase |
| Cutting power | 4.5kw X 1pc |
| Transfer power | 3kw X 2pcs |
| After the knife power | 3kw X 1pc |
| Raise power | 3kw X 1pc |
| Transfer power | 1.5kw X 3pcs |
| Push the veneer power | 1.5kw X 1pc |
| Heater power | 7.5kw |
| Glue Applicator power | 0.2kw |
| Cool Fan power | 0.75kw X 3pcs |
| Refrigeration system | 1.5Hp |
| Air compressor power | 3.7kw (6kg/cm) |
| Area occupied (W x L) | 2300X13000mm |
| Main machine | 3800X2300X2200mm |
| Push veneer system | 4000X1900X2300mm |
| Output | 300-350pcs/hour (4x8ft) |
| Weight | 5000kgs |
| Shipping measurement | 25cbm |

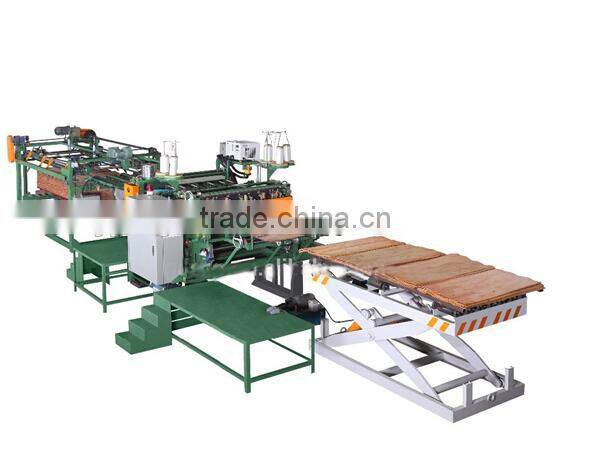

Core veneer composer :

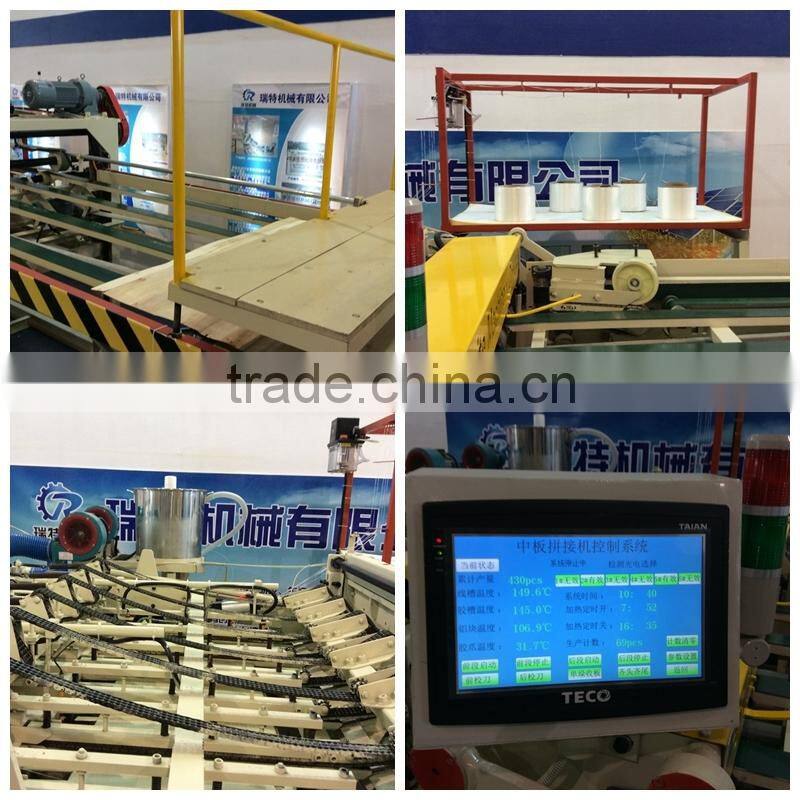

Core veneer composer details:
Core veneer composer splicing products exhibition:
Pre-sale services:
1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4> Welcome to visit our factory
Services during the sales:
1> Inspect the machine before leaving the factory.
2> Oversea install and debug the equipment
3> Train the first-line operator.
