Plywood veneer China / Core Veneer Composer Machine / Core veneer composer
The Fourth Generation
Servo- control core veneer jointing machine
This model is fit for plywood making, three plywood, sandwich plate, floor board material, furniture board, building templates, container plate, melamine ecological board, block board, etc. Cross-link of Peeled core veneer ( sandwich board), it is to join core veneer uneven in length, irregular veneer, or regular veneer and make these material into a big whole veneer. This style improved the traditional veneer forming method, saved the cost of repairing veneer, upgraded the veneer quality, and increased the production efficiency
| Main Technology Parameters |
| Full Servo Technology Parameters | ||||
| Title | Power | Sets | Origin | Designation |
| Cut | 3KW | 1 | Taiwan | TECO |
| Transfer | 3KW | 1 | Taiwan | TECO |
| Transfer | 3KW | 1 | Taiwan | TECO |
| After the knife | 3KW | 1 | Taiwan | TECO |
| Ascension | 3KW | 1 | Rushan | LEADGO |
| Transfer | 1.5KW | 1 | Rushan | LEADGO |
| Push the crib | 1.5KW | 3 | Rushan | LEADGO |
| Refrigeration device | 3.5KW | 1 | Zhuhai | Gree |
| Overalldimensions | 3.8MX2.3MX2.2M;4MX1.9MX2.3M | |||
| Gross weight | 7.5T | |||
| The total power | 22.5KW | |||
| Product size | 2.3MX13M | |||
| Whole Machine Show |
Core veneer composer
Core veneer composer
| Production Shop |
| Details Show |
| Working Principles And Features |
Working Principles
This machine is for the dry veneer, which is uneven in length, non-uniform in thickness, irregular or regular. This machine will automatically do the width detecting, thickness separating, hole detecting, edge cutting, glue spreading and jointing, cutting to size, stacking, and make the whole core veneer as your needs.
Features Advantages
1. PLC computer control, one worker operation, automatic process, labor cost saving
2. High precision detecting, cutting size in minimum.
3. Servo control makes it precise location and effectively control the overlap seam.
4. Use dedicated high-strength heat melts glue thread to stop the veneer breaking.

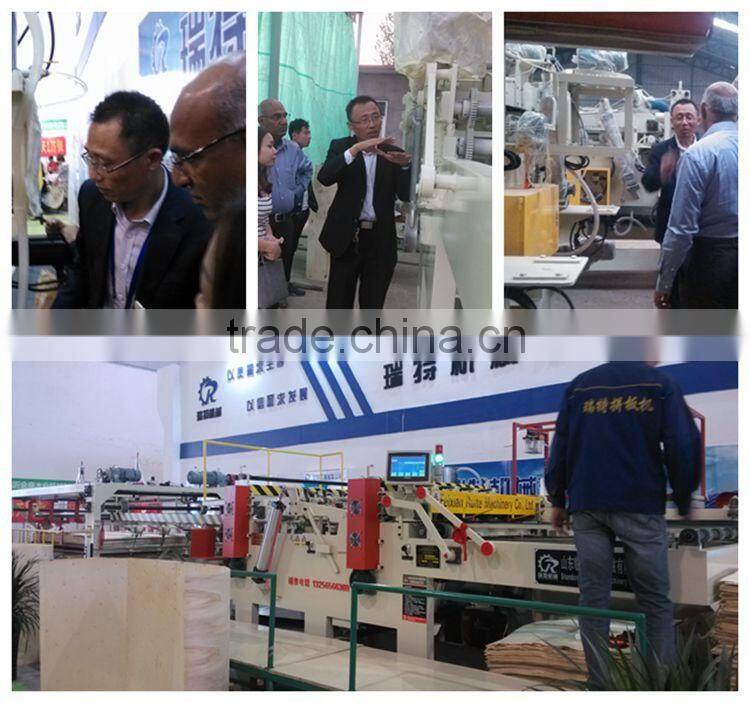

| Visiting Factory And Exhibition |
