Automatic Plywood Core Veneer Jointing Machine
| Veneer Jointing Machine | ||||
| Title | Power | Sets | Origin | Designation |
| Cut | 3KW | 1 | Taiwan | TECO |
| Transfer | 3KW | 1 | Taiwan | TECO |
| Transfer | 3KW | 1 | Taiwan | TECO |
| After the knife | 3KW | 1 | Taiwan | TECO |
| Ascension | 3KW | 1 | Rushan | LEADGO |
| Transfer | 1.5KW | 1 | Rushan | LEADGO |
| Push the crib | 1.5KW | 3 | Rushan | LEADGO |
| Refrigeration device | 3.5KW | 1 | Zhuhai | Gree |
| Overalldimensions | 3.8MX2.3MX2.2M;4MX1.9MX2.3M | |||
| Gross weight | 7.5T | |||
| The total power | 22.5KW | |||
| Product size | 2.3MX13M | |||

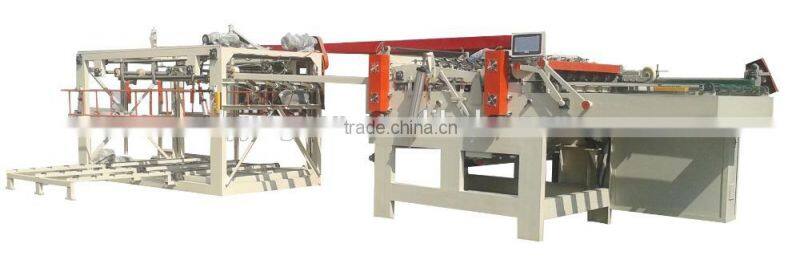

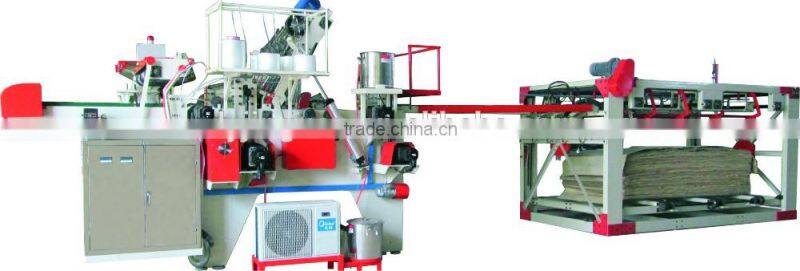

Core veneer jointing machine
Core veneer jointing machine
Core veneer jointing machine
Core veneer jointing machine
Splicing Products Exhibition
Working Principles
This machine is for the dry veneer, which is uneven in length, non-uniform in thickness, irregular or regular. This machine will automatically do the width detecting, thickness separating, hole detecting, edge cutting, glue spreading and jointing, cutting to size, stacking, and make the whole core veneer as your needs.
Features Advantages
1. PLC computer control, one worker operation, automatic process, labor cost saving
2. High precision detecting, cutting size in minimum.
3. Servo control makes it precise location and effectively control the overlap seam.
4. Use dedicated high-strength heat melts glue thread to stop the veneer breaking.
Pre-sale services:
1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4> Welcome to visit our factory
Services during the sales:
1> Inspect the machine before leaving the factory.
2> Oversea install and debug the equipment
3> Train the first-line operator.
