Product Description

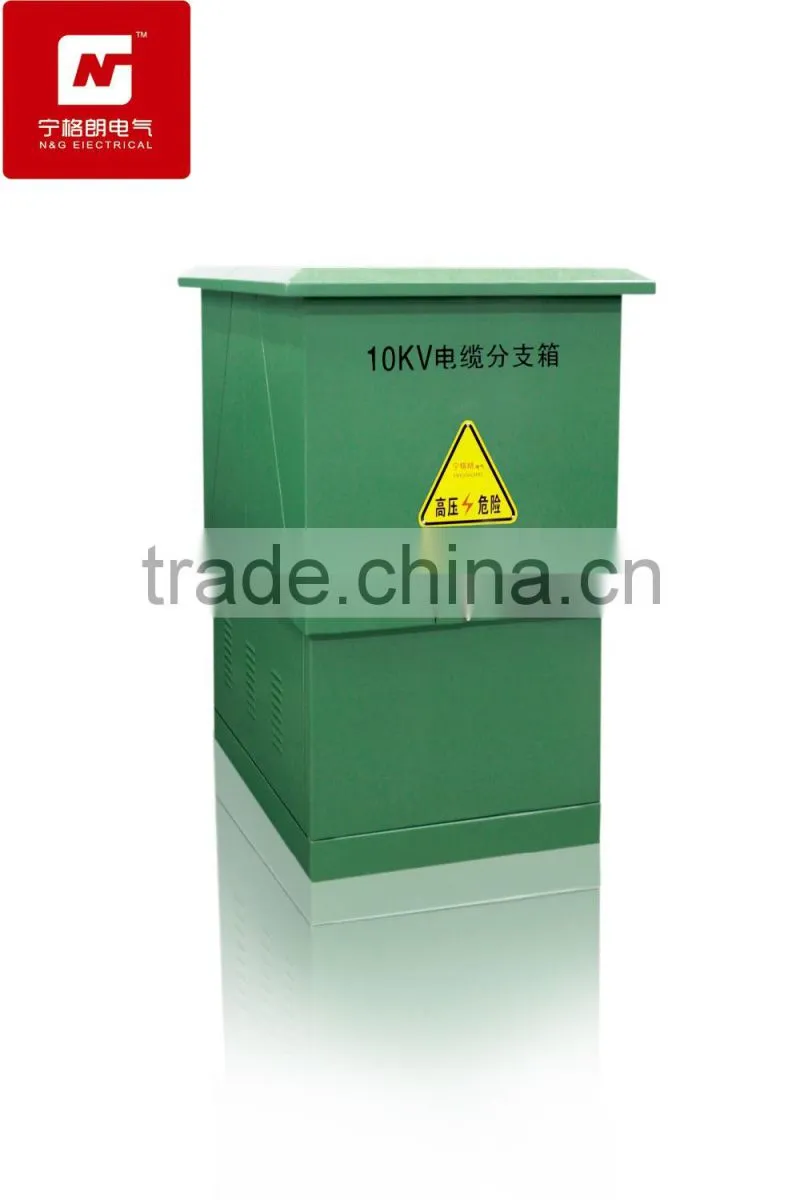

outdoor cable distribution box optical distribution box
DFW10-12N/630/250
DFW10-12N/630/250 European Cable Distribution Boxes
1,Outline
T-connector (European) cable distribution boxes are widely used in recent years in the electricity distribution network cable system engineering equipment, its main feature is a two-way door, use insulated wall bushing as the connection busbars, with a small length cable arrangement clearly three core cable without large span crossing and other significant advantages. Generally use the rated current 630A bolted connection cable connector, cable connector used in line with DIN47636 standards.
2,Type meaning
3,Normal conditions of use
1 No more than 3000m above sea level
2 Ambient temperature: -40 ℃ ~ + 55 ℃
3 Relative humidity: daily average ≤95%, ≤90% monthly average
4 earthquake intensity: ≤8 degree
5 wind speed: ≤35m / s
6 No recurrent severe vibration
4,Main technical parameters
| Rated voltage | 12kV | Join point resistance |
less than or equal to µ40Ω |
| Rated current | 630A | Partial discharge | less than or equal to 10pc/15kV |
| Rated frequency | 50Hz | Humidity test | 11kV/100h passed |
| Rated thermal stability cuttent | 20kA/2s | Cable type | XLPE |
| Rated dynamic current(peak-value) | 50kA | Cable section | 25~400mm |
| Power frequency withstand voltage | 45kV/1min | Environment temperature | -40℃~55℃ |
| Lighting impulse withstand voltage | 105kV | Altitude | less than or equal to 3000m |
| |
5,Structural features
1,Bolts: The T-head fixed on the base casing;
2, the main Insulation: High quality EPDM rubber;
3, insulation cover: rear insulation, sealing;
4, after the capacitor test: You can check the status of the circuit work;
5, the end cap: protective sleeve capacitor test points;
6, the inner shield: inner semiconductive layer, shielded metal joints;
7, stress cone electrical stress control: with cable adapter provides electrical stress control together;
8, cable adapters: You can adjust different sections of the outer diameter of the cable insulation, electrical stress control;
9, grounding eye: connect the ground wire, grounding the shield;
10, the outer shield: outer semi-conductive layer, so that the joint outer shield and make sure the outside to the low potential;
11, metal crimp terminals.
Compliance with VDE0278, IEC60502-4, EDFHN52-5-61, BS7215 standard

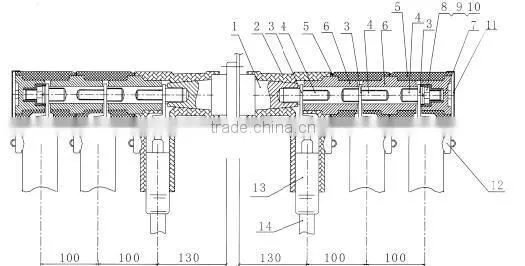

6,Specification
1,Equipment casing 2, before fitting touch
3, wiring lug 4 studs
5, touch fittings 6, middle connector
7, insulating plug 8, flat pad map
9, spring pad map 10. Nuts
11, protective cap 12 test caps
13, stress cone 14, cable (branch)
