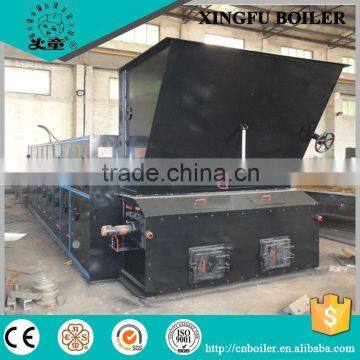

Help Center6 8 10 12 15 20 25 Ton Industrial Rice Husk Fired Biomass Steam Boiler With 81% Efficiency
Related Products
-
6, 8, 10, 12, 15, 20, 25 Ton Industrial Biomass Steam BoilerUS$ 72,000 - 1,654,000MOQ: 1 Set -
15 Ton Industrial Biomass Steam Boiler for Textile FactoryUS$ 72,000 - 1,654,000MOQ: 1 Set
-
DZL Industrial Biomass Steam Boiler for Food Factory With ISO14001, CE,SGS and ASMEUS$ 72,000 - 1,654,000MOQ: 1 Set
-
Industrial Wood Pellet Fired Biomass Steam BoilerUS$ 72,000 - 1,654,000MOQ: 1 Set
-
Wood Pellet Fired Steam BoilerUS$ 72,000 - 1,654,000MOQ: 1 Set
Industrial Rice husk fired biomass steam boiler
1.The boiler shall adopt double drum, monolayer arrangement, compact structure, as well as large heating surfaces which are more 10 per cent than those of same kinds of products, featuring the following advantages such as sufficient output, safe and reliable operation, short construction period, and low installation cost ect.
2.The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas. At the same time, incandescent carbon black particles shall burn further, enhancing the boiler thermal efficiency, and decreasing gas blackness, as a result, the gas emission concentration shall meet the requirements of grade A environmental protection area.
3.The grate shall employ the technology patent of small roller structure, boundary grate and so on, improving the operation reliability of the boiler.
4.Since the adoption of technology patent for the sealed wind chamber and bilateral grate air register, and the application of machining cone seal structure to grate adjusting air eauipment, the sensitivity of the grate shall be improved.
5.According to the customers' requirements, other energy saving equipment, shall be matched.
|
Boiler Type
Item |
SZL6-1.25-M SZL6-1.6-M |
SZL8-1.25-M SZL8-1.6-M |
SZL10-1.25-M SZL10-1.6-M |
SZL12-1.25 -M
|
SZL15-1.25 -M
|
SZL20- 1.25-M
|
||
|
Rated Evaporation |
T/H |
6 |
8 |
10 |
12 |
15 |
20 |
|
Rated Pressure |
MPa |
1.25/1.6 |
1.25/1.6 |
1.25/1.6 |
1.25 |
1.25 |
1.25 |
|
|
Steam Temperature |
℃ |
194/203 |
194/203 |
194/203 |
194 |
194 |
194 |
|
|
Feed Water Temperature |
℃ |
20 |
20 |
105 |
105 |
105 |
105 |
|
|
Thermal Efficiency |
% |
80.6 |
81.8 |
81.17 |
78 |
81 |
82.95 |
|
|
Heating Area |
M² |
137.6 |
175 |
210 |
388 |
443 |
578 |
|
Grate Area |
M² |
7.23 |
8.6 |
11.72 |
11.2 |
15.2 |
18.87 |
|
Fuel |
Coal Type |
|
Rice husk and AⅡ |
|||||
Consumption |
Kg/h |
900 |
1280 |
1450 |
1740 |
2175 |
3180 |
|
|
Maximum Transportation Size |
M |
7.83×3.34 ×3.46 |
8.82×3.34 ×3.46 |
7.1×3.4×3.5 8×3.5×2.7 |
7.2×3.3 ×3.6 |
8.0×3.3 ×3.6 |
10.6×3.35 ×3.69 |
|
|
Main Steam Valve Diameter |
Mm |
DN125 |
DN150 |
DN150 |
DN150 |
DN200 |
DN200 |
|
|
Feed Water Vallve Diameter |
Mm |
DN50 |
DN50 |
DN50 |
DN65 |
DN65 |
DN65 |
|
|
Maximum Transportation Weight |
T |
36/39 |
45/47 |
28-27/29-27 |
28 |
34 |
27 |
|
|
Total Boiler Weight |
T |
48/51 |
56/58 |
96/97 |
102 |
107 |
116 |
|
Installation Size |
M |
10×5.33 ×3.86 |
11.57×5.33 ×3.86 |
8×4.5 ×6 |
8.5×4.5 ×6.5 |
9×4.5 ×6 |
14.2×5.3 ×8.04 |
|
