Home > Products > Biomass boiler > DZL Industrial Biomass Steam Boiler for Food Factory With ISO14001, CE,SGS and ASME
DZL Industrial Biomass Steam Boiler for Food Factory With ISO14001, CE,SGS and ASME
- Qingdao port China
- T/T
You May Like
-
Industrial Wood Pellet Fired Biomass Steam Boiler
-
Wood Pellet Fired Steam Boiler
-
Chinese Wood Pellet Fired Biomass Steam Boiler for Pakistan Market
-
Chain Grate Biomass Steam Boiler(Pakistan Office)
-
Biomass Wood Fired Hot Water Boiler(Pakistan Office)
-
6, 8, 10, 12, 15, 20, 25 Ton Industrial Chain Grate Biomass Steam Boiler
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Other, Industrial, Food factory | Structure | Other, Water fire tube | |
| Pressure | Low Pressure | Style | Horizontal | |
| Fuel | Other, Biomass pellet, Biomass, straw, wood, rice husk | Place of Origin | Shandong, China | |
| Brand Name | xingfu | Model Number | DZL Biomass steam boiler | |
| Output | Steam | Dimension(L*W*H) | Depend on the boiler type | |
| Weight | 16-30 T | Certification | ISO14001,CE, SGS, ASME | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

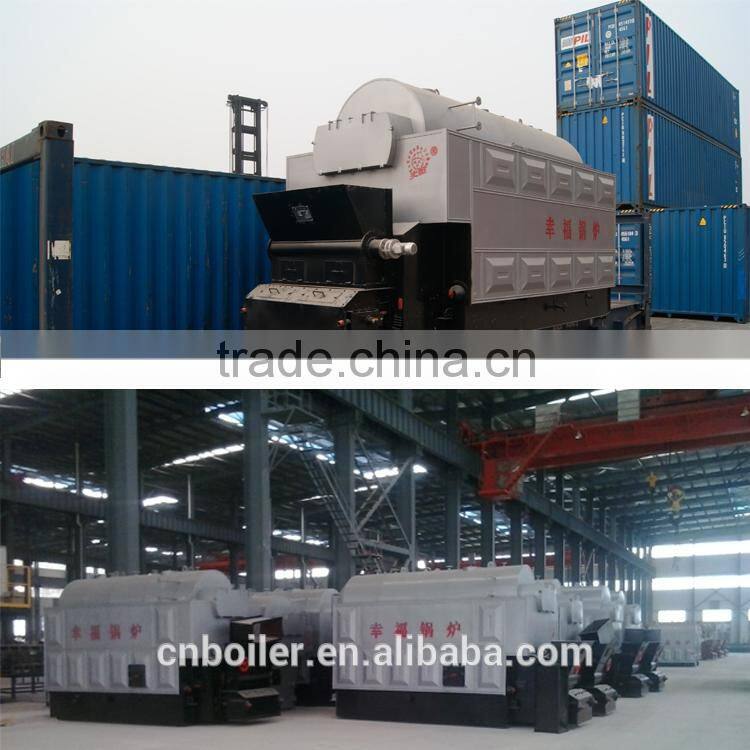

DZL Biomass Steam Boiler
We supply biomsaa fired steam boilers for all purposes with main features as:
1. The 1~ 6t/h boiler uses quick fitting structure, very easy for installation and save boiler room space.
2. The boiler of 8~20 t/h is composed of 2 main parts: the upper body which is for heat exchange, and
lower body for fuel combustion.
3. Quick installation
We provide supervision service to customers for installation and commissioning work so the new b
oiler can operate quickly after delivery.
4. Economic for long term operation
With reasonable design to the boiler structure and equipped with quality auxiliary machines, our boiler saves a lot in fuel consumption and can reach the highest efficiency as designed for long term operation.
5. Low cost on maintenance
As we use international standard material for assembling boiler parts and with high quality auxiliary
machines matched to the boiler, so the impact of maintenance to users’ production is reduced to
the minimum level.

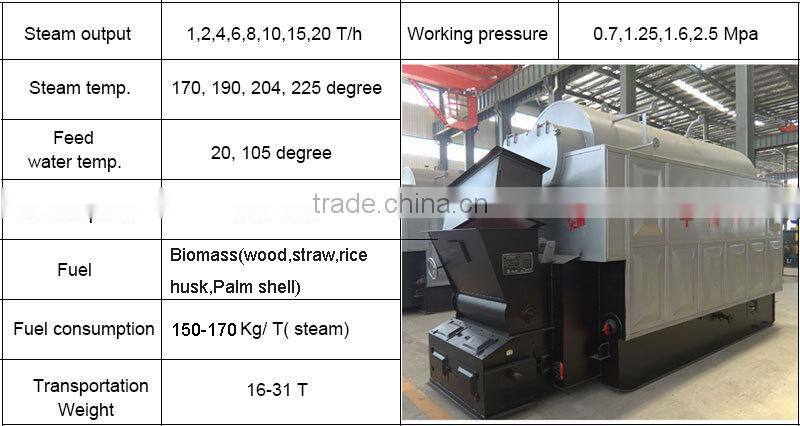

Specifications Name | DZL1-1.0-M DZL1-1.25-M | DZL2-1.0-M DZL2-1.25-M | DZL3-0.7-M DZL3-1.25-M | DZL4-1.25-M | DZL6-1.25-M | DZL8-1.25-M | DZL10-1.25-M | |||
Rated evaporation capacity | T/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | ||
Rated working pressure | Mpa | 1.0/1.25 | 1.0/1.25 | 0.7/1.25 | 1.25 | 1.25 | 1.25 | 1.25 | ||
Rated steam temperature | ℃ | 184/194 | 184/194 | 170/194 | 194 | 194 | 194 | 194 | ||
Water-supply temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 60 | 105 | ||
Heating area | Radiation | M² | 5.7 | 12.64 | 9.5 | 11.9 | 12.5 | 16.1 | 20.5 | |
Convecion | 20.5 | 38.6 | 50.6 | 81.6 | 101.6 | 173.4 | 182.8 | |||
Thermal efficiency | % | 78.6 | 79.1 | 81 | 84 | 83.9 | 83 | 83.4 | ||
Combustion |
| Grate-fired Furnace | ||||||||
Fuel available | Coal type (designed) |
| Biomass pellet | |||||||
Low heating value | KJ/Kg | 16750 | 16750 | 16750 | 16750 | 16750 | 16750 | 16750 | ||
Fuel consumption | Kg/h | 209 | 398 | 531 | 778 | 1175 | 1584 | 1975 | ||
Effective area of area | M² | 1.8 | 2.8 | 3.34 | 5.14 | 8.12 | 11.3 | 12 | ||
Dimension of the biggest parts (L*W*H) | Mm | 4920×2040 ×2900 | 5290×2330 ×3400 | 5530×2600 ×3500 | 6500×2900 ×3550 | 7330×3350 ×3600 | 7700×3550 ×3600 | 7700×3550 ×3600 | ||
Weight of biggest parts for shipment | T | 14 | 18.5 | 23 | 29 | 32 | 45 | 47 | ||

Q1 Are you manufaturer, We want the low price and professional service.
A: Surely Xingfu Boiler is the manufacturer.
Factory : Xingfu Boiler Thermoelectric Devices Co., Ltd. Add: No.5, Gaoping Road, Pingdu Liaolan Industrial Park, Qingdao, China.
Export department: Qingdao Honest International Trading Co., Ltd Add: Rm2714, Wanda Building, No.33 Lianyungang Road, Qingdao, China.
Here you can get what you want.
Q2 How do you control the product quality?
A: Xingfu Boiler started as a state owned enterprise in 1981. This gave us the chance to grow fast. With the 30 years' experience, technology and innovation, Xingfu Boiler has been the leading company in Chinese boiler market. Certificate of ISO9001, ISO
14001, SGS, CE and ASME are passed.
Q3 What's the delivery time.
A:15 days for 0.2T--6T steam boiler and 0.35Mw--5.6Mw hot water boiler. 8T-20T steam boiler, 7.0Mw--29Mw hot water boiler and thermal oil boiler. 60 days for 8,10
and 15T waste tyre/plastic pyrolysis plant.
Remark: Unconventional product based on the design time.
Q4 What kind of payment terms do you accept.
A: 30% T/T in advance, 70% T/T before shipment. Need other payment terms, we can communicte.
Q5 Is factory visit available?
A: Welcome to visit our factory at any time. inform us your schedule. We arrange all bus
iness for you.
Q6 Which countries have your boiler/ pyrolysis been exported to?
A:Till now. Our products have been exported to Europen including Spain, Netherlands, Greece, Bulgaria, Turkey, Denmark, Russia and Yugoslavia; Asian including India, Pakistan, Sri Lanka, Malaysia, the Philippines and Mongolia; South America including Chile and Brazil; Africa including South Africa, Egypt and Saudi Arabia.
