Specifications
led aviation Obstruction lights:1.voltage:220VAC/48VDC
2.Ingress protection:IP65
3.Power:<20W
4.Lifespan:100,000hr
Red LED Warning Tower Silver Medium Intensity Type B Aviation Obstruction Light
EN-202ZB/2 Silver Medium Intensity Type B Aviation Obstruction Light is a Red flashing obstruction light. For high rise buildings or structures with height between 45 to 105 meters, this Silver Medium Intensity Type B Aviation Obstruction Light could be used solely or together with low intensity aviation obstruction light to play an aviation warning role there. Also, it could be used together with medium intensity type A aviation obstruction light or high intensity aviation obstruction light on buildings or structures whose height are higher than 105 meters.
Key features:
1. Lamp shade of the light adopts PC which is quite high impact resistance (IZ0D gap impact resistance rate:90), hot resistance( can bare high temperature up to 130°C), high efficiency light transmission up to 90%, anti-UV, aging resistance, ignitability rate UL-94V0.
2. House of the light is made of aluminum alloy and painted by spraying plastics finish. It is light, good ability of heat release, waterproof, impact resistance, corrosion resistance etc..
3. Light source adopts LED which is with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
4. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
Model introduction
EN-202ZB/2J: with monitor function, without photocell, required to work together with controller which has an alarm system to monitor the working status of the lights
EN-202ZB/2AT: main light and subsidiary light converted automatically, with function of both main light and subsidiary light

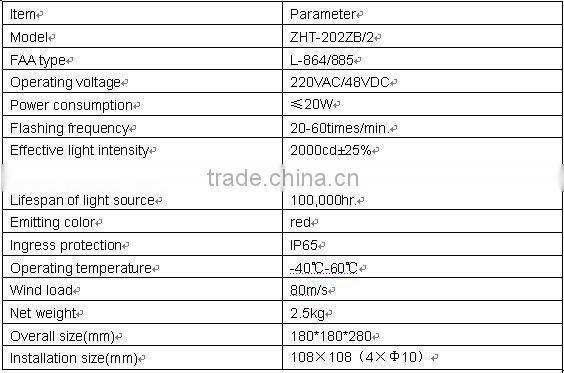

Main Tech Parameter:
