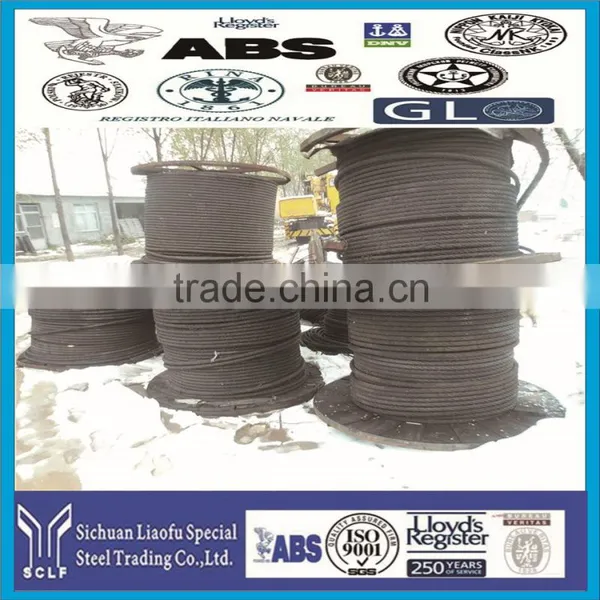

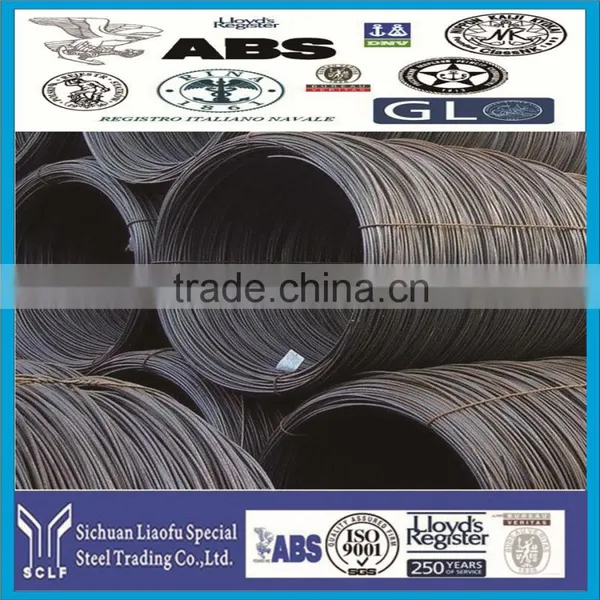

Alloy Steel Wire Scm435

Name: Alloy Steel Wire Scm435
Brand: Dongbei Tegang
SKU: 116188215

US$ 500 - 1,000 MOQ: 1 Metric Ton

Key Specifications

Get Latest Price

Steel Grade:

SCM435

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge:

0.5mm~10mm

Contact Supplier Request Quote Chat Now

Sichuan Liaofu Special Steel Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Steel Grade SCM435

Standard AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge 0.5mm~10mm

Place of Origin Liaoning, China

Type Galvanized

Application Manufacturing

Alloy Or Not Is Alloy

Special Use Free Cutting Steel

Model Number JIS SUS SCM435

Brand Name Dongbei Tegang

ASTM 4135/JIS SUS SCM435 /DIN 34CrMo4

This kind of steel is usually used in quenched and tempered state, when the carbon content is the lower limit of the steel is also used as a requirement of carburized steel core strength high. In the medium-sized machinery manufacturing industry is mainly used in the manufacture of large section, at high strain hardening and tempering force work under the conditions of the parts, such as shaft, main shaft and the steering wheel from the high load, bolt, stud bolt, gear and so on; used in the manufacture of high-pressure pipe parts, sheet and tube welding structure and composed of nitrogen and hydrogen containing medium in work the temperature does not exceed 250 DEG C welding in chemical industry; in the steam turbine, boiler manufacturing fasteners for manufacturing, 500 DEG C below 450 DEG C below the flange and the nut by work pressure, especially suitable for the manufacture of 300 atmospheric pressure, working under 400 DEG C to catheter.

Product Basic Information:

Material		SCM435
Chemical Composition		Mechanical Properties(In Quenched & Tempered State)
C	0.32-0.40	Tensile strength(MPA)	≥980
Si	0.17-0.37	Yield strength (MPA)	≥835
Mn	0.40-0.70	Elongation(δ5/%)	≥12
Cr	0.80-1.10	Reduction in Area (ψ/%)	≥45
Mo	0.15-0.25	Impact (J)	≥63
P	-	Hardness	≤229HBS
S	-
N	-
Ni	-

2.Product Application Areas:

Our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical industry,

electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication ,transportation, and medical instruments, etc.

3.Similar steel grade & equivalent steel materials:

USA	Japanese	Gemany	British	France	International	Chinese
ASTM&AISI&SAE	JIS	EN DIN	EN BS	EN NF	ISO	GB
4135	SCM435	34CrMo4			-	30CrMo

High strength and resistance to intergranular corrosion and chloride stress corrosion is improved obviously. Stainless steel has great corrosion performance.

Product Sales Information:

Material	SCM435 Alloy Structural Steel
Size	Diameter:0.5mm~10mm
Origin place	Made In China
Delivery Condition	Hot rolled,cold drawn,forged
Surface require	Black,grinding,bright,polish
Heat treatment	Quenched,Tempered,annealed
Packing	seaworthy packing ,wooden case ,carton,woven bag or at client's requires
Delivery time	In 10-50 days
Trade Term	EXW,FOB,CIF
Payments	T/T or L/C at sight
Port	China main Port,such as shanghai,Dalian,Shenzhen port.
MOQ	1 Ton

Company Main Products:

Alloy Steel	5140,5115,5120,5130,5145,4118,4130,4135,6150,5115,4142,4130,4118,6150,4140,4720,4320 ,E9310,8620,4340
Tool Steel	H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2
Bearing Steel	GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50
Spring Steel	9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159
Stainless Steel	321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028, 434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,201,202,301
