Product Overview

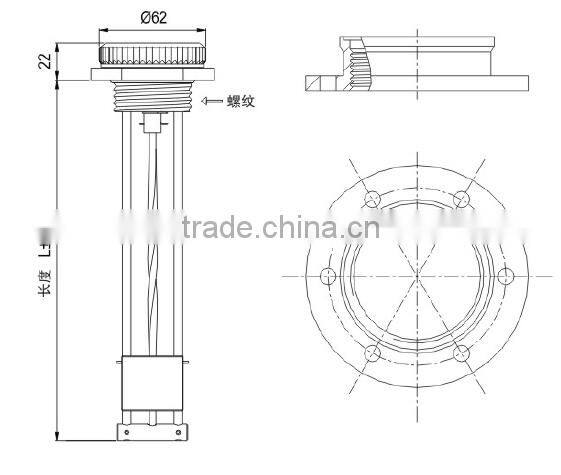

MG-710 Mechanical level gauge, mechanical fuel gauge, mechanical measuring instrument
Mechanical instrument combining together with the liquid level detection and liquid level display: without any external devices, can be directly display level. This instrument is widely used in all kinds of generators, engines, etc of the gasoline tank, diesel tank, hydraulic station and the water tank; Do not recommend used on vehicles.

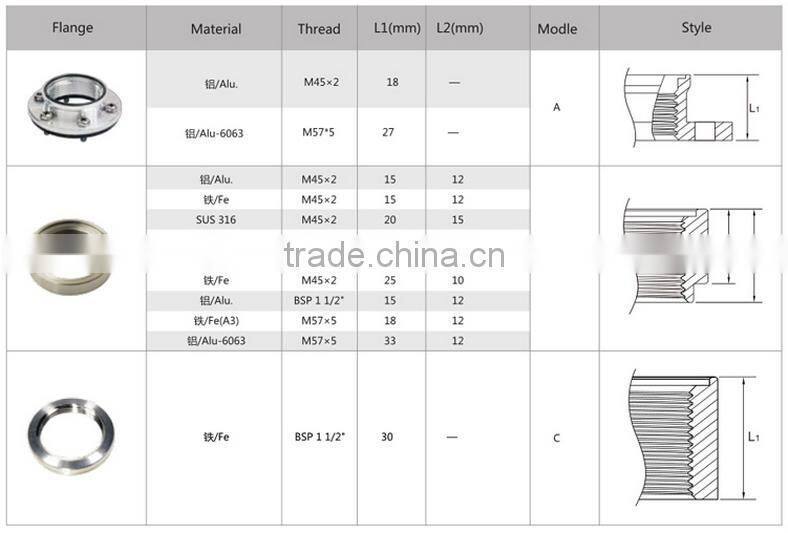

A assembly and have M45x2 threaded BSP11/2 two specifications

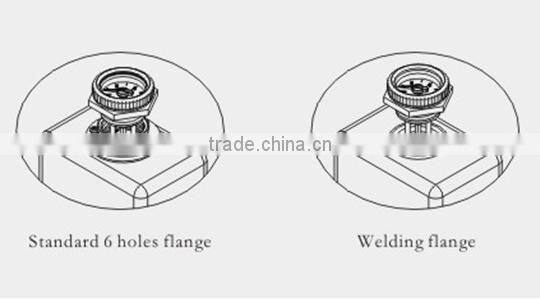

B on the fuel tank cannot make thread, can use the mating flange
C standard orifice flange lock
D choose welding flange to the fuel tank
Detailed Content
Product parameters
Working temperature: - 40 ~ 85 ° C
Accuracy: 5%
Main material: aluminum gold
Screw thread interface: M45x2 or BSPl address
Flange (optional) : standard six welding flange hole
Tightening torque: 300-400 nm
Length: 120 ~ 700 mm
Alarm switch: matching, can choose high or low alarm, the alarm current is less than 500 ma
