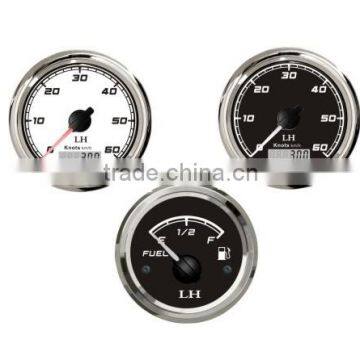

Instrument
It is applied to many fields, such as trucks, buses, boats, generators etc.,
All of our gauges have passed strict environment, vibration test and received relevant CE certificates.
Front side materials: SUS316, Curved glass with Polarity protection and double anti-fog glass.
Installation method: Equipped with threaded cover, which is directly screwed on the panel.
Attended mode: Terminals are available by 12/24V
Backlight: Red or yellow
Operation temperature:-40~+85℃
Precision range :<3°
Protection tank: Front side is IP67, backside is IP65

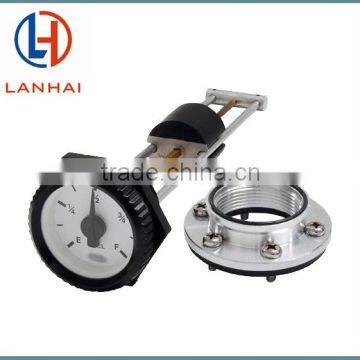

Mechanical instrument
This gauge integrates the function of level measuring and level display directly without connecting to any other equipment. This gauge widely applies to gas tank, diesel tank of generators and engines. It also applies in hydraulic pressure station and water tanks. Vehicles are not suggested to be used in.
The matched thread has two types: M45×2 and BSP 1½
Matched flange can be replaced.
The standard 6 holes flange is locked by screws
Weld the welding flange to the tank
Parameter
Operation temperature: -40~+85℃
Integrated precision:5%
Main material: Aluminum alloy
Thread fitting: M45×2 or BSP 1½
Flange (optional): Standard 6-hole welding flange
Screw torque 300-400N.M
Length range: 120-700MM
Alarm switch: For option, high level or low level for choosing. Alarm current is below 500 mA
