Specifications
1. Electronic hotel lock manufacturer2. Make of copper
3. CE/RoHS/FCC
4. Security and safe
5. Low price

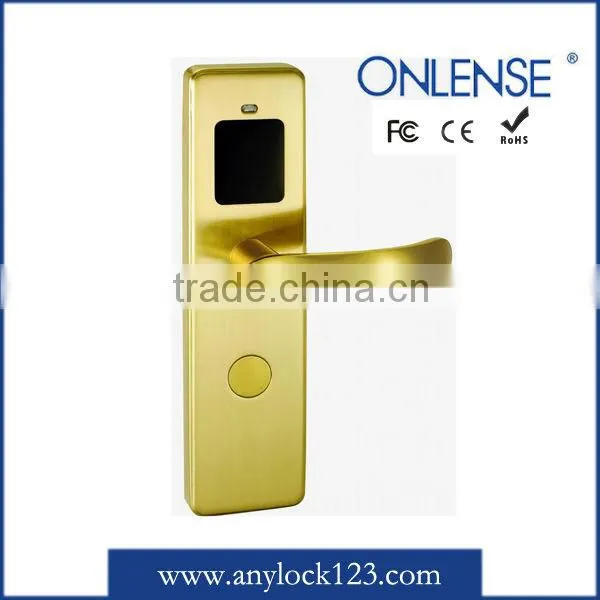

Description of Contactless electronic hotel lock 8900RFG
1.Absolute brass moded lock, maitain the brass color, anti-oxidation and anti-cautery, makes the lock look new all the time.
2.Parameter of Contactless electronic hotel lock 8900RFG
Our Value
Dissociative structure:
The Handle will turn dissociative when the door is locked, decrease the damage to the lock casued by outside force.
Stainless steel axis part:
The key part axis will take over all force when open the door, so the stainless steel material enable it can be used for more than 1 million times.
Localizer:
A molded type of localize, makes the lock core work stable and steadily.
PC control panel:
1.Adopt chips from brands like Philips, Atmel, make sure the lock save energy and durable.
2.Researched by Onlense to maintain stable system update, namely further tech-development possibility for users.
3.The sealed process enable the preventions from mould, bacteria and moisture to ensure stable performance.
Onlense System
System factors: Door lock, intelligent card, computer, management software, encoder, energy saving switch.
Main Functions: Use the computer and the software to issue cards of different rank and purview, to actualize ranking management.
Basic Technical Function Index of Contactless electronic hotel lock :
Contactless electronic hotel lock index:
| Power Supply: | DC6V,use of 4pcs of AA batteries. |
| Supply Voltage: | DC4.5v-6.5v, normal status, blue light flash and sound once; when the voltage is below DV4.5v, the red light flash after the blue light flash, sound twice, in this situation, the lock can be used about 200 times. |
| Static Power Supply: | <10 u A. |
| Dynamic Power Suppy: | <150m A |
| Inductive Distance: | 10-30mm |
| Open time: | It will automatically lock inside after open it once, or lock again if the door is not opened in 3 seconds. |
| Lifetime of battery: | Under normal situation, the lock can keep working last 1 year, be open more than 20000 times |
| Record inside the lock: | 1000 records for standard type|(include open by mechanical key) |
| Setting Requirement: | Working temperature: 0'C-70'C, humidity:15-92%max. |
Mifare-1 card index in Contactless electronic hotel lock:
| Tech spec: | PHILIPS Mifare-1 card, accord the ISO14443 standard. |
| Craft: | The electronic module and induction coil are inserted into the PVC. |
| Card reading: | Close to the inductive area. |
| Card capacity: | S50 card with 8 k bits, 16 sectors with 48bytes each. |
| System logic: | Anti-conflict and allow multi-card oerpation. |
| Read-write features: | Readable, over-writable and encryptable. |
| Frequency: | 13.56MHZ |
| Access rate: | 106kbps |
| Data life span: | More than 10 years. |
Hotel Temic card index in Contactless electronic hotel lock :
| Tech spec: | ATMEL inductive card. |
| Craft: | The electronic module and induction coil are inserted into the PVC. |
| Card reading: | Close to the inductive area. |
| Card capacity: | 32 bytes. |
| Read-write features: | Readable, over-writable and encryptable. |
| Frequency: | 125MHZ. |
| Access rate: | 106kbps |
| Data life span: | More than 10 years. |
Certificates of Contactess electronic hotel lock
Onlense workshop:

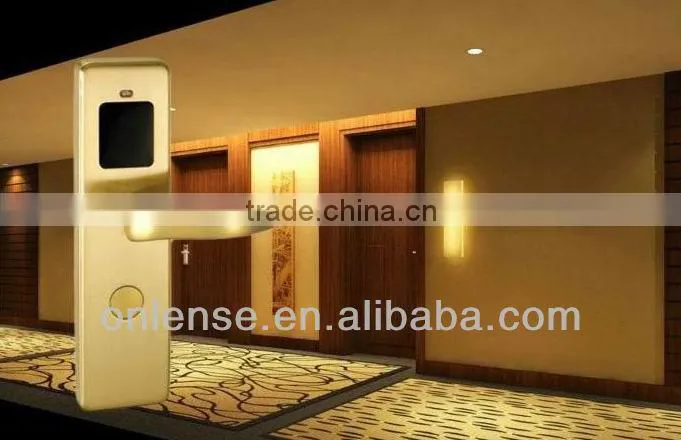

Contactless electronic hotel lock 8900RFG is mainly used in projects like: apartment,office,hotel especially near the sea or river.
