[RD-SB1500-2800-4] High Speed Corrugated Carton Machine With 4 Color Printing Slotting

[RD-SB1500-2800-4] High Speed Corrugated Carton Machine With 4 Color Printing Slotting thumbnail-1

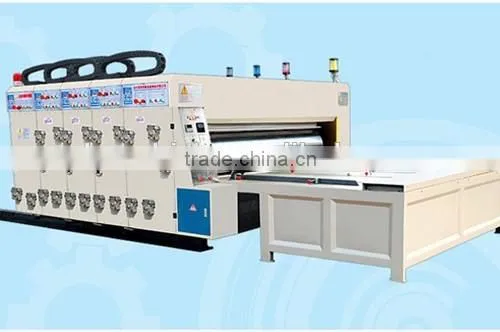

[RD-SB1500-2800-4] High Speed Corrugated Carton Machine With 4 Color Printing Slotting photo-1
US$ 10,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware, Carton Making
Packaging Type:
Cartons, Case, Film
Contact Supplier Request Quote Chat Now
Pujiang Ruida Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Ningbo or Shanghai port for Corrugated carton machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Machinery & Hardware, Carton Making
Packaging Type Cartons, Case, Film
Packaging Material Metal, Paper, Plastic
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 380V
Power 6KW
Place of Origin Zhejiang, China
Brand Name RuiDa
Model Number RD-SB1500-2800-4
Dimension(L*W*H) 5500*3400*1900mm
Weight 7T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

- Corrugated carton machine
- Chains for paper feeding
- Glue revising device
- Factory price and easy operation
- CE

         High speed corrugated carton machine with 4 color printing slotting



[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting







Specifications:



S/N Parameter Unit Model
RD-SB910-2000-4 RD-SB1500-2600-4 RD-SB1500-2800-4 RD-SB1500-3000-4
1 Machine inner width mm 2000 2600 2800 3000
2 Max.paper size mm 910*1800 1500*2400 1500*2600 1500*2800
3 Min.paper size mm 280*650 450*650 450*650 450*650
4 Max.printing size mm 810*1600 1400*2200 1400*2400 1400*2600
5 Carboard thikness mm 2~11 2~11 2~11 2~11
6 Printing plate thikness mm 6 7.2 7.2 7.2
7 Dia.of printing roller mm Φ290 Φ475 Φ475 Φ475
8 speed pcs/min 60 60 60 60
9 Topping precision mm ±0.5 ±0.5 ±0.5 ±0.5
10 Slotting precision mm ±1.5 ±1.5 ±1.5 ±1.5
11 Total power kw 6 6 6 6
12 Weight T 5 6 7 8
13 Overall dimension(L*W*H) mm 5500*2600*1900 5500*3200*1900 5500*3400*1900 5500*3600*1900



Features:

  • High speed corrugated carton machine with 4 color printing slotting .
  • There are 5 colors printing of corrugated carton machine for you to choose from .
  • It's very convenient to control the printing slotting units, with the characteristics of order storage ,quick order changing and convenient operation.
  • All the transmission gears use 45# chrome steel after high-frequency quenching and grinding in accordance with national standard.
  • All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
  • Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
  • Different alarm ring will along with the machine launching and stopping.
  • The corrugated carton machine is launched by pressing the start button with two hands, which ensure the operator's safety.
  • Each unit equips with emergency stop button.
  • Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
  • Equipped with automatic lubrication system.



Chain feeding unit:



[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting



  • Semi auto chain feeding, side plate is adjustable to adapt the different size of cardboard.
  • Equipped with 5 feeding chains, and 3 feeding push plates for each chain.
  • The chain rail of the corrugated carton machine is made of high strength engineering plastic, which is low noise, and long life time.
  • The height of the workbench is adjustable.
  • Automatic counter for recording the cardboard supply quantity to show the output.



Printing unit:



[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting

  • All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
  • The phase position could be adjusted CW or CCW easily with 360 degree because of the equipping planetary gearing  mechanism.
  • The printing plate of the corrugated carton machine is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
  • The inker automatically breaks away from surface to protect printing plate from damage in case of mechanical shut down.
  • Gear transmission uses circulating lubrication oil supply system to minimize noise and extend service life and improve the precision of chromatic printing.
  • Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
  • Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
  • Phase clear memory and reset after printing plate cleaning.
  • The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.

  • The inker automatically get empty to rotate device,prevent ink from being dried.

  • Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.



Slotting unit:



[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting



  • The slotting phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
  • Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
  • Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
  • Grooving synchronism adjust the height of carton.(Manually operation)
  • The slotting knives of the corrugated carton machine are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
  • Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
  • Punching hole device is optional.







[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting



[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting







[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting

[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting[RD-SB1500-2800-4] High speed corrugated carton machine with 4 color printing slotting



Company information:



PuJiang RuiDa Industry & Trade Co,.Ltd is specialized in corrugated carton machine , having been designing, developing, manufacturing and marketing Carton Machinery for more than 10 years . We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

"Better Quality, Lower Cost, Preferential service" is the principle which we have been following.We warmly and sincerely welcome any potential customer to visit our factory any time.Let's work hand in hand to create a resplendent future.





Our service:



1. Presale: product consultation and solution design can be provided.



2. Sale: spares parts can be provided at a certain discount.



3. After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.



If you have any other questions , pls feel free to contact me .



Looking forward to beginning our cooperation in the near future.



Send Inquiry to This Supplier

Message
0/5000
