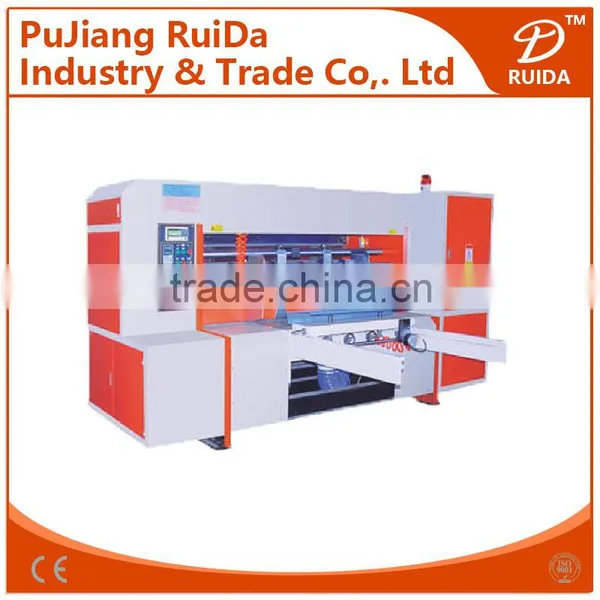

RD-MQA1400-1800 Automatic Rotary Die Cutting Machine

Pujiang Ruida Industry & Trade Co., Ltd.
RD-MQA1400-1800 Automatic Rotary Die Cutting Machine thumbnail-1
RD-MQA1400-1800 Automatic Rotary Die Cutting Machine thumbnail-2

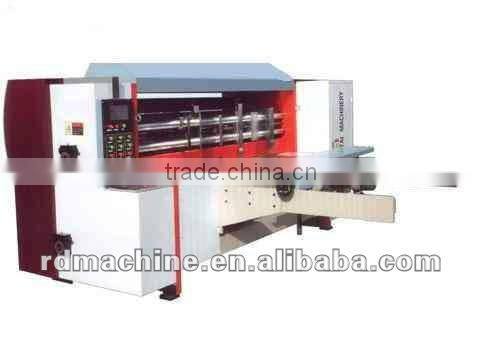

RD-MQA1400-1800 Automatic Rotary Die Cutting Machine photo-1

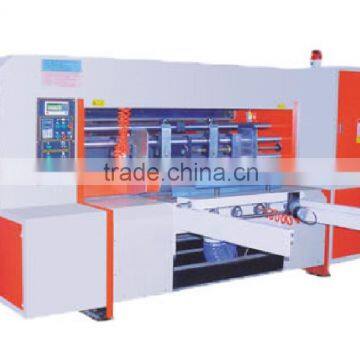

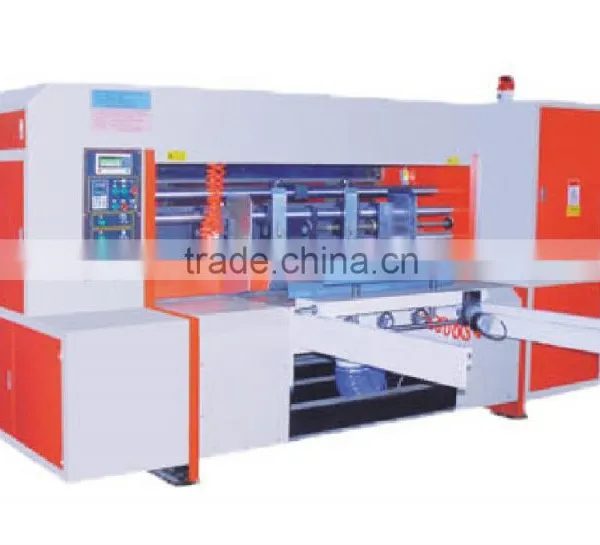

RD-MQA1400-1800 Automatic Rotary Die Cutting Machine photo-2
US$ 10000.00 - 10000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, die cutting machine
Processing Type:
Cutting Machine
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, die cutting machine
Processing Type Cutting Machine
Place of Origin Zhejiang, China
Brand Name RUIDA
Model Number RD-MQA1400-1800
Voltage 380V
Power(W) 6KW
Weight 5T
Certification CE
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas



product description

Specifications

- Numerical control and lead edge feeding
- High quality & best service
- Competitive price
- Easy operation & maintenance

Features

  • NC control unit
    • Human-computer interface design, equipped with high precise and complete numerical PLC control system.
    • Main machine is driven by frequency conversion motor.
    • Front and rear control panels are concisely concentrated and operated conveniently.
    • The machine is combination controlled by light, electricity and compressed air.
    • All the electrical components are in according with the international standard and named brand.
  • Paper feeding unit
    • Automatic adsorption lead edge feeding cardboard, the feeding speed reaches to more than 160pcs/min with the die cutting precision of ±0.75mm.
    • The phase position is electrical adjusted by planetary gear, it's able to adjust when starting up and shutting down.
    • The front panel is manual adjusted while the side panel is adjusted by electrical automatically.
    • The paper transmission roll equipped with a rubber surface to prevent crushing the cardboard, and improve the transmission accuracy.
  • Die cutting unit
    • The slotting, corner cutting, creasing and punching will be accomplished in one time.
    • The main structure and frame is made of high quality cast iron, with the thickness of 50mm.
    • The die cutting roller is made of the high quality steel with the thickness of 30mm, and chrome plated, as well balance adjustment.
    • Die cutting roller cylinder type auto separation unit can increase wear of rubber sleeve.
    • Mechanical soft roll is able to lateral movement for 40mm, to make the rubber wear evenly.
    • The soft roller auto self grinding unit improves the usage of rubber sleeve, 3 or 4 times grinding and re-use is available.
    • Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord.
    • America imported polyurethane rubber is easy and convenient to install and has a long lifetime, able to die cutting for 12 million times.
    •  The transmission gear is made of high quality steel with the treatment of accurate grinding, has the advantage of low noise and long lifetime.
