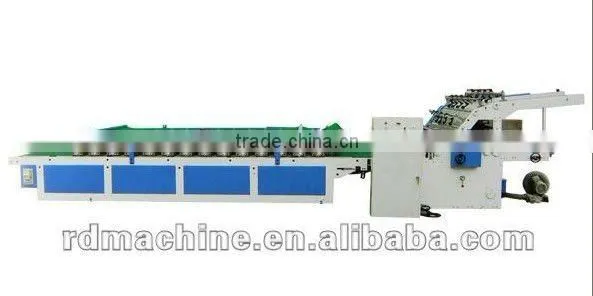

[RD-BZJ-1300B]Semi Automatic Flute Laminator

Name: [RD-BZJ-1300B]Semi Automatic Flute Laminator
Brand: RuiDa
SKU: 116135309

US$ 7,000 - 13,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Laminating Machine

Computerized:

Yes

Pujiang Ruida Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai nor Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Laminating Machine

Computerized Yes

Place of Origin Zhejiang, China

Brand Name RuiDa

Model Number RD-BZJ-1300B

Voltage 380v

Power(W) 5kw

Dimension(L*W*H) 8000x1980x1260mm

Weight 3t

Certification CE

Warranty 2 years for Semi automatic flute laminator

After-sales Service Provided Engineers available to service machinery overseas

Specifications

- Semi automatic flute laminator
- High quality & best service
- Competitive price
- Easy operation & maintenance

Featres

Semi automatic flute laminator for ordinary paperboard and corrugated cardboard.
The bottom sheetes are fed by vacuum adsorption auto feeding unit, while the face sheets are fed manually, which is easy operation and feeding paper precisely.
The position of bottom and face sheets are controlled by photoelectric, special elastic front register positioning the bottom sheet does not exceed the top sheet, the front-and-back distance between the top sheet and bottom sheet can be adjusted.
The pressure part adopts hanging roll suspension Lamination, so as to delivery the sheets smoothly and make the sheets stress uniformly.
The stress belt is moveable backwards and forwards, in order to produce different size of paperboard.
The main parts of the machine are use the famous brand products, which ensure a long lifetime and good stability.
