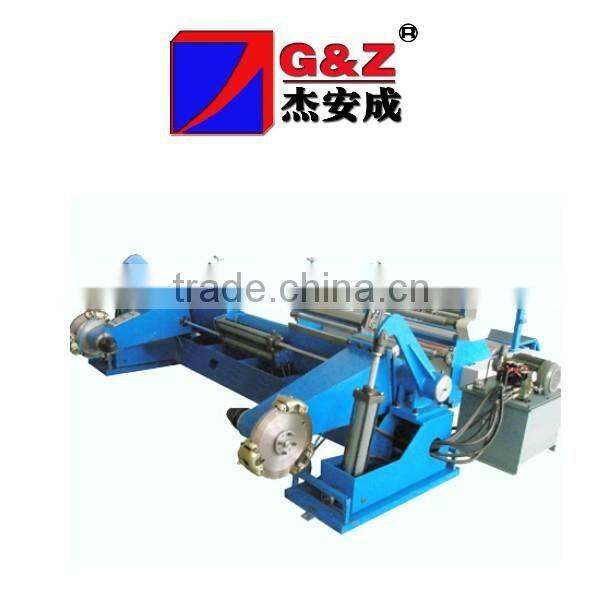

Roll to Roll Slitting and Rewinding Machine
Specification:
Model |
FQ1600C |
FQ2500C |
Max. width of paper roll |
1600mm |
2600mm |
Max. base paper roll diameter |
1600mm |
2000mm |
Min. width of base paper roll |
600mm |
600mm |
Min. rewinding width |
Not less than 40mm |
Not less than 40mm |
Rewinding diameter |
1600mm |
1600mm |
Max. rewinding speed |
140m/min |
140m/min |
Base paper |
80-2200gsm depending on base paper quality |
|
Pneumatic expanding shaft size |
As per the inner diameters of customer’s paper cores |
|
Power supply |
11Kw |
18Kw |
Dimension |
2370X2620X1030mm |
4534X4509X1200mm |
Total weight |
3.5tons |
5.5tons |
Feature:
1. Function
1). Hydraulic shaft-less roll stand, paper roll loading convenient and fast.
2). Electronic hydraulic rectification, high precision.
3). Suspend type tension system, can keep the tension invariableness.
4). Heavy slitting component, higher quality in splitting.
5). Frequency conversion control synchronous belt transmission, strong power, low noise.
6). Adopt new technology, rewinding no adhesion, ensure that the distance between two paper roll is 1-2mm.
7). The aggregate-organ research-pattern Thomas rewinding, low gravity, much more convenient to unload paper roll.
2. Sales terms and conditions
1) Package: to be covered with plastic film; and totally to be loaded into one 20’fcl.
2) Payment: 30% in advance by T/T at sight, and the balance by T/T at sight before shipment;
3) Delivery: 45days after the receipt of the advance;
4) Installation: to be done easily by the buyer as per the instruction manual;
5) Warranty: one year.
We also sell:
Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
