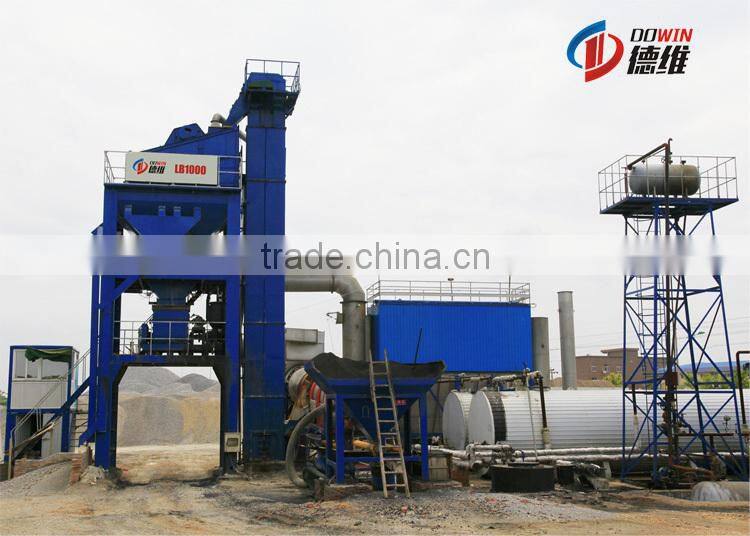

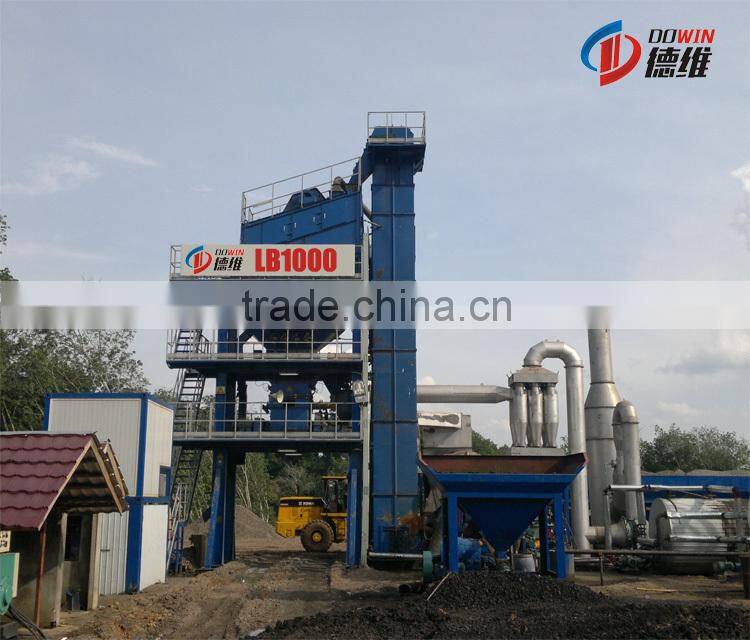

60-90t/h output LB1000 used asphalt mixing plant
Features of 60-90t/h output LB1000 used asphalt mixing plant
1. Modularized design, convenient to be dismantled and transferred to another site;
2. Global purchasing of standrized and unitized spare parts, which guaranteed the plant reliable and convenient for customer to maintain in future;
3. Customized design according to customer's need, optional fuel like diesel, heavy oil, natural gas and coal, optional bitumen, optional filler, optional additives, which is convenient and flexiable to help customer produce varied formula;
4. The whole plant can realize full auto, semo auto and manual control through PLC; The operation is easy to be learned that no special skill is required for operator;
5. It can realize producing data management such as production formula input, real time dynamic tracing of aggregate bitumen ratio, mal-function auto alarm, suto diagnosis, data report printing and storing and so on.
LB series asphalt mixing plant technical specification
| Model No. | LB500 | LB1000 | LB1200 | LB1500 | LB2000 | LB2500 | LB3000 |
| Rated capacity(t/h) | 45-60 | 60-90 | 90-105 | 110-125 | 140-175 | 180-200 | 200-240 |
| Mixer capacity(kg) | 800 | 1100 | 1250 | 1600 | 2200 | 2500 | 3000 |
| Cold hopper(m3) | 4*6.5 | 4*6.5 | 4*6.5 | 4*8 | 5*8 | 5*8 | 5*10 |
| Drying drum(Dia.*L) | 1.2*5.2 | 1.5*6.6 | 1.8*8.0 | 1.8*8.0 | 2.2*9.0 | 2.6*9.5 | 2.6*9.5 |
| Bag filtering area(m2) | 230 | 420 | 420 | 450 | 560 | 620 | 917 |
| Vibrating screen | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
| Bitumen heating boiler(*104Kcal/h) | 15 | 30 | 30 | 40 | 50 | 50 | 75 |
| Bitumen tank capacity(L) | 1*30,000 | 1*40,000 | 1*40,000 | 2*40,000 | 3*40,000 | 3*40,000 | 5*40,000 |
| Hot mixture storage silo(ton) | 15 | 30 | 30 | 30 | 30 | 70 | 80 |
| Control system | PLC+colorized touching screen/computer | ||||||

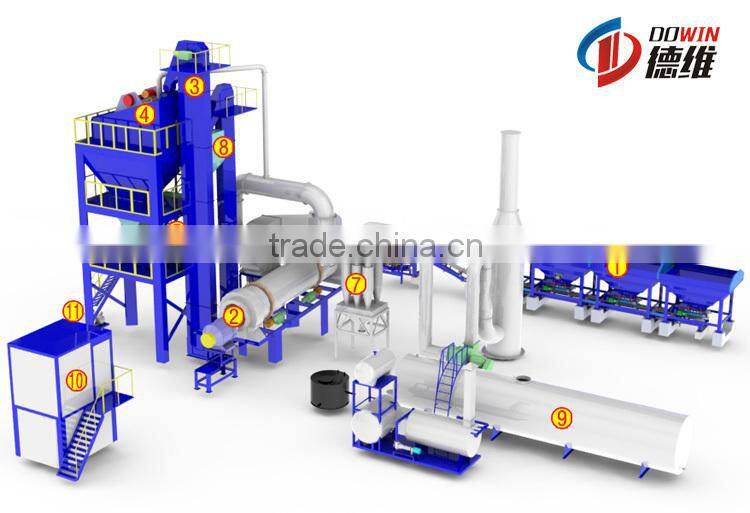

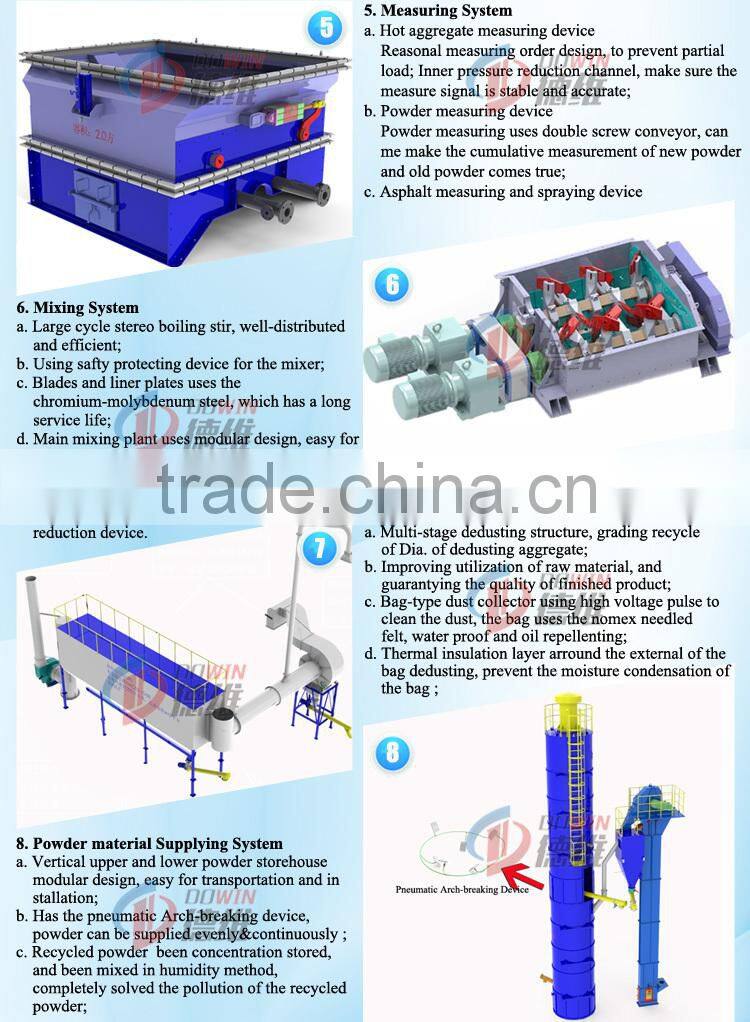

Drawing of 60-90t/h output LB1000 used asphalt mixing plant

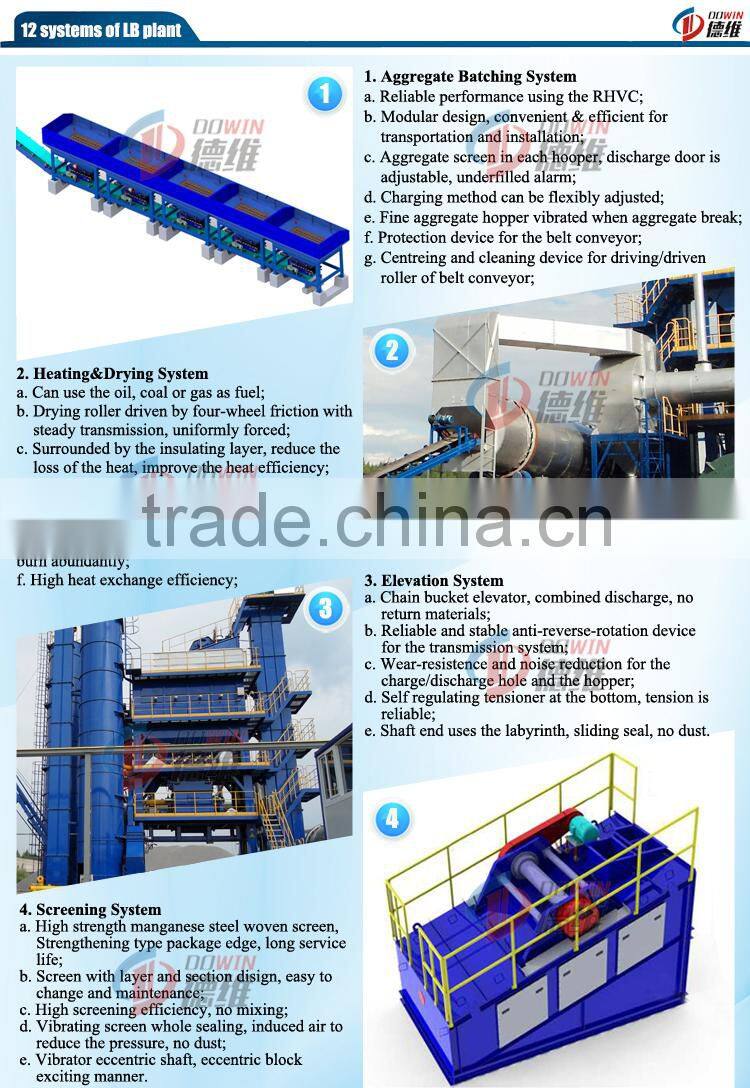

1. Cold Aggregate Batching System 2. Heating&Drying System 3. Elevating System

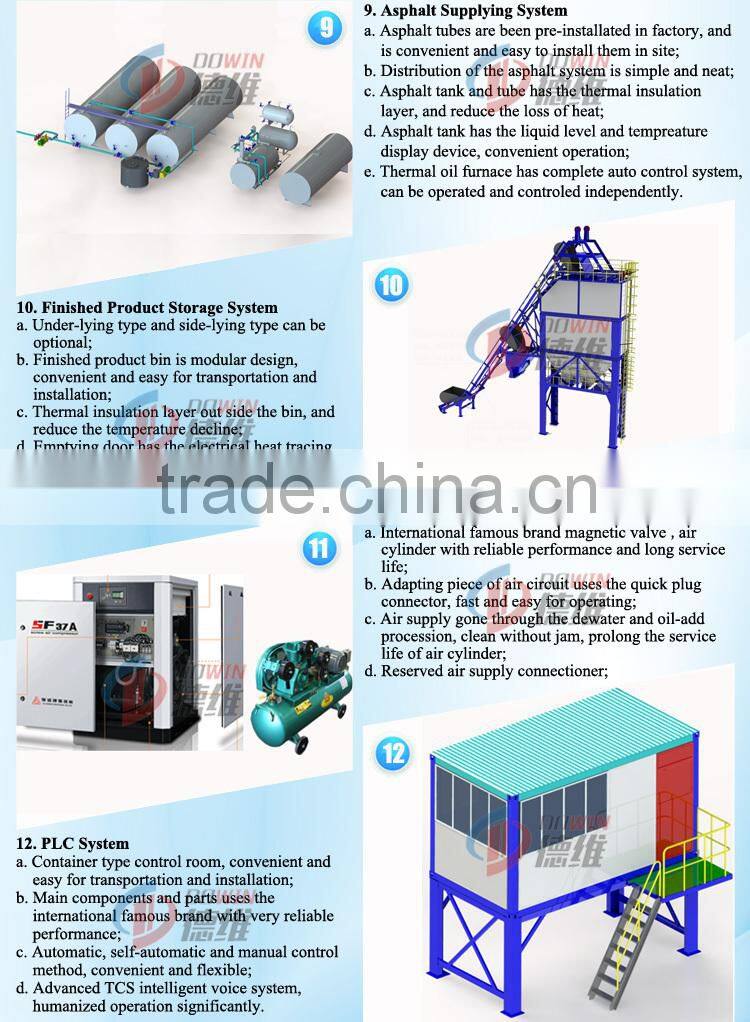

4. Screening System 5.Measuring System 6. Mixing System 7. Dedusting System 8. Powder Material Supplying System 9. Asphalt Supplying System 10. PLC System 11. Air Circuit System
Our Services
A professional team consist of 60 service engineers can ensure to relieve customer from all kinds of worries
Service promise for 60-90t/h output LB1000 used asphalt mixing plant:
1. 15 months warranty;
2. Turn-key project is available according to customer requests;
3. Assist customer for worksite layout and planning;
4. Guide customer for foundation making;
5. Guide customer for equipment installation and commissioning, training for operator and maintenance personnel;
6. Provide life-time service;
7. Provide pure spare parts timely;
8. Professional service engineer regular return visit;
9. Provides specialized service like plant transferring, upgrading and worksite management training, etc.

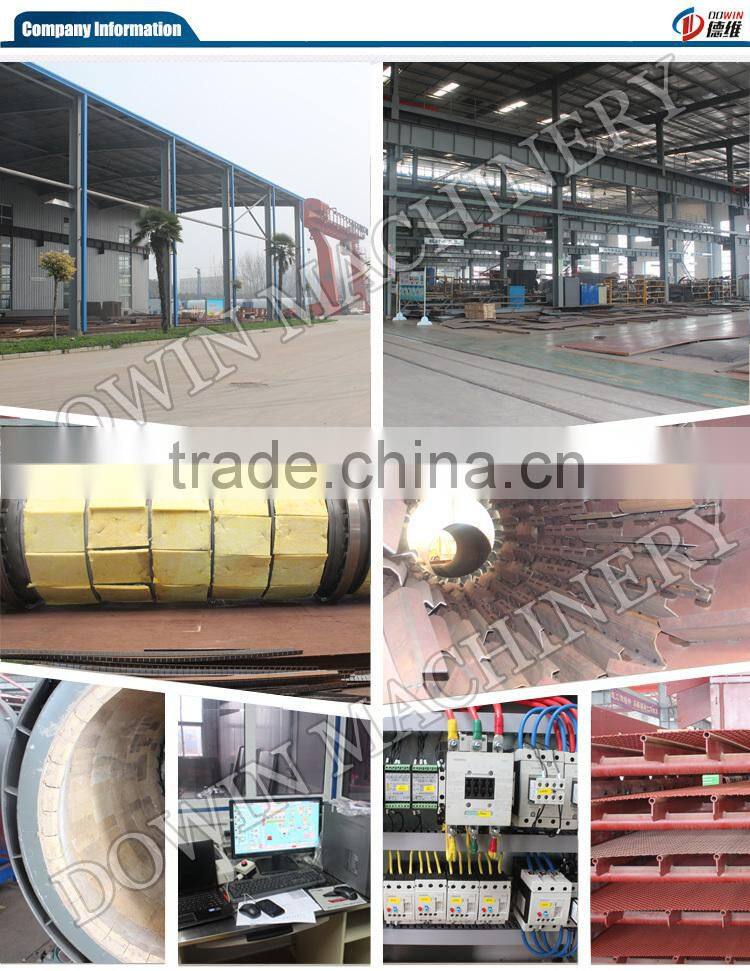

Dowin Is a leading professional manufacturer of asphalt mixing plant with 20 years' experience, more than 2000 sets of asphalt plants distributed in global market, which covered 31 provinces in China and more than 30 countries around the world.
Dowin obtained 45 national patents of asphalt mixing plant in China, passed the ISO9001:2000 Quality Management System Certification, as well as European CE and Russia GOST certification.
60 professional after-sale service engineers, one overseas joint venture company, 13 global agents and distributors, 6 overseas offices and global spare parts warehouse, which are ready to provide professional service for all overseas customers at any time.
