Flexo Printing Machine Price Cheap
with die cutting
Specification:
model |
SYM1220 |
Forme roller dia. |
405mm(including forme thickness 6mm) |
Forme roller length |
2200mm |
Forme thickness |
3-6mm |
Max. working speed |
50sheet/min |
Max. printing size |
1200×2000mm |
Max. sheet size |
1200×2200mm |
Min. sheet size |
360×650mm |
Sheet thickness |
3-12mm |
Machine wall thickness |
40mm |
Chromatography accuracy |
±0.5mm |
Main motor power |
11 KW, 380V, 3phases, four lines |
Moving motor power |
0.37Kw, I=1:43, safety clutch, unit moving, 380V, 3phases, four lines |
Ink distributing motor power |
0.75Kw, I=1:43, 380V, 3phases, four lines |
Details:
Functions and features
1) 360 degree electrical phase adjustment, braking motor 0.37Kw, 200 dots coder.
2) pneumatic pump for ink supply.
3) pneumatic single unit lock, and the whole machine general lock.
4) units electrical moving with electromagnetic safety clutch.
5) ink roller pneumatic lifting and automatic ink distribution.
6) pneumatic inking.
7) automatic counting.
8) moving safety alarm.
9) automatic lubricant supply.
10) units movement driven by the printing unit, and the die cutting unit is fixed, which improves the stability of the whole machine.
1) feeding section
1) chain feeding, there are dust-removing brush and paper pressing wheels at the front edge, which make it easy to feeding and can remove dust on the paperboard to improve the quality and definition of the printing.
2) The upper and lower feeding shafts are made of good quality steel, and have tested by dynamic balance. There are two pressing wheels on the upper shaft, they can impress the paperboard edges as well as feeding, which will be helpful for carton stitching.
2)
printing unit
1) on the print unit, mounted terminal box controlling production counting, machine speed and displaying the products quantity.
2) The forme roller has been tested by dynamic balance, which makes it running stably. The printing distance can be adjusted manually, and can lock by itself, adjust arrange is 2-12mm. Also, there are coordinate lines on the forme roller, which makes it easy to paste the forme. And the forme roller can be adjusted in axial direction for 10mm.
3) Adopting 360 degree electrical adjustment, and can adjust during working or while stopping, VFD control. And two adjusting modes: automatic and manual, and during automatic adjusting, the parameters values can be set on the phases meter, then pressing related buttons to make it reach the right position automatically. What’s more, the unit locking cylinders make each unit can return the correction position after separating.
4) Special transmission mode makes the inking even, clear without ink depositing.
5) Pneumatic diaphragm pump supplying ink, and the ink quantity can be adjusted by air pressure, even ink supply, easy clean and saving ink.
6) Inking by rubber roller and anilox roller, and driven directly by the forme roller gear, which ensures the same linear speed.

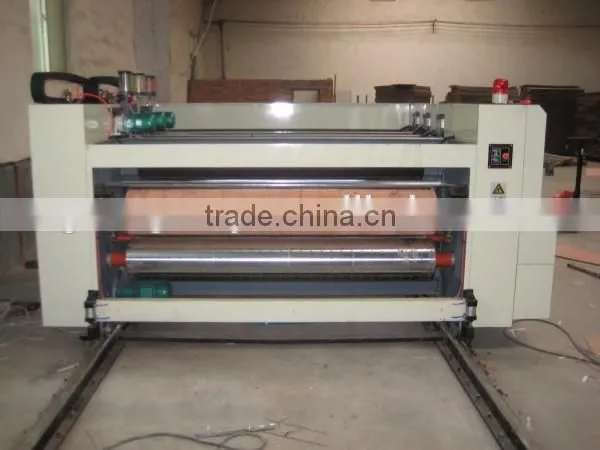

Pringting press roller:
3)
die cutting unit
1) Consisting of die roller and rubber mat roller, there is differential compensator which ensures the die cutting accuracy and keep the same linear speed with the die wheel.
2) The die roller is lower roller, knife 25.4X1.42mm, and the knife wheel shaft can be adjusted for 10mm right and left.
3) Phase adjustment mode is the same as that of printing unit, the rubber mat roller can be moved mechanically for 30mm right and left, and the rubber mat repair system is adopted.
Working Video Available: Feel free to contact us

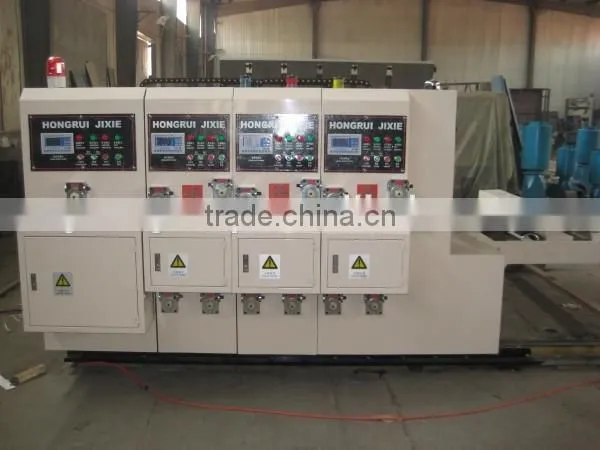

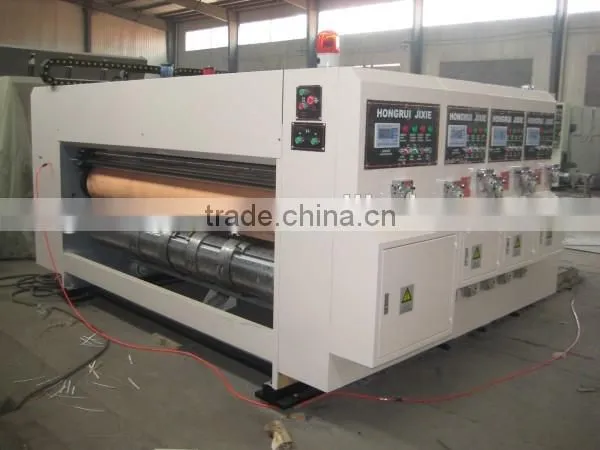

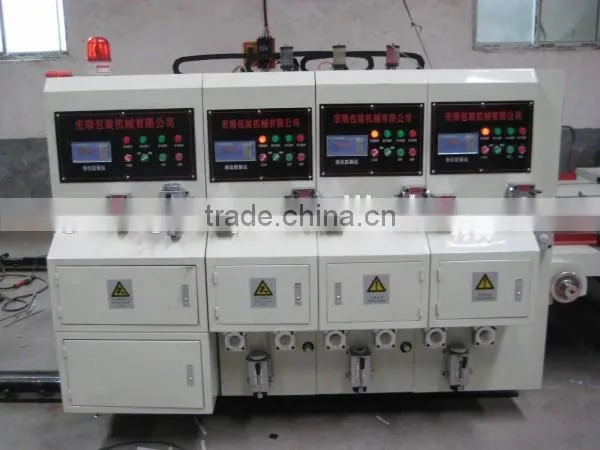

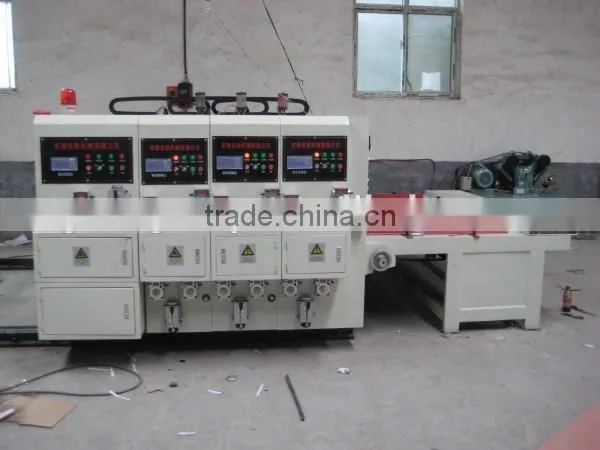

Finished Machine:
Our Warehouse:
We also sell:
Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
