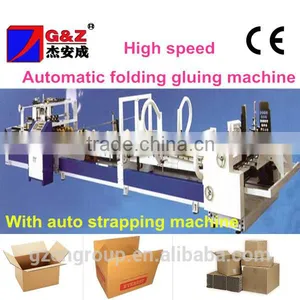

Help CenterAG Fully Automatic Corrugated Floder Gluer Machine
Related Products
-
Semi-automatic Folder GluerUS$ 8,500 - 9,500MOQ: 1 Set -
JD Series Semi Automatic Folder Fluer for Carton BoxNegotiableMOQ: 1 Set
-
High Speed Fully Automatic Folder Gluer for Carton BoxUS$ 108,000 - 123,000MOQ: 1 Set
-
Corrugated Paper Box Folding MachineNegotiableMOQ: 1 Set
-
Semi Automatic Cardboard Box Folding Gluing MachineNegotiableMOQ: 1 Set
Specifications
Supply automatic folding carton box gluing machine1.CE,ISO
nical support
3.good quality
4.good after-sale service
G&Z COMPANY
AG Fully automatic corrugated floder gluer machine
Machine introduce
AG series automatic stitching machine consists of automatic feeding section, gluing folding and stitching section and counting and stacking section. Touch screen input.
Compamy
- suction belt front edge feeding, accurate and reliable;
- high quality electromagnetic clutch and brake system, and this section can be controlled along, easy operation;
- the height of the pressing wheel can be adjusted; suitable for 2-10mm thickness of carton board;
- linking action with folding section, speed is adjusted by VFD, feeding speed: 0-150 sheet/min;
- the positions of the front baffle and the feeding belts can be adjusted;

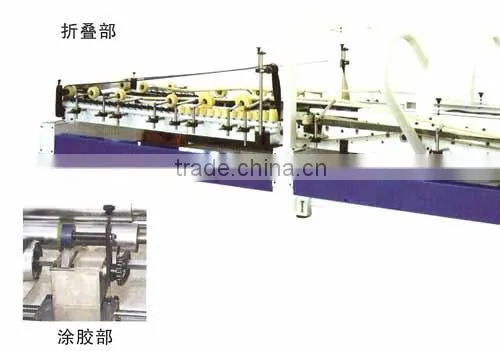

B.Gluing and folding section
1. the main motor is VFD speed adjustment; without noise, flexible speed adjustment, stability;
2. imported transportation belts;
3. stainless steel glue wheel;
4. there are paperboard and creasing correction devices;
5. paperboard specification: max. 1200X2400mm, min. 300X800mm;
6. high advanced edge alignment device, servo motor drive, PLC control, having patent right;
C.Count and ejector
1. PLC and touch screen digital control, can input parameters without stopping the machine; automatic counting and stacking;
2. having stacking ordering function;
3. pneumatic counting and stacking;
4. carton delivered by bottom belt and top synchronous pressing belt; pile height: 8-25 pcs of carton sheets;
5. separate VFD stacking speed adjusting 0-140m/min
D. Other parameters
| type | AG-2400 | AG-2800 |
| MAX size | 1200*2400mm | 1400*2800mm |
| MIN size | 300*800mm | 300*800mm |
| machine size | 3200*11500mm | 3600*12000mm |
| power | 12kw | 12kw |
1. dimension: 11500X3200X1800mm;
2. all the electric components are worldwide famous brands like Schneider, Omron, etc
3. all the belts are imported.

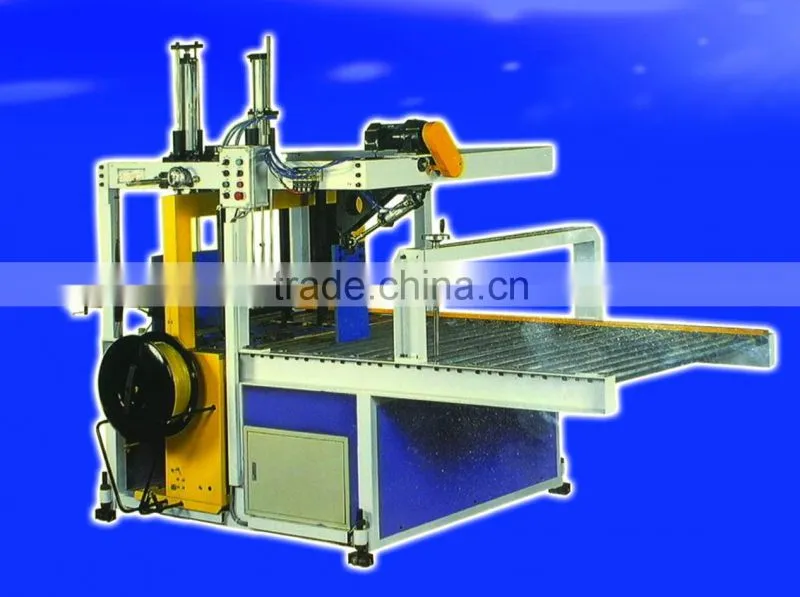

Automatic strapping machine
- Size: L: 2600mm, W: 1950mm, H: 2200mm
- Working table height:850mm
- Strapping speed:5bundles/min (two bundling), 9bundles/min (one bundling)
- PP belt: 5mm (Germany technology)
- Paperboard size: min. 300X800mm, max. 1400X2800mm
- Powder: 380V/50Hz ,2KW
- Air pressure: 0.5MPa*0.3m2/min
Installation, commissioning and training:
the manufacturer can dispatch one of his engineers to do these; and the buyer should bear all his costs like int’l flight tickets, hotel, food, traffic, etc.
