Home > Products > CNC Router--Wood cnc router > Furniture, Instrument, Works of Art and Decoration Machine Cnc
Furniture, Instrument, Works of Art and Decoration Machine Cnc
- tianjin/shanghai
- T/T Credit Card
You May Like
-
Reseller Wanted Cnc Milling Machine
-
Perennial Professional to Provide Wood/stone/metal/glass Cutting Machinery
-
Double Heads, Work Efficent Mould Plastic Cutting Machine
-
Mulit-head,1825 Large Size for Stone Cnc Router
-
1325 Woodworking Cnc Router Cnc Wood Drilling Machine
-
High Precision China Professional Wood Cnc Balsa Wood Cutting Machine
Product Details
| Place of Origin | Shandong, China | Brand Name | senke | |
| Model Number | SKW-1325 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
machine cnc1.spindle aircooling or watercooling,
2.manufactuer supply directly
3.agent wanted
petitive price
machine cnc
Features:
1.Imported italy 9.0kw HSD aircooling spindle, high accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast speed and low noise.
2. Welded structure by thick profiled steel stabilized under high temperature, ensures
minimum distortion, excellent rigidity and powerful strength
3. Imported control system, separated keyboard control, color LCD display add machine
more versatility.4. Auto lubricating system, one touch can finish periodic maintenance easily
Technical parameters:
Discription | Parameter | |||
SKW-1325 | SKW-1530 | SKW-2040 | Option | |
Working Area (X*Y*Zmm) | 1300*2500*230mm | 1500*3000*230mm | 2000*4000*230mm | Sizes customized |
Body structure | Steel tube/ T-Steel tube | |||
X, Y Structure | rack and pinion drive | |||
Z Structure | Ball Screw,linear bearing | |||
ATC style | In Linear | |||
Control system | Syntec/option LNC | |||
Spindle | 9.0kw italy HSD aircooling | |||
Table style | Vacuum table | |||
Dust collection | yes | |||
Motors | Imported japan servo motors | |||
X, Y Resolution | <0.01mm | |||
Max Moving Speed | 32000mm/min | |||
Max Engraving Speed | 20000mm/min | |||
XYZ traveling positioning accuracy | 0.03/300mm | |||
XYZ repositioning accuracy | 0.03mm | |||
Spindle Speed | 0-24,000rpmrpm | |||
Voltage | AC220V/50Hz | |||
Working Dictate | G Code ,HPGL | |||
Interface | USB | |||
Flash memory | 128M(U Disk) | |||
Software Compatability | Type3/Ucancam Artcam | |||
Running Enviroment | Temperature: 045 | |||
parts

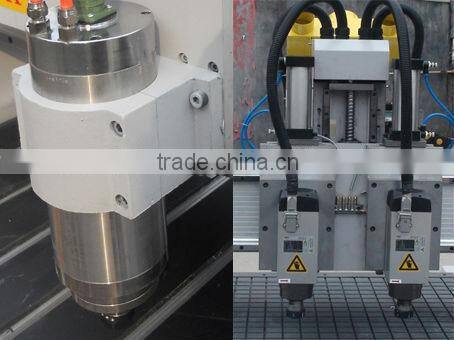

spindle--watercooling /aricooling

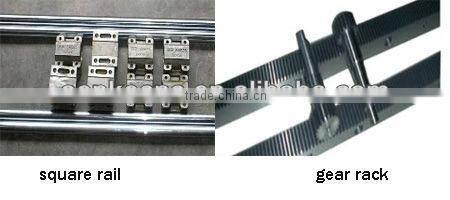

gear rack style--taiwan miko brand

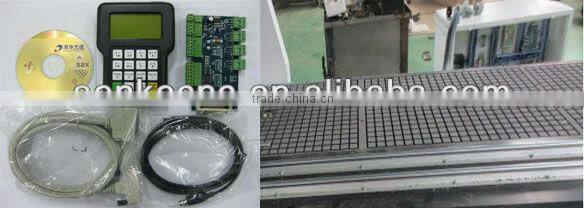

DSP control system and vaccum table
Applicable industrial:
Wood industry,it is a professional wood door making and furniture making machine.
Advertising industry,breastplate,doorplate
Applicable materials:
Wood,organic glass,PVC board,KT board,Acryl ,etc

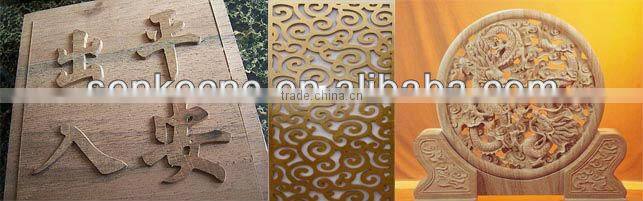

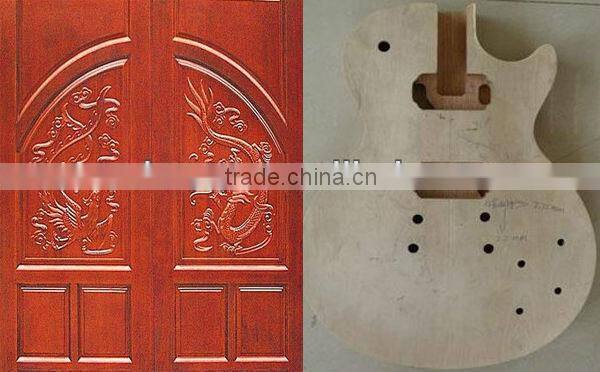

samples
more samples
package and transport
Our other products are available
warranty
