Overview

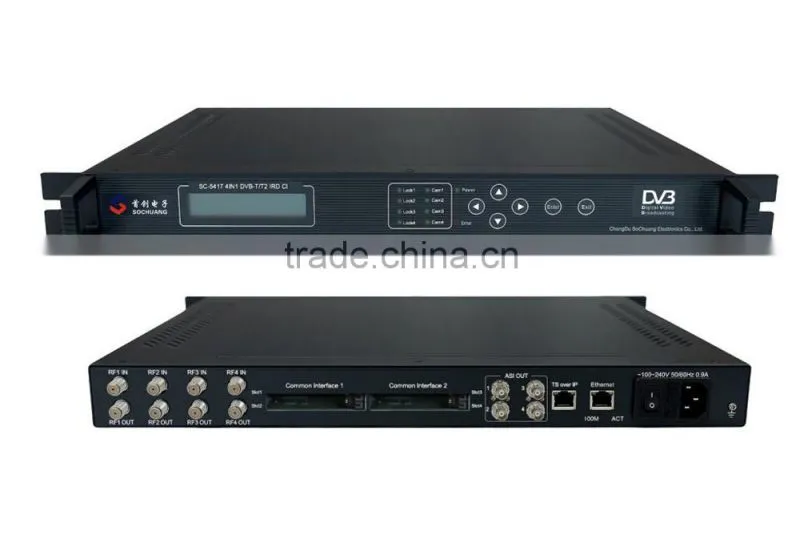

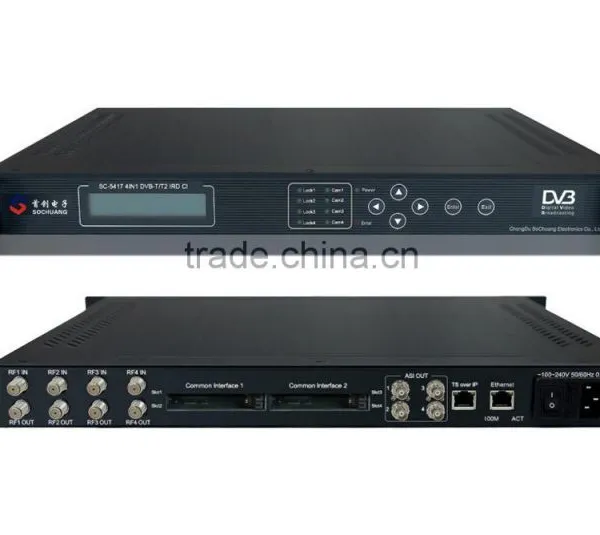

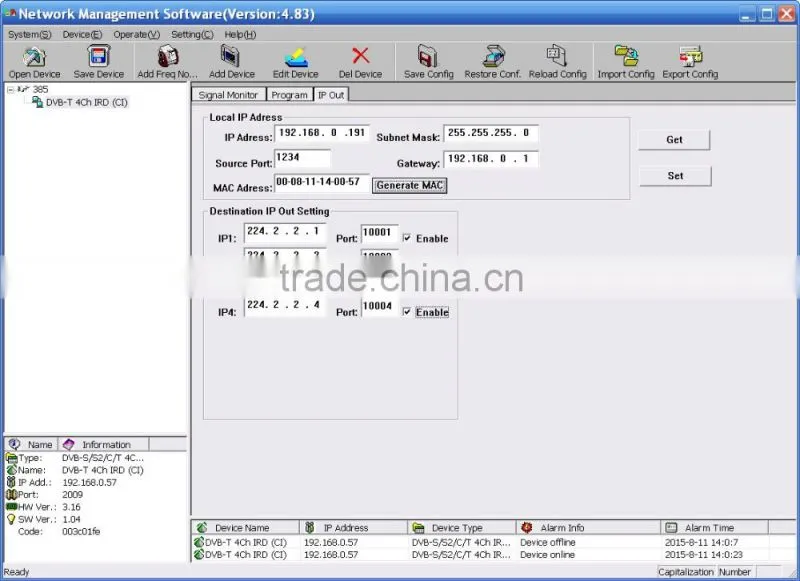

SC-5417 DVB-T/T2 4-channel IRD with CI/DVB-T IP Receiver supports 4×DVB-T/T2 RF input. It has 4×CI interfaces and supports multi-type of CAM cards. It can output 4×ASI and IP (MPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Features
u Support DVB-T/DVB-T2 input
u Support 4×CI slots
u Support ASI/IP (MPTS, TS over UDP) output
u Common interface with 4 slots (PCMCIA) supports multi-type of CAM cards
u 4 slots of PCMCIA module could descramble multi-program stream
u Frequency Range: 30~900Mhz
Technical Specification
Input |
RF (DVB-T/T2) |
4xDVB-T/T2 (30-900MHz),F-head |
Output |
4×ASI |
DVB standard, 4xBNC interface |
IP |
MPTS,TS over UDP,1000M RJ45 port |
|
General Features |
Size |
482mm×410mm×44mm |
Temperature Range |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
