Help CenterSC-4141 HD Encoder Modualtor
Related Products
-
SC-4131 SD QAM Modulator/SD RF Modulator/QAM Modulator With EncoderUS$ 1 - 300MOQ: 1 Unit -
SC-2133 8IN1 IRDUS$ 1 - 500MOQ: 1 Unit
-
SC-4201 MPEG-2 Modulator/DVB-T MPEG-2 Modulator/MPEG-2 Encoder ModulatorUS$ 1 - 550MOQ: 1 Unit
-
SC-5456 DVB T IRDUS$ 360 - 380MOQ: 1 Unit
-
SC-5456 DVB T/T2 IP IRDUS$ 360 - 380MOQ: 1 Unit
Overview

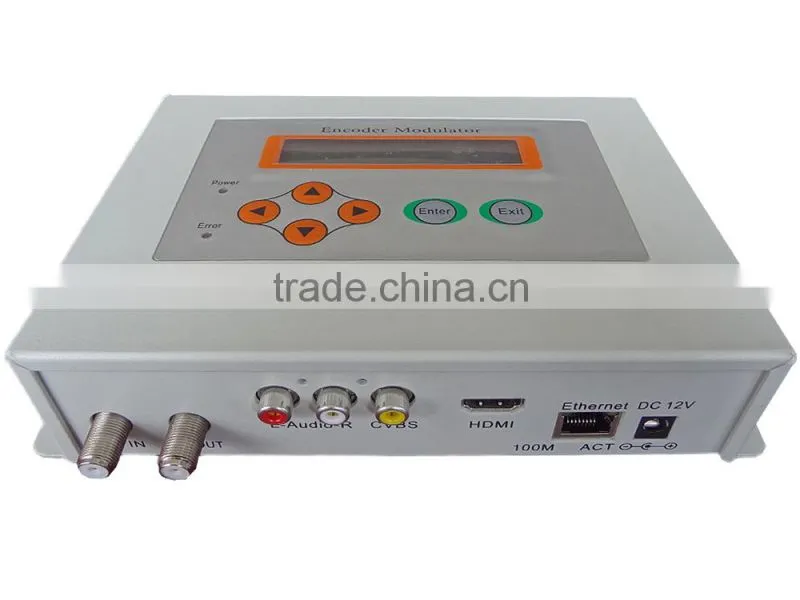

SC-4141 HD Encoder Modulator supports 1×CVBS, 1 pair of unbalanced audio and 1×HDMI input and 1×RF output. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It can be widely used in home entertainment, security and protection monitoring, hotel LCD panels, shopping mall advertising and other similar places.
Feature
- Integrated encoder and modulator
- Wall mounted
- Multi-type of modulation for option (DTMB/DVB-T/DVB-C)

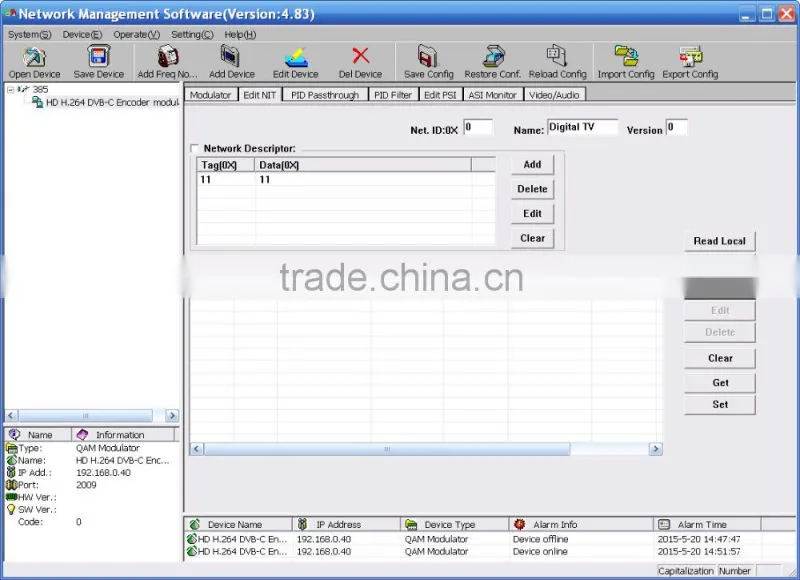

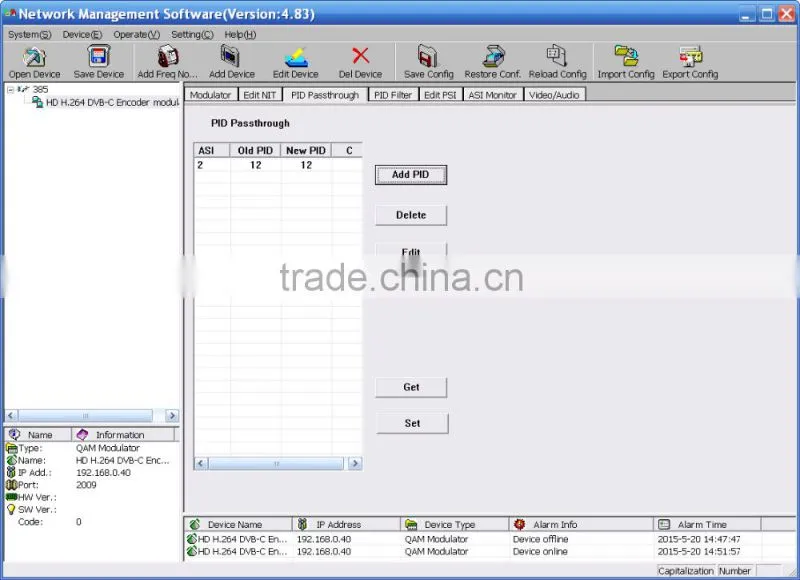

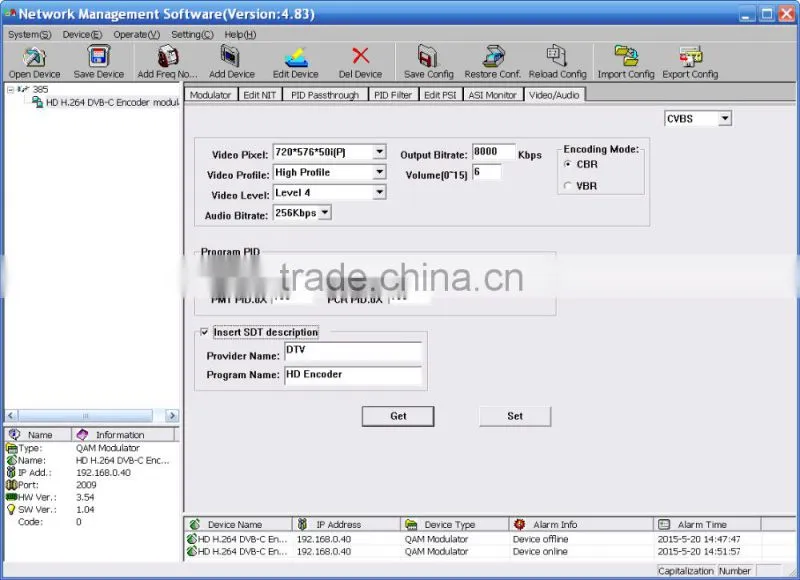

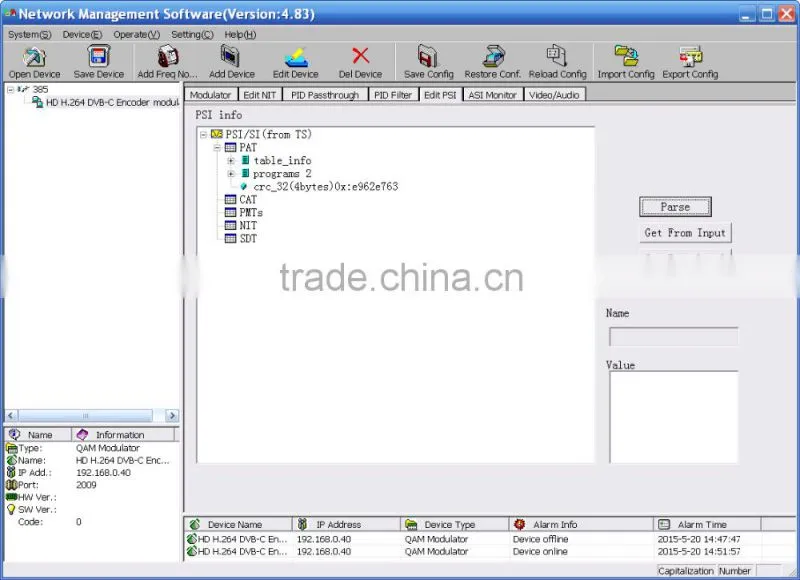

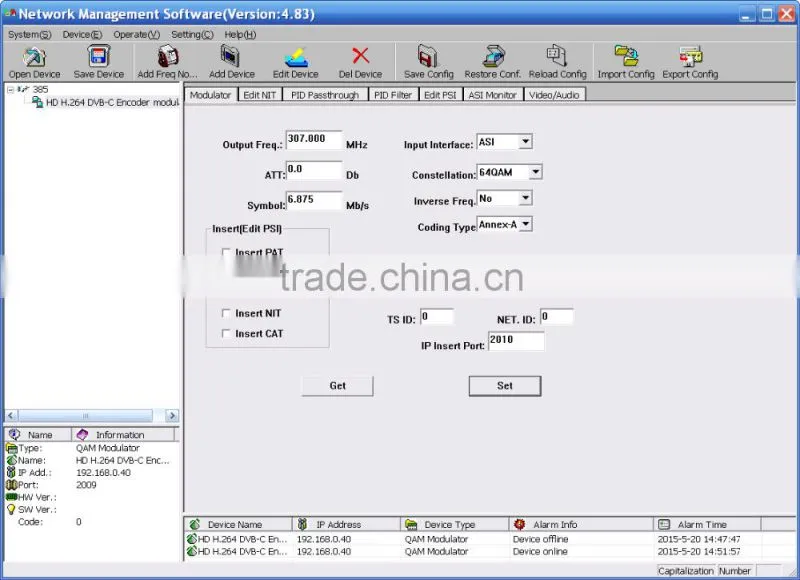

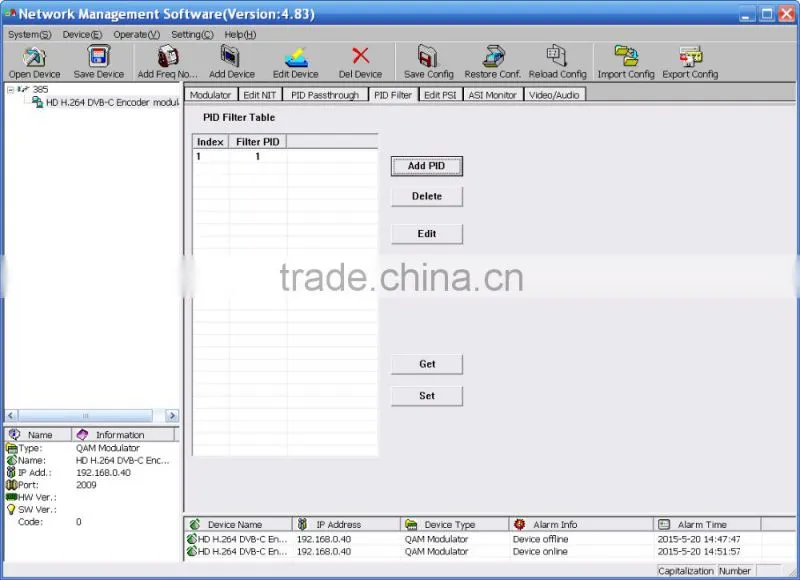

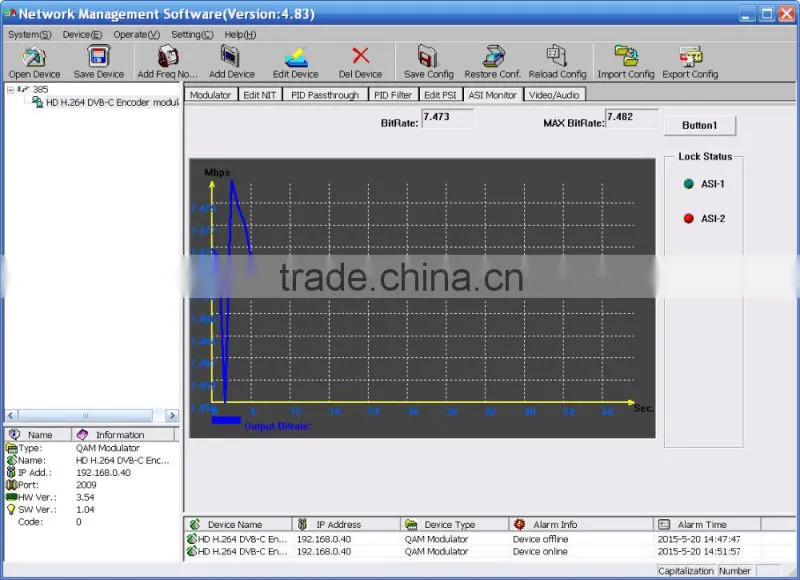

- Keyboard + LCD control and network management
Technical Specification
Video |
HDMI: HDMI 1.3, support 1080p |
CVBS: RCA interface |
Bit Rate:1.0~15Mbps |
Video Code: MPEG-4 AVC/H.264 |
|
Resolution |
HD: 1920×1080-60/50-P/I, 1280×720-60/50P, |
|
SD: 720x576 (PAL), 720x480 (NTSC) | ||
Audio |
Audio Code: MPEG-1 Layer 2 |
Sampling: 32KHz, 44.1KHz, 48KHz |
Bit Rate: 64, 128, 192, 256, 384Kbps | ||
Audio: analog stereo/mono (RCA interface) and HDMI embedded audio | ||
|
DVB-C Modulation |
Standard: DVB-C (J.83A) |
Frequency Range: 47~870Mhz |
Output Level: 85~105dB |
Symbol Rate: 5~9Mbaud/s |
|
MER: ≥40dB |
BER: 0 |
|
Constellation: 16, 32, 64, 128, 256 QAM |
Level Attenuation Range: 0~30dB (0.5dB step) |
|
General Features |
Size |
153mm×238mm×50mm |
Temperature Range |
0~45°C (Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
