TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) Catv Multiplexer

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) Catv Multiplexer photo-1
US$ 300 - 450 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Sochuang
Model Number:
SC-2101
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name Sochuang
Model Number SC-2101



Product Description

 Overview:

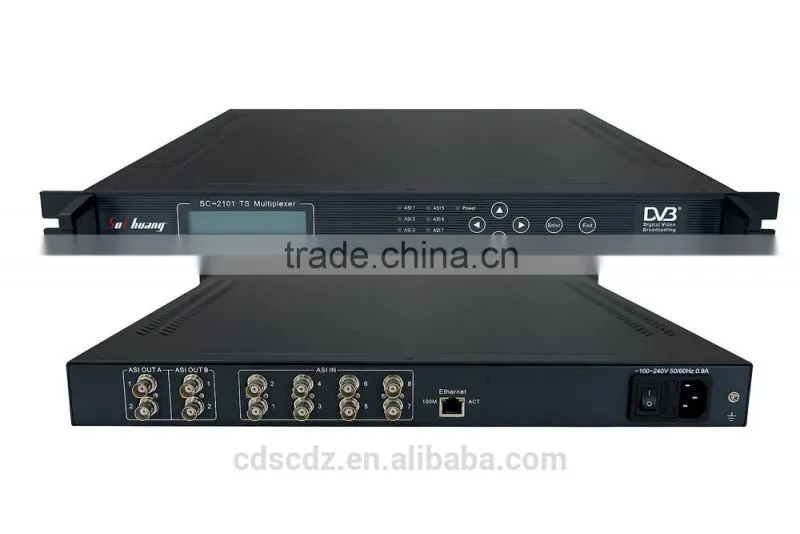

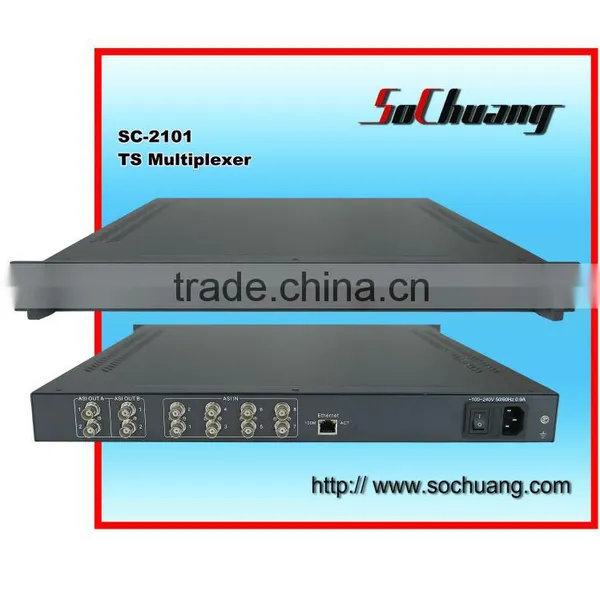

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer



TS multiplexer is a digital broadcasting TV device. It  makes multiplexing 8 channel ASI input and output one or two MPTS stream, it also supports PID filter,passthough and supports inserting private IP TS stream.

Features:

. Compliance with ISO13818 and EN300 468 standards;

. Support IP data injection;

. Support program sorting;

. Generate SPI / SI information;

. Support PCR correction and PID auto re-mapping;

. 8M bytes caches, anti-burst stream;

. Support PSI editing;

. Each channel support up to 128 PID;

. Alarm function;

. Support cascading devices;

. LCD display, easy and flexible to operate;

. High reliability design, stability.



Technical Specification:

Input

ASI

8 BNC

Packet Format

188/204,Automatic detection

Re-multiplexing

MPEG-2/H.264 stream re-multiplexing

PID Passthrough

PID Filter

PCR Correction

PSI/SI Edit

Control

NMS(Ethernet Port,RJ-45), Keyboard+LCD

Backplane Bandwidth

800mbps

Output

ASI

4 BNC (two separate MPTS)

ASI Monitor

Program quantity, bit-rate, lock status

PID

PID Range

0000-1FFF

arbitrary PID VPN

Can realize an arbitrary PID VPN and mapping

Max PID/channel

128

General Features

Size

44mm*482mm*410mm

Environment

0~45(Operating);-20~80(Storage)

Power

100-240VAC±10%,50Hz,25W

 Network management:

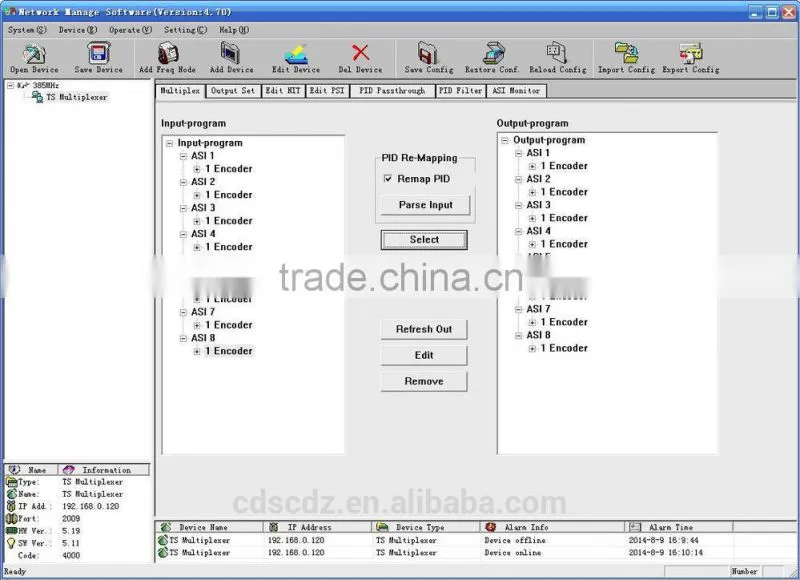

P1: Multiplexer:

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer

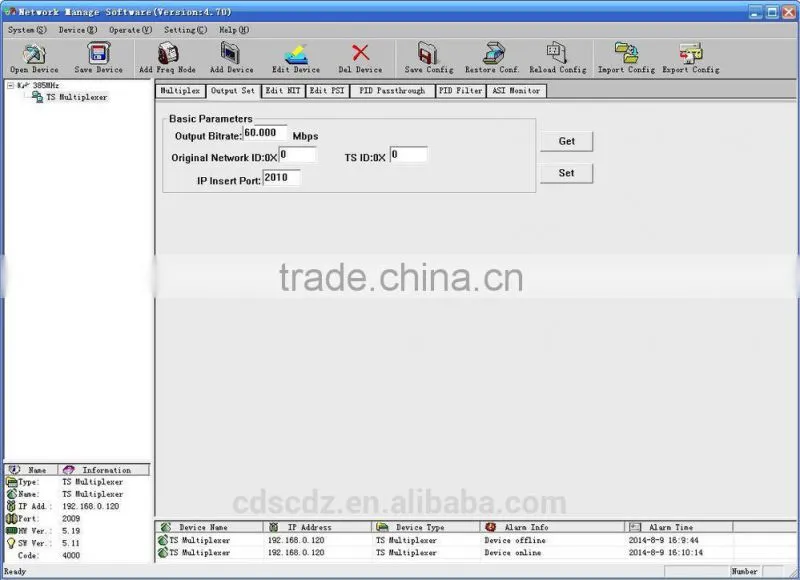

P2: Output setting:

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer

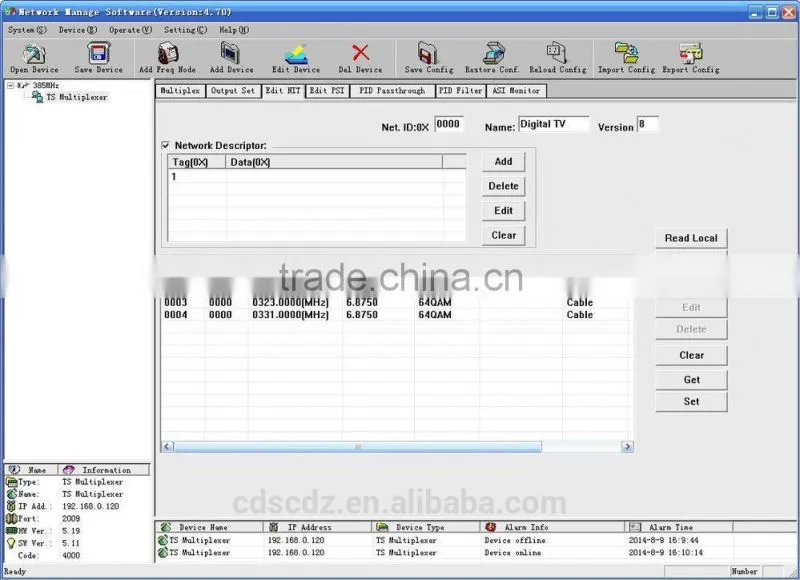

P3: Edit NIT:

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer

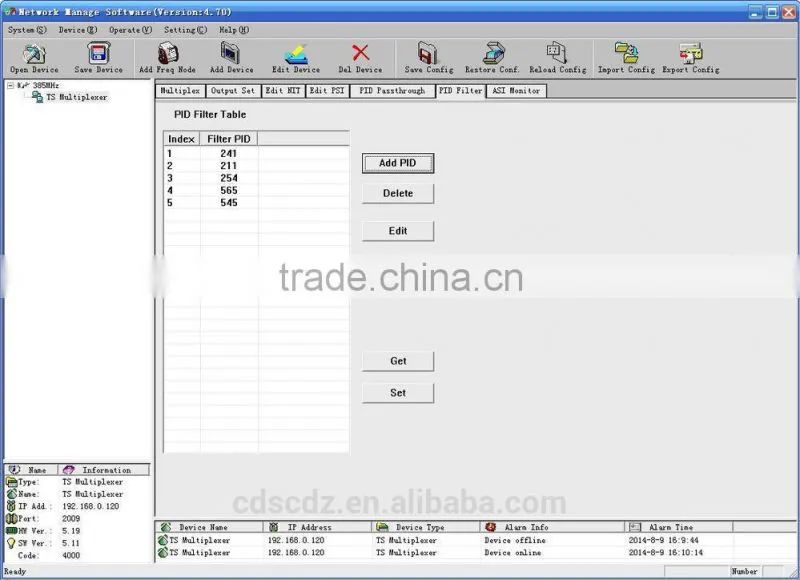

P4: PID Filter

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer

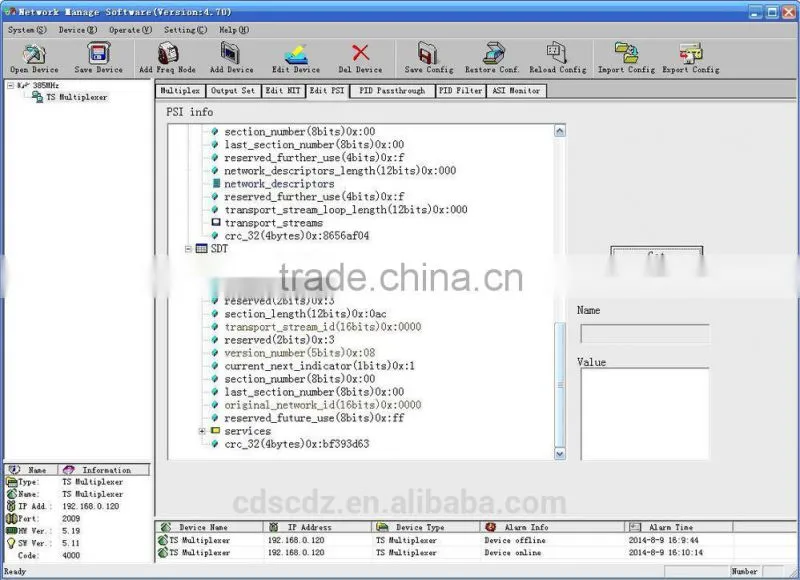

P5: Edit PSI:

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer

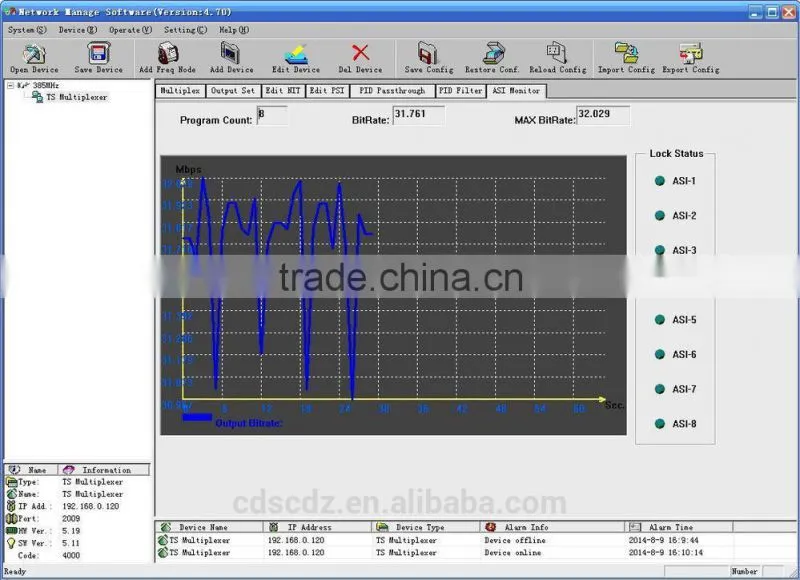

P6: Monitor

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer

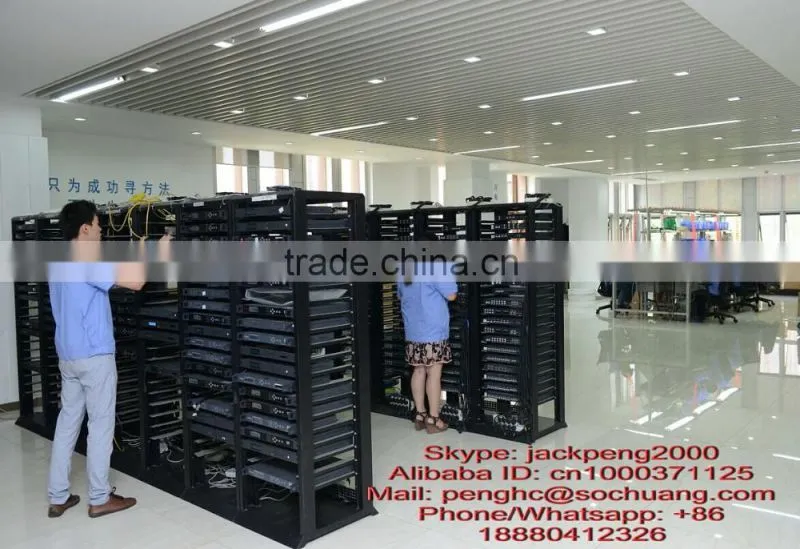

Manufacturer

TS Multiplexer ( 8 ASI IN and 2 ASI OUT ) catv multiplexer

Packaging & Shipping







Our Services

 3 years warranty, life time maintenance, techincal support, OEM.
