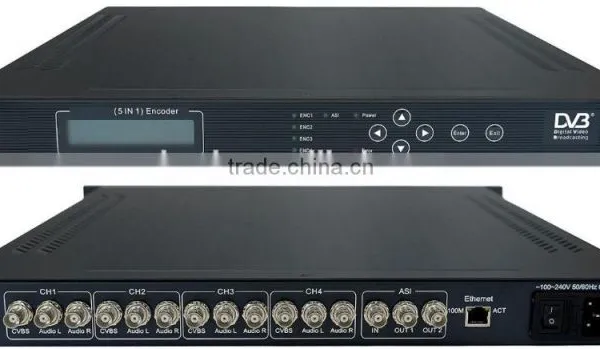

MPEG-2 4IN1 AV encoder(4AV+ASI in,ASI out)
4IN1 MPEG-2 ASI Encoder
Overview

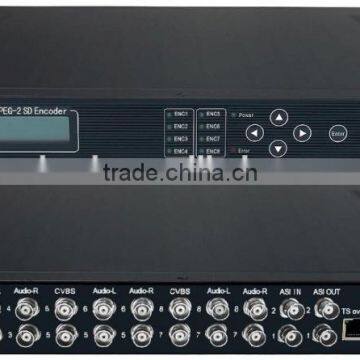

4IN1 MPEG-2 ASI Encoder supports SD MPEG-2 video and MPEG-1 audio encoding. It has 4×CVBS video, 4 pairs of unbalanced audio and 1×ASI (BNC (MUX)) input interfaces, and can multiplex the input (TS) to generate DVB transport stream (TS/ASI) output. It suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specification
Input | ASI | TS, DVB standard (multiplexer), BNC interface | |
Video | 4×CVBS, BNC interface | ||
Audio | 4 pairs of unbalanced audio, BNC interface | ||
Video | Standard | comply with CCIR601 standard, support 1/2D1, 2/3D1, 3/4D1 | |
Encoding | ISO13818 (MPEG-2) MPEG-2 coding adopt MP@ML (4:2:0) MPEG-2 Adaptive Field Frame (AFF) MPEG-2 Field-Based (FB) | ||
rate control | CBR/VBR | ||
Format | PAL,NTSC | ||
Bitrate | 1.0~15Mbps continuously adjustable per channel | ||
Audio | Sampling | 32KHz, 44.1KHz, 48KHz | |
bitrate | 64, 128, 192, 256, 384Kbps | ||
Property | comply with ISO11172,MPEG-1 Layer2, 1×stereo or dual-channel | ||
Output | 2×ASI | DVB standard, BNC interface | |
Total Bitrate | 1-80mbps | ||
Edit | PID value, program name,program number | ||
Control | NMS (Ethernet Port), Keyboard + LCD | ||
General Features | Size | 482mm×280mm×44mm | |
Temperature | 0~45°C (Operation); -20~80°C (Storage) | ||
Power | 220VAC (±10%), 50Hz, 25W | ||
Order Guide
1103 | MPEG-2 4 Channels Encoder(4AV+ASI in,ASI out) |
1808 | MPEG-2 8 Channels encoder(8AV+ASI in,ASI+IP out) |
Network management Software

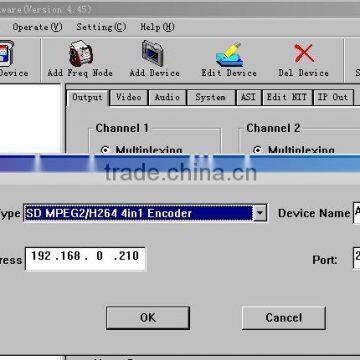

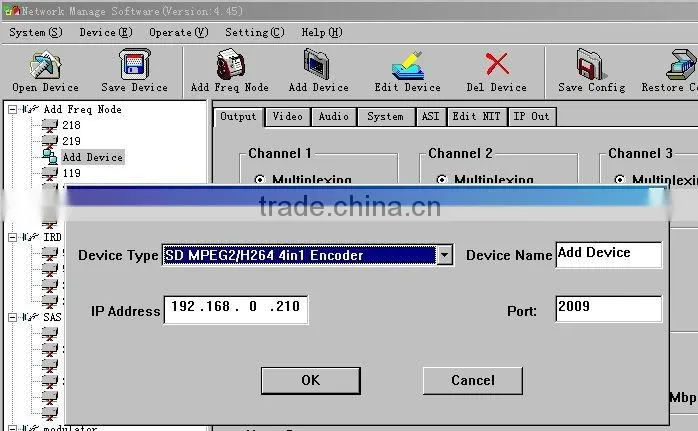

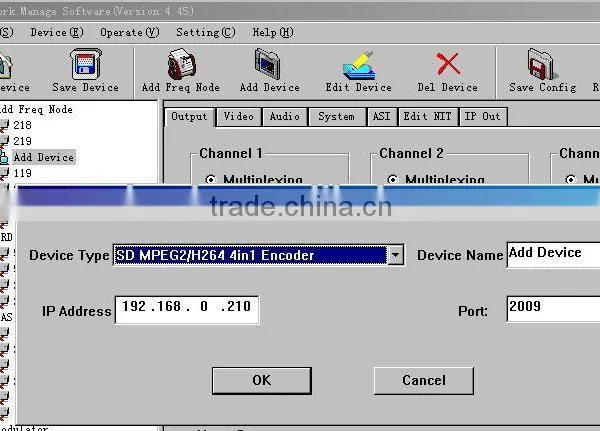

Device type:

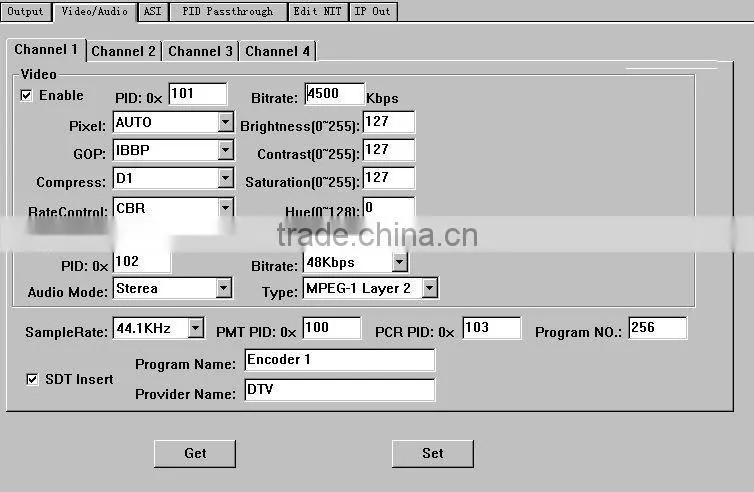

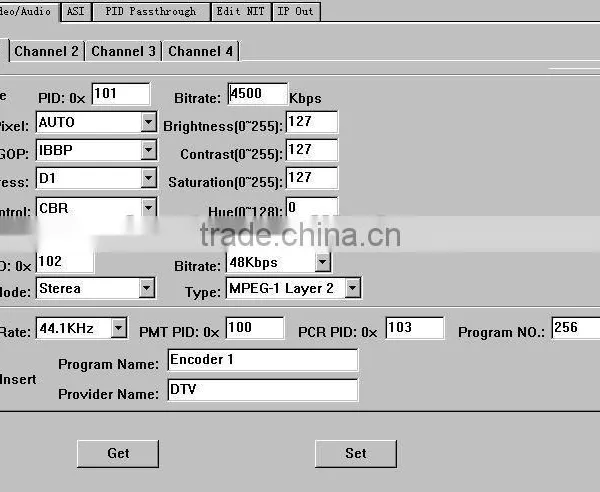

video audio setting:

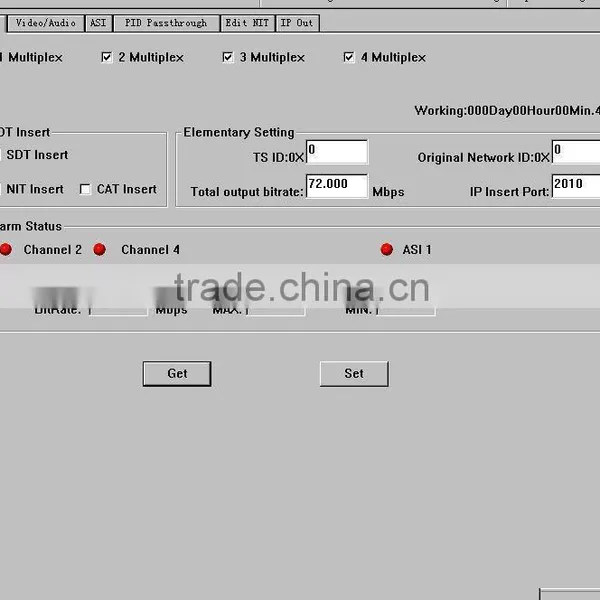

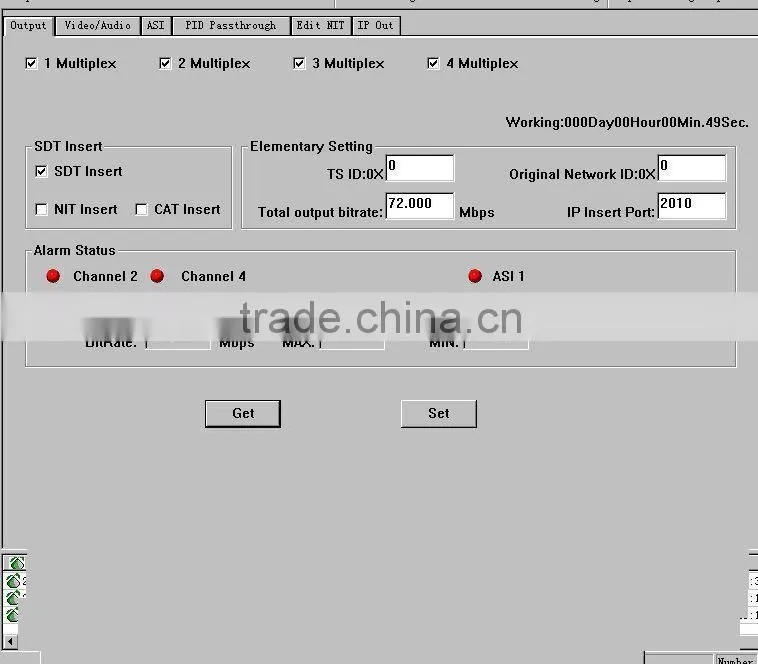

multiplexer output setting:

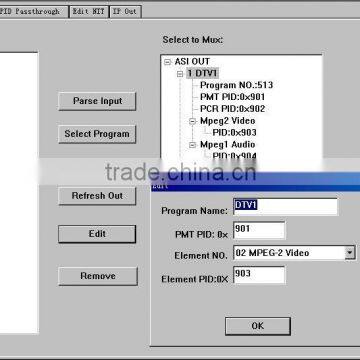

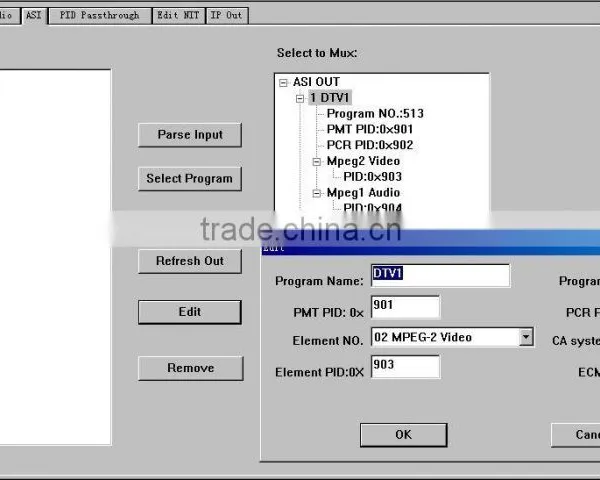

ASI input multiplexer:

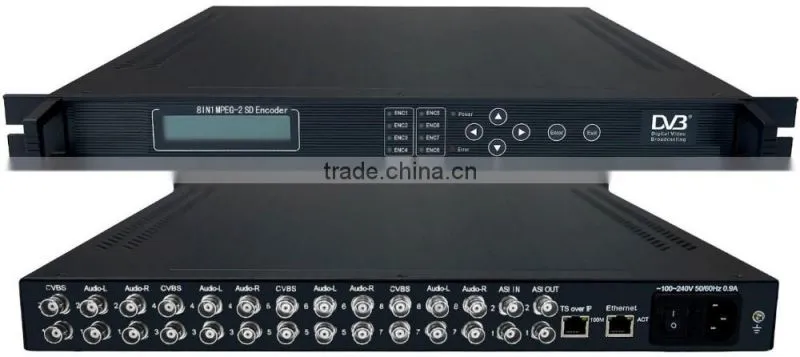

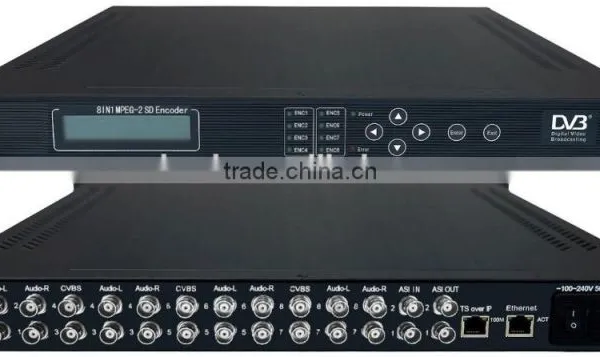

8in1 sd mpeg-2 encoder:

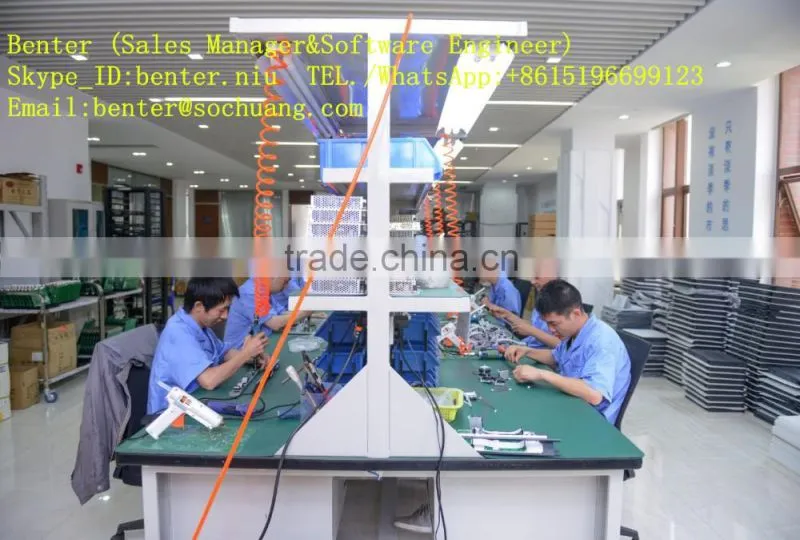

Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
