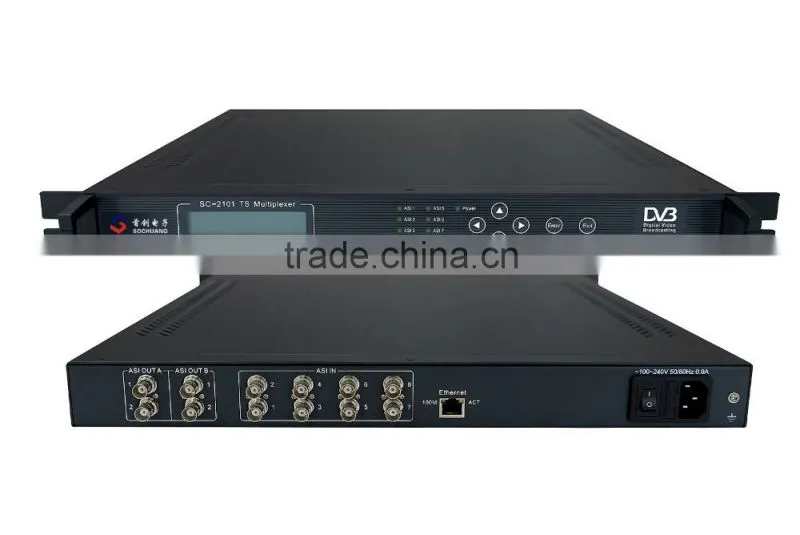

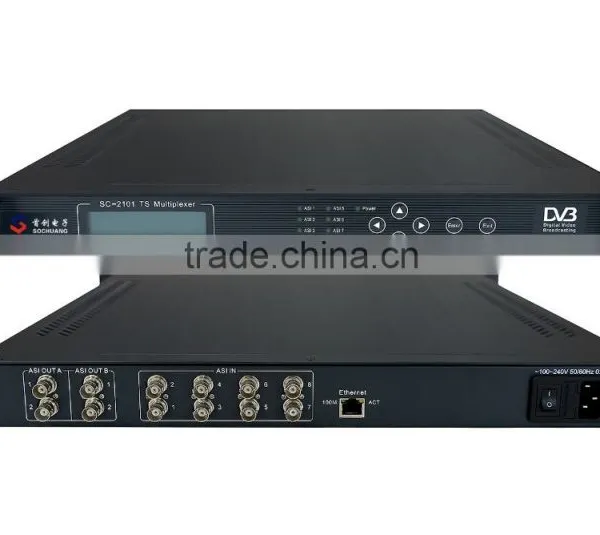

SC-2101 TS ASI Multiplexer DVB
Overview
TS/ASI multiplexer (enthernet multiplexer) is a digital broadcasting TV system TS stream re-multiplexer. TS multiplexer compress, encode and multiplex on head-end to gain a number of single program or multi-program transport stream according to user needs, and to synthesize one channel transport stream, and can be inserted in the output stream EPG (Electronic Program Guide) , CA (Conditional Access), as well as data broadcasting etc. It can support at most 8 channel input transport stream to reuse, supports serial ASI interface, input transport stream bit rate is 270Mbps (highest) , four output channels, output bit rate can reach 160Mbps. By equipment auxiliary data input channel, SI Table data generated on external SI (Service Information) server can be inserted with output bit stream in real time to achieve the EPG and data broadcasting value-added services. Its volume is IU computer case. It can completely off-line set and run by the front panel LCD display.
Features
. Compliance with ISO13818 and EN300 468 standards;
. Support IP data injection;

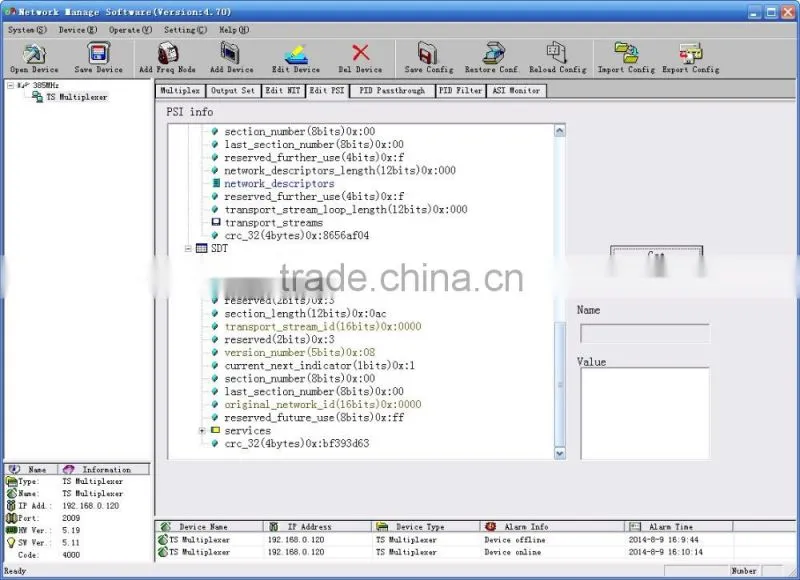

. Support PSI editing;
. Support PCR correction and PID re-mapping;
. 8M bytes caches, anti-burst stream;
. Support PSI editing functions;
. Each channel can choose 128 PID;
. Can insert data, reuse and transmission a variety of data;
. Alarm function;
. Support cascading between multiple devices;

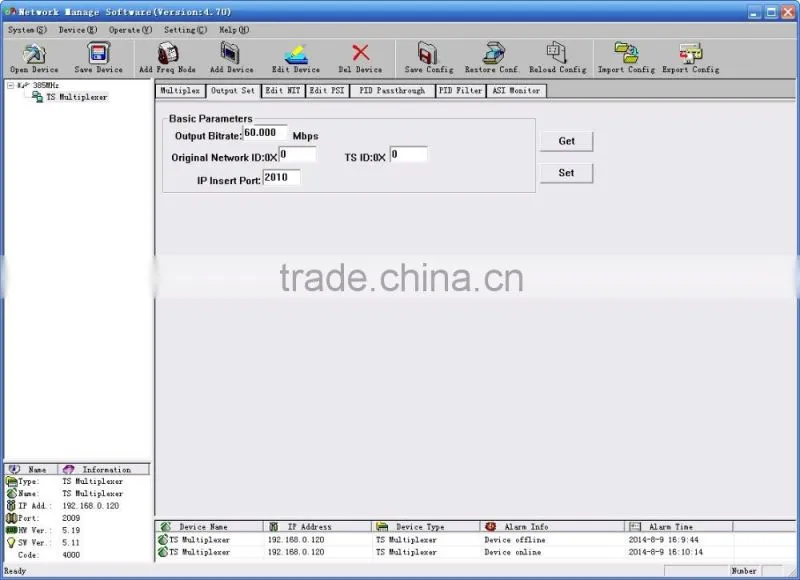

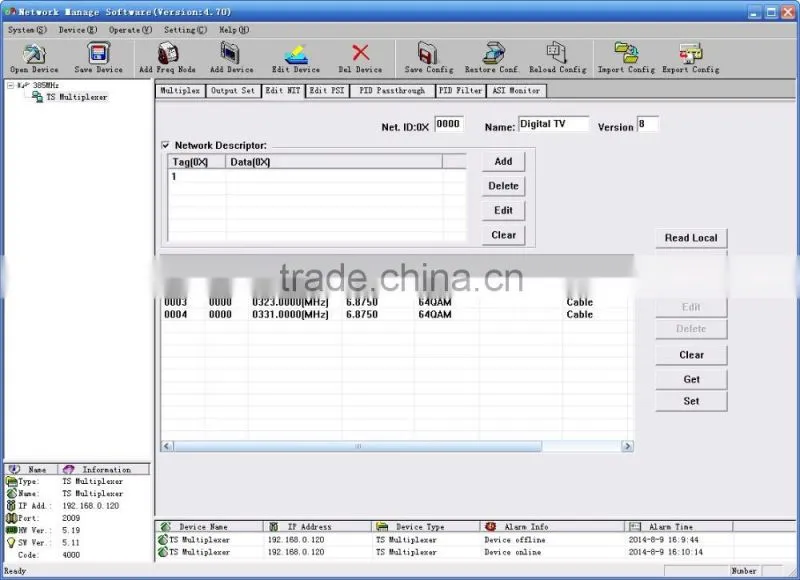

. Enables centralized network management, support network remote upgrade feature;
. LCD display in Chinese and English, easy and flexible to operate;
. High reliability design, stable operation.
. 1U Rack;
. MPEG-SI Tables insertion;
. PCR Re-stamping;
Technical Specification
Input | ASI | 8×BNC interface |
Packet Format | 188/204 automatic detection | |
Output | ASI | one multiplexing output (4×ASI, 3 as mirror) |
Bandwidth | max 160mbps | |
PID Range | 0000-1FFF | |
Re-Multiplexing | MPEG-2 transport stream re-multiplexing | |

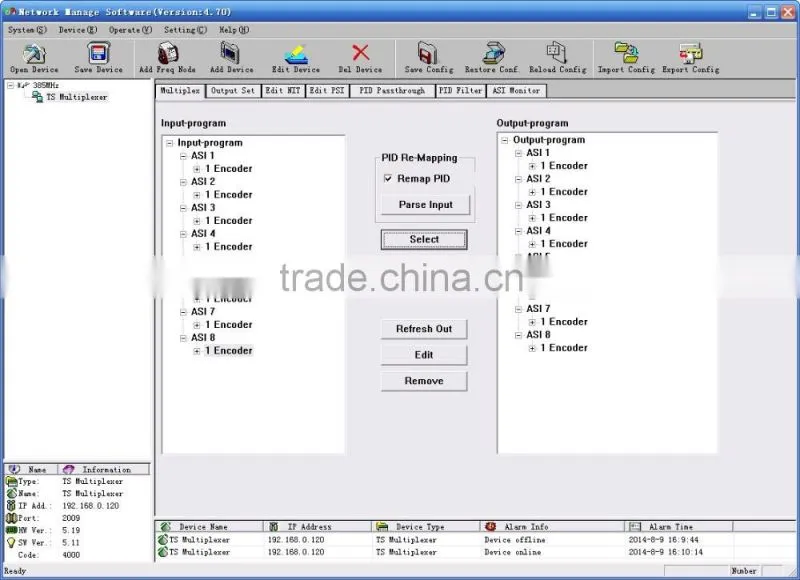

PID re-mapping (auto or manual) | ||
PCR correction | ||
automatically generate PSI/SI tables | ||
Control | network RJ-45, 10/100M | |
Keyboard+LCD | ||
General Features | Size | 410mm×280mm×44mm |
Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W | |
- MOQ: 1 set
- Lead Time: Stock Ready
- Delivery Time: 3-5 working days by express
- Delivery Term: FOB/Express or EXW/Air
- Payment: 100% TT or Western Union
- OEM/ODM: Accept
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
