5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock

5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock thumbnail-1
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock thumbnail-2
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock thumbnail-3
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock thumbnail-4
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock thumbnail-5
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock thumbnail-6

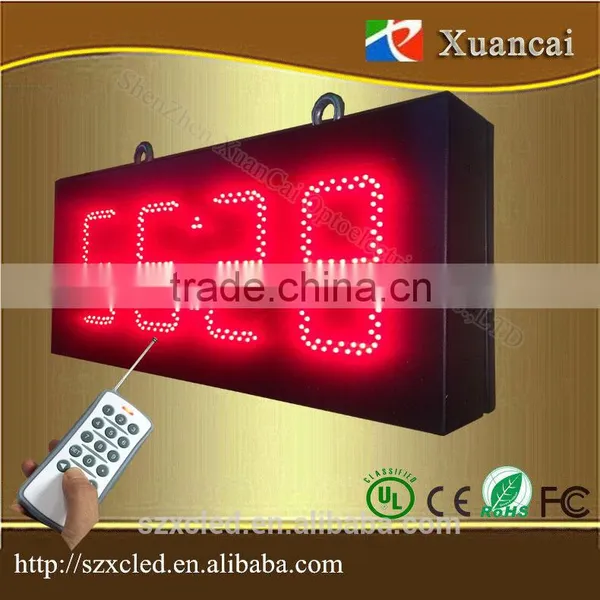

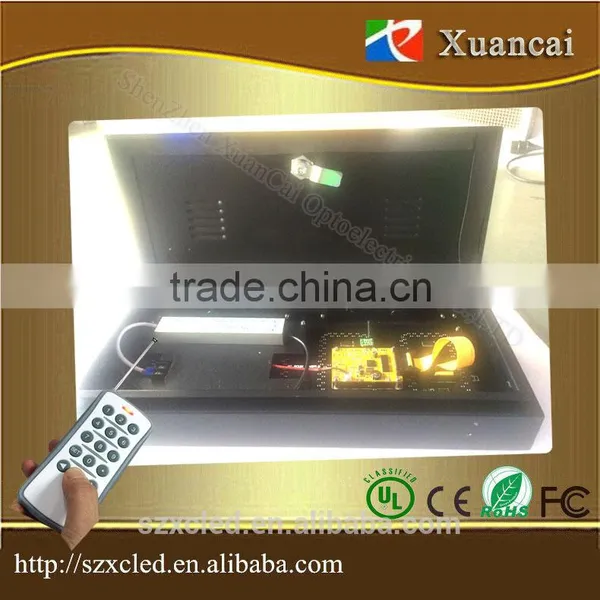

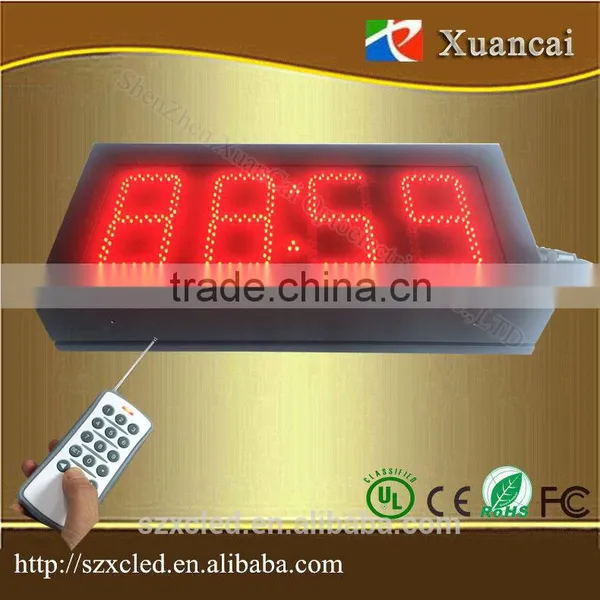

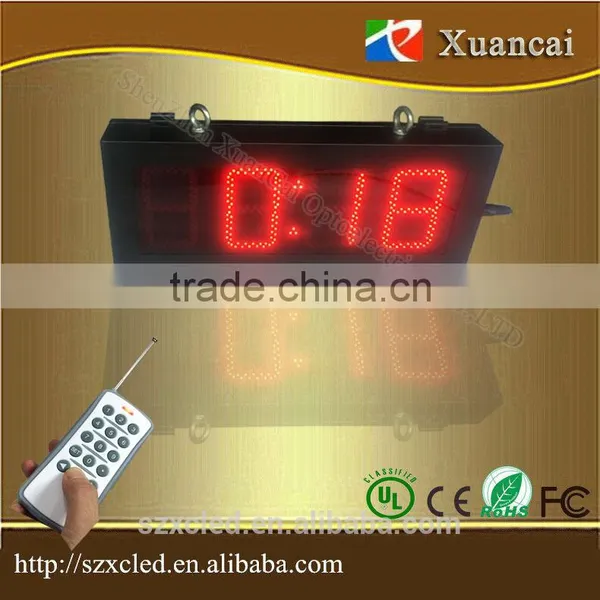

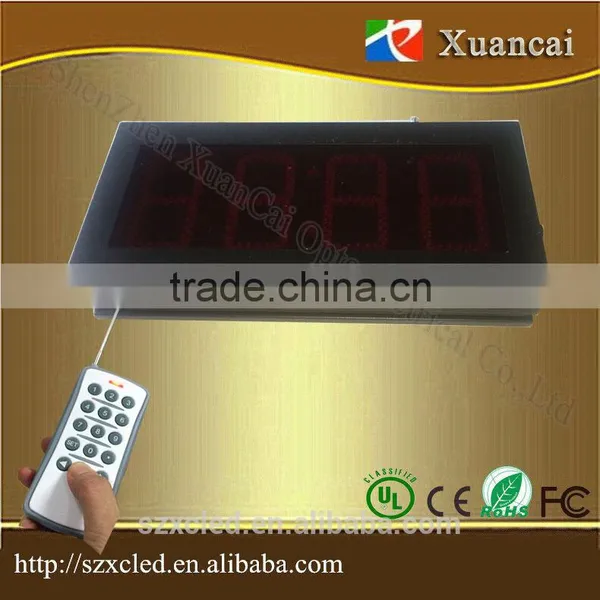

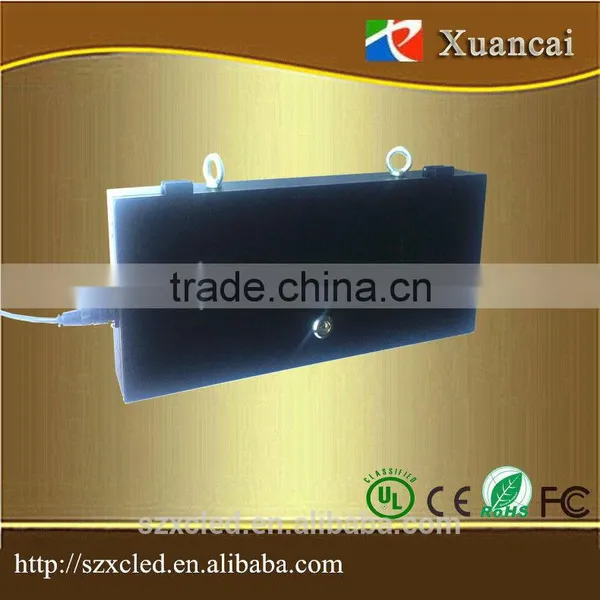

5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock photo-1
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock photo-2
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock photo-3
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock photo-4
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock photo-5
5'' Red Brightness Adjustable LED Digital Timing Clock 7 Segment 5'' Outdoor Digits Time Clock photo-6
US$ 50 - 100 MOQ: 100 Boxes
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XUAN CAI
Model Number:
5 inch
Contact Supplier Request Quote Chat Now
Shenzhen Xuancai Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name XUAN CAI
Model Number 5 inch
Usage Outdoor
Tube Chip Color Red
Display Function Other, number,time,tempreture
Pixels Other
Screen Dimension 38*12.7cm



Product Description

5inch
88:88_HH:MM
Character size:13*7cm
Screen Dimension: 38*12.7 cm
PCB size :420 * 147 mm
Cabinet size:48x21x7cm
NW.: 4.35kg
Output power :12V 20W


LED digit sign series adoptable features:
RF remote control, RS232, TCP/IP...
Indoor/Outdoor
1"/2"/3"/5”/8”/10”/12”/16”/18”/20”/24”/32”...
88:88; 8.8.8.8, 88.88, 888s9, 888s9/10, 88888, 88888....
Red/Yellow/Blue/Green/White
Normal Timer(HH:MM or MM:SS), Date, year, temperature, count down time, gas price.

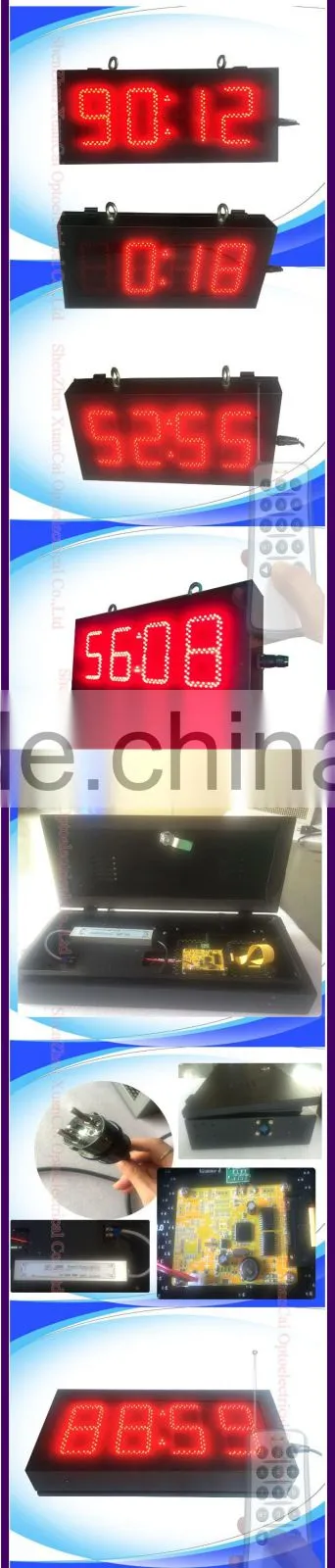

Product photo:

5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock

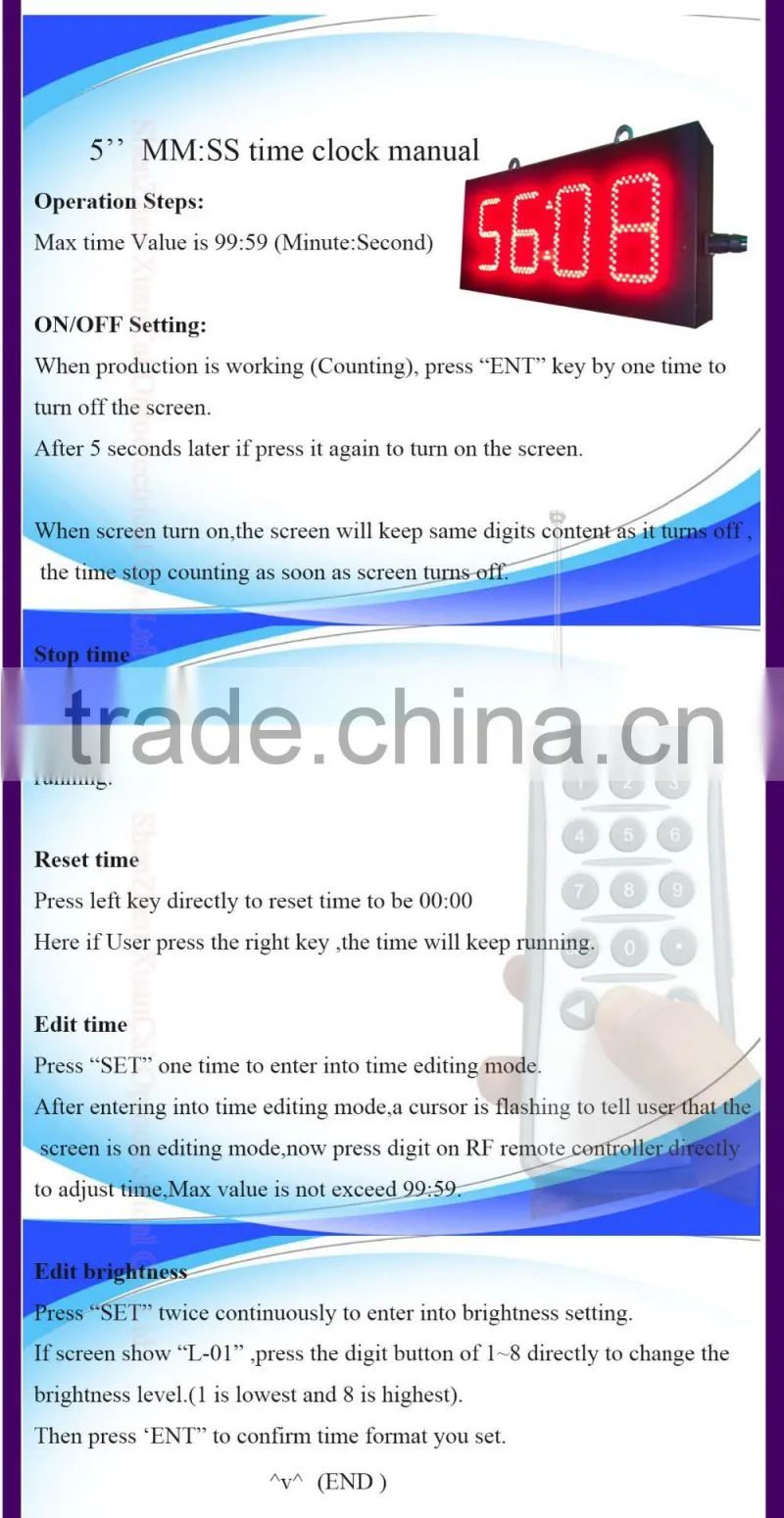

Operation Features:



5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock











1.High grade stainless steel/aluminium/galvanized sheet to your need.

2. Processing: Laser cutting, polishing, painting and assembly;

3. 1:1 fixing template attached for installation reference

4. Water proof and anti-rust for outdoor sign

5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock







Our Services

 5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock

RF Remote control operation:

* Product power on and show the address of screen (A01-99) first, then display the price which was set well.



*Press 12 key to display A-XX ( XX is screen NO.), input the screen number which you want to modify price (two digits), then corresponding screen will flashing. Press 14 key, relative screen enter into editting state, other screen will return back to normal state.



* When screen flashing, press 12 key to set brightness 1-8grades L-X.

Input 14 key to confirm and enter into digital editting.



*Input relative digit or point (10 key is 0, 12 key is point), press 12 can clear current digits. Use left and right key (13 is left, 15 is right) to move cursor position, press 14 to save and ESC.

5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock

Computer download:



Open download software ‘Oil price LED display system V3.1.exe



To check the screen which need to update the price.



Input the new data in corresponding screen. (0-9, point, space), choose the serial port which was connected, then press Send key.

Packaging & Shipping

Carton or wooden box  .one product / each carton.

Size :105*38*13 cm

G.W :10.2 K.G/ pcs


Sample:5-10 working day; Real order: 7-15 working days







5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock



 Company case.





5'' Red brightness adjustable LED digital timing clock 7 segment 5'' outdoor digits time clock



OEM Service

*24 hours prompt direct designer and Manufacturer not merchant and customerized being supported!

* Perfect image and design,good quality and High Cost Performance!

* Nice pre-sale and after-sale service can provide you worry-free shopping!



Specific:

No limitation on Pixel;

No limitation on Pixel Pitch;

No limitation on Size;

No limitation on color;

No limitation on Communication way;

No limitation on Using place,not only the car nor the shop;

No limitation on packing methods,etc.

All is up to you only we can do!!!Showy!cool! Elegant!
